Body Control System Schematics

WARNING: This page is about a different car, the 2008 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

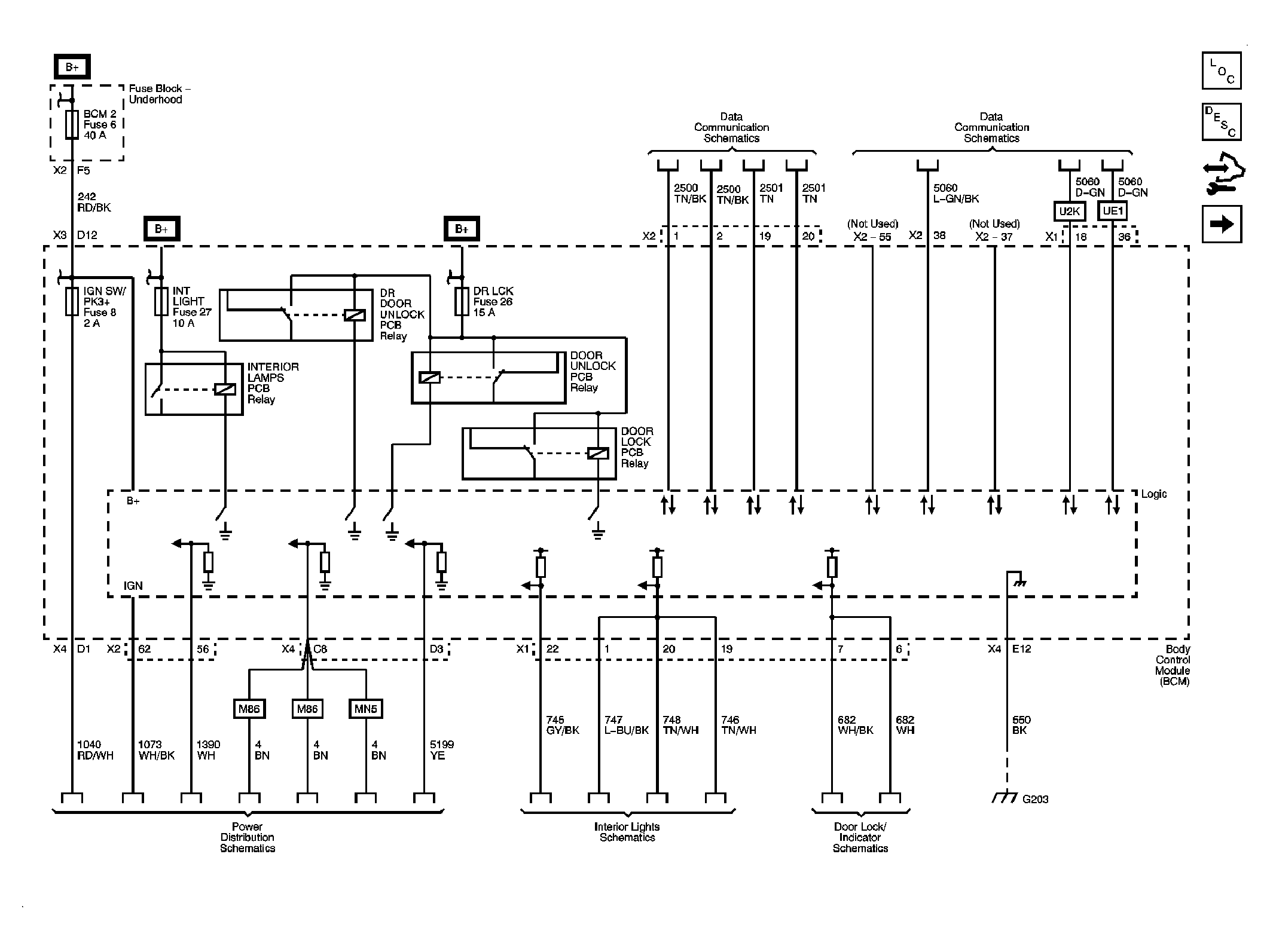

Fig 1: Door Lock Indicators, Power, Ground, Data Link And Engine References - Schematic
GM1887741Courtesy of GENERAL MOTORS CORP.

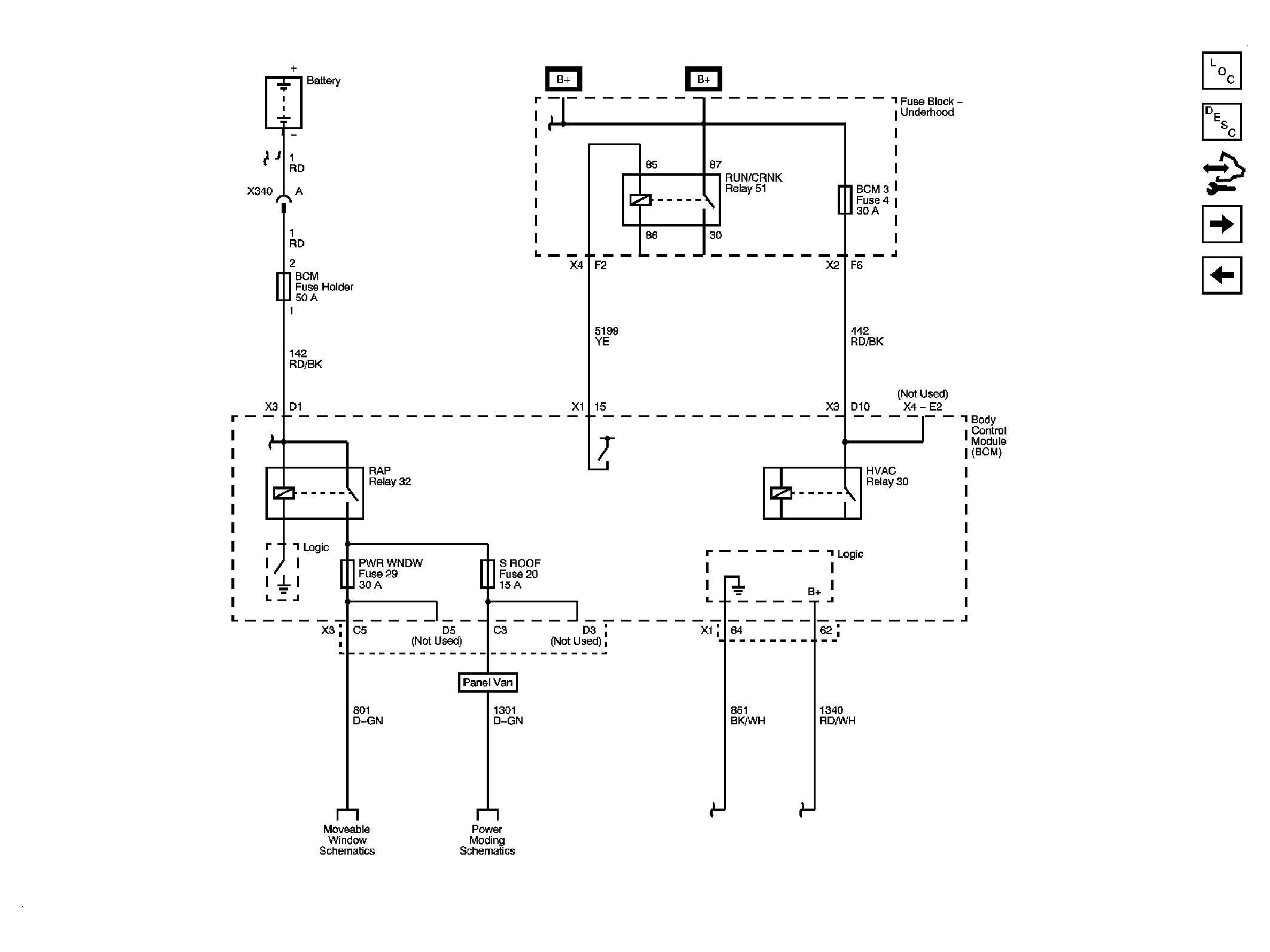

Fig 2: RUN/CRANK, RAP, HVAC Relays, BCM3, PWR Windows, Sunroof Fuses - Schematic
GM1887743Courtesy of GENERAL MOTORS CORP.

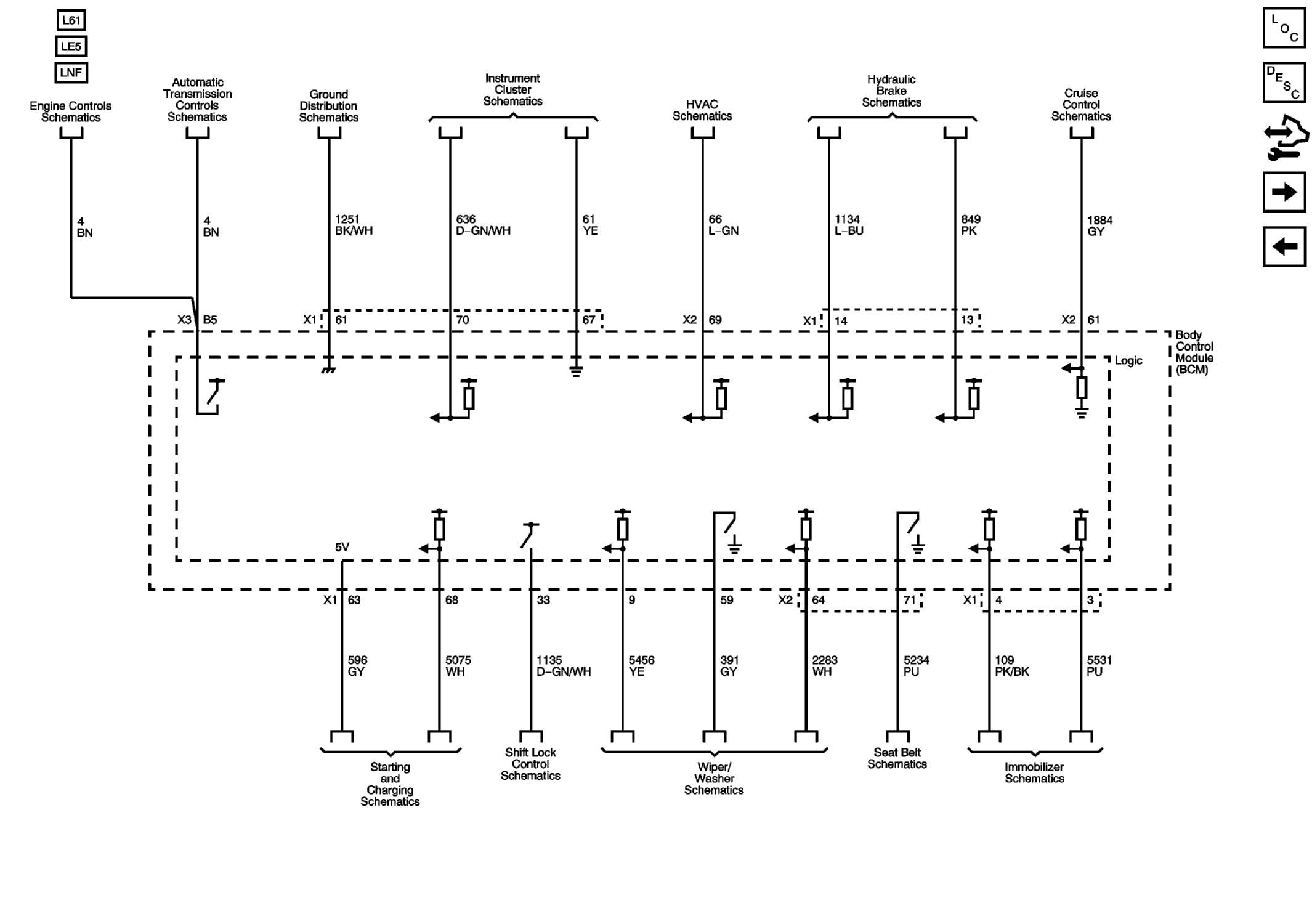

Fig 3: SIR, Shift Lock Control, ABS, Brake Warning, Cruise Control, Keyless Entry, Wiper/Washer, Engine Controls - Schematic
GM1887745Courtesy of GENERAL MOTORS CORP.

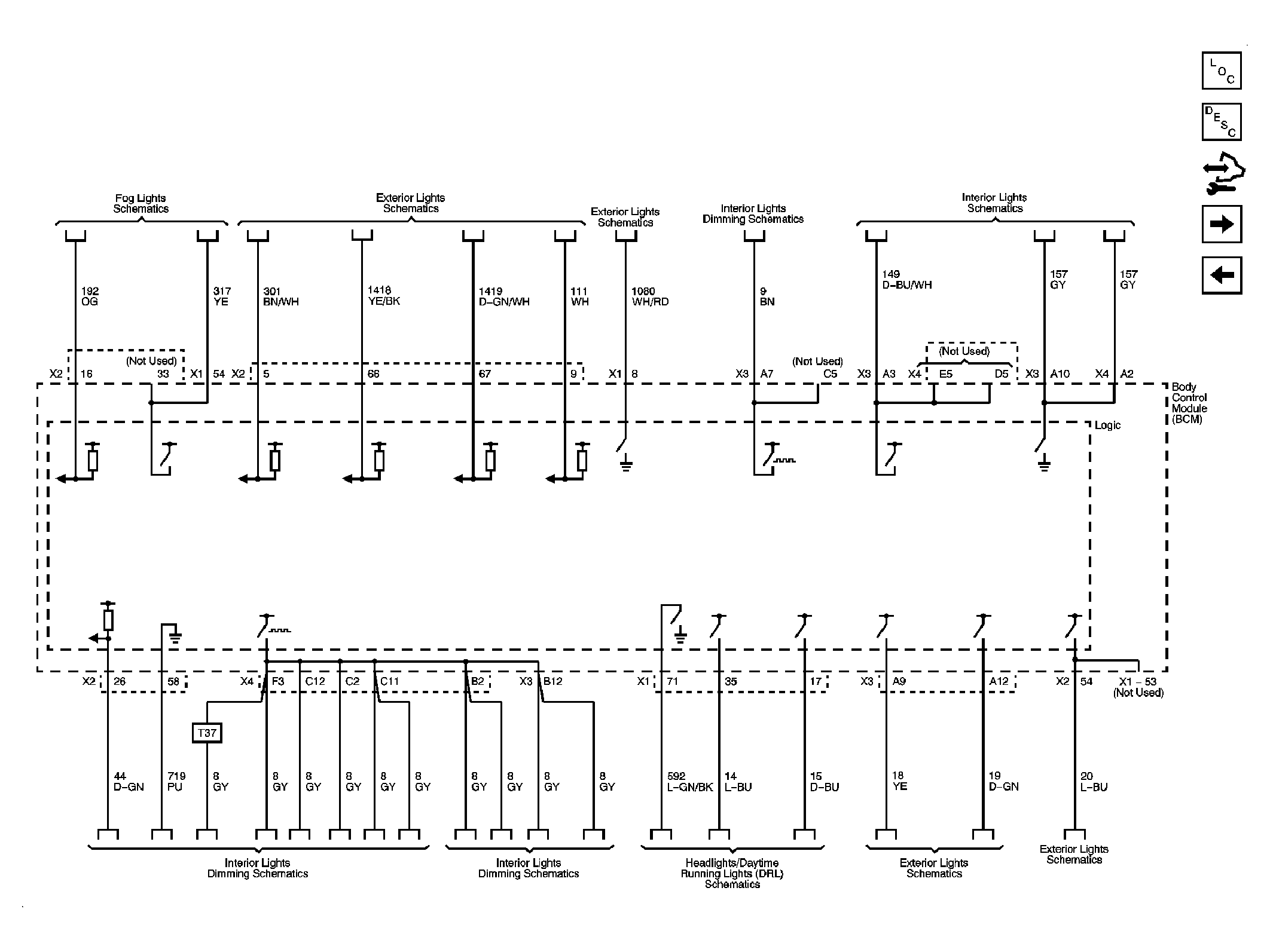

Fig 4: Lighting System References - Schematic
GM1887747Courtesy of GENERAL MOTORS CORP.

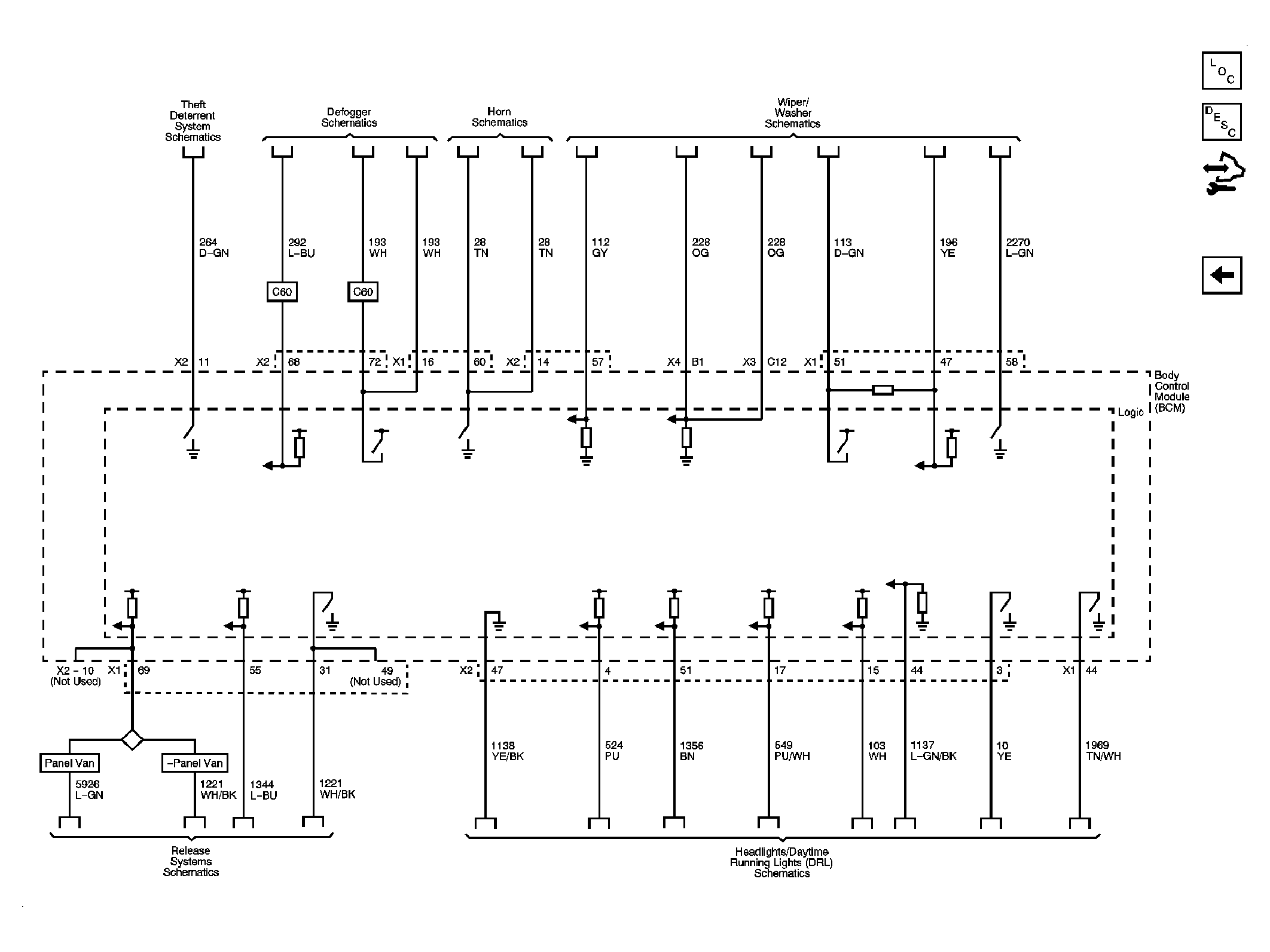

Fig 5: Body Rear End, Defogger, Headlights, DRL, Horns And Wiper/Washer References - Schematic
GM1887749Courtesy of GENERAL MOTORS CORP.
