Circuit Breaker




Component Connector End Views

Circuit Breaker 1 (SEO 9C1/9C3)

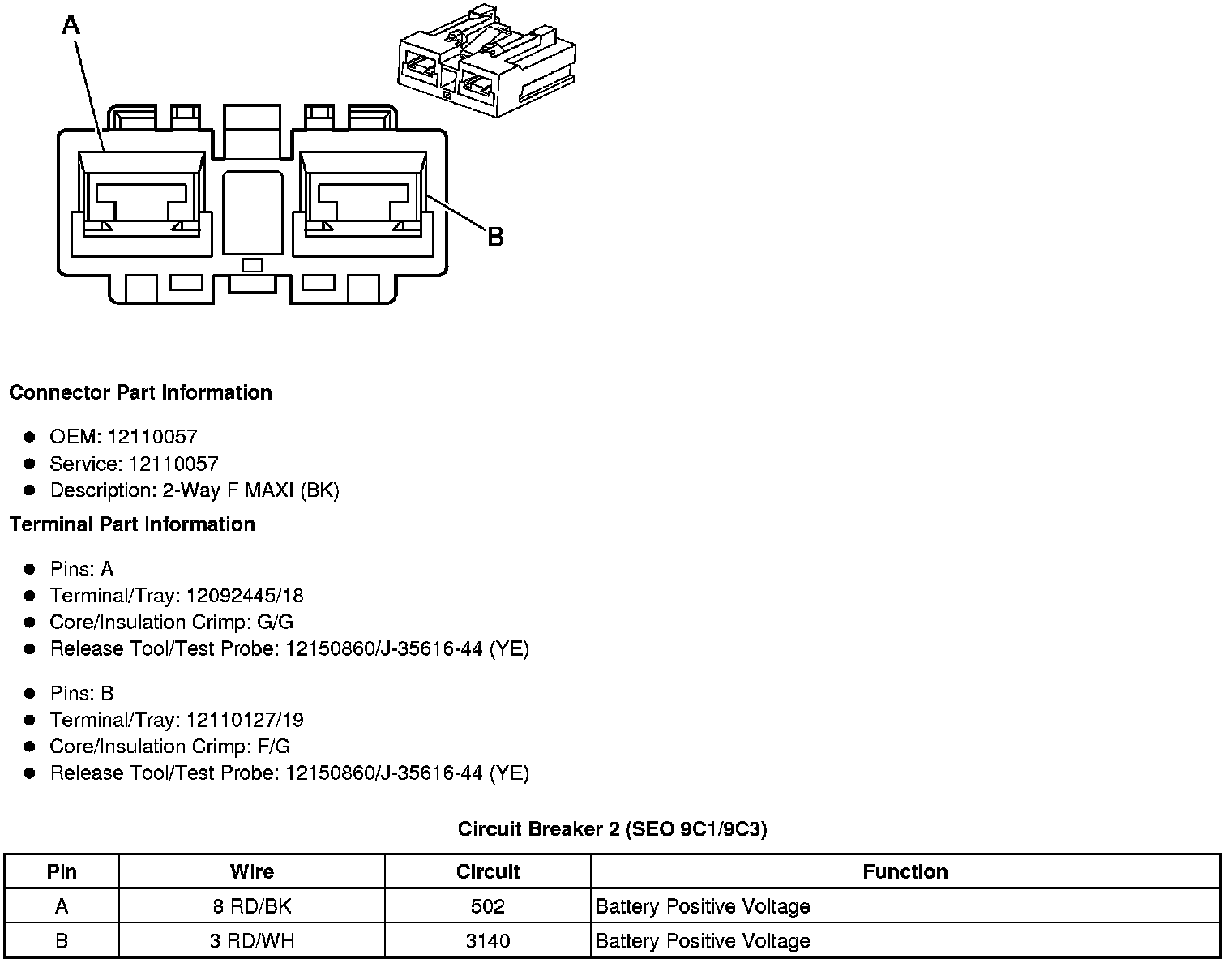

Circuit Breaker 2 (SEO 9C1/9C3)





Circuit Breaker 3 (SEO 9C1/9C3)
