Electronic Brake Control Module




Component Connector End Views

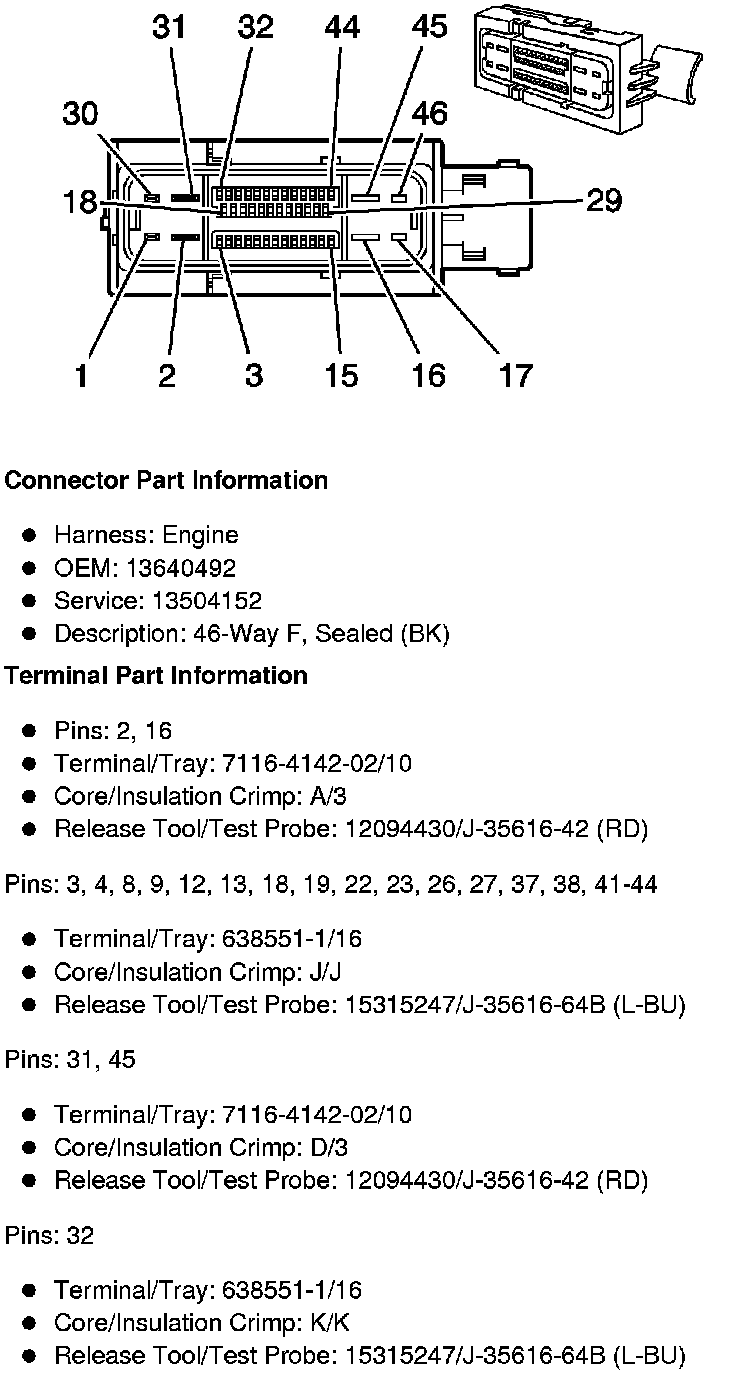

Electronic Brake Control Module (EBCM) (LAT)

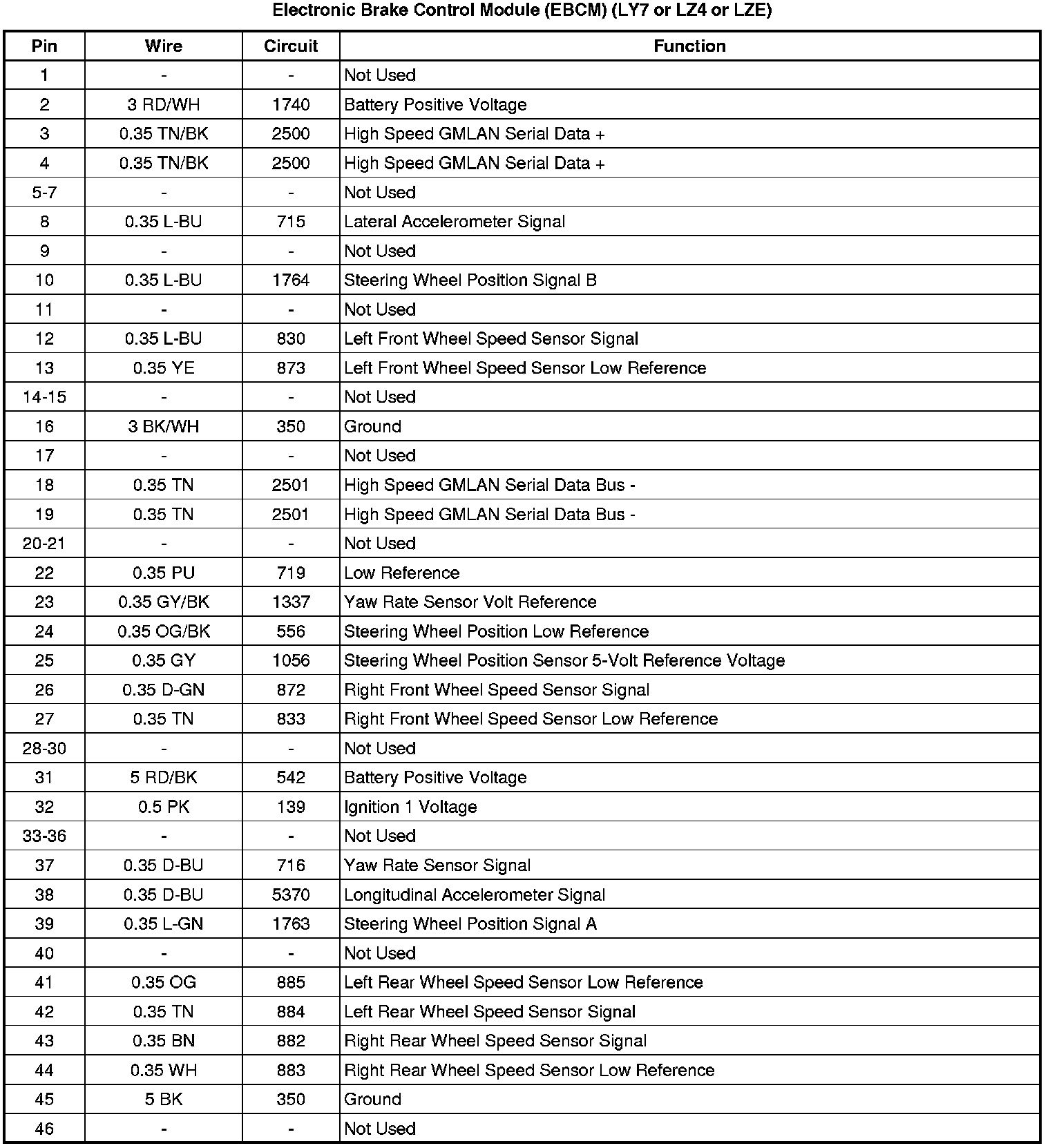

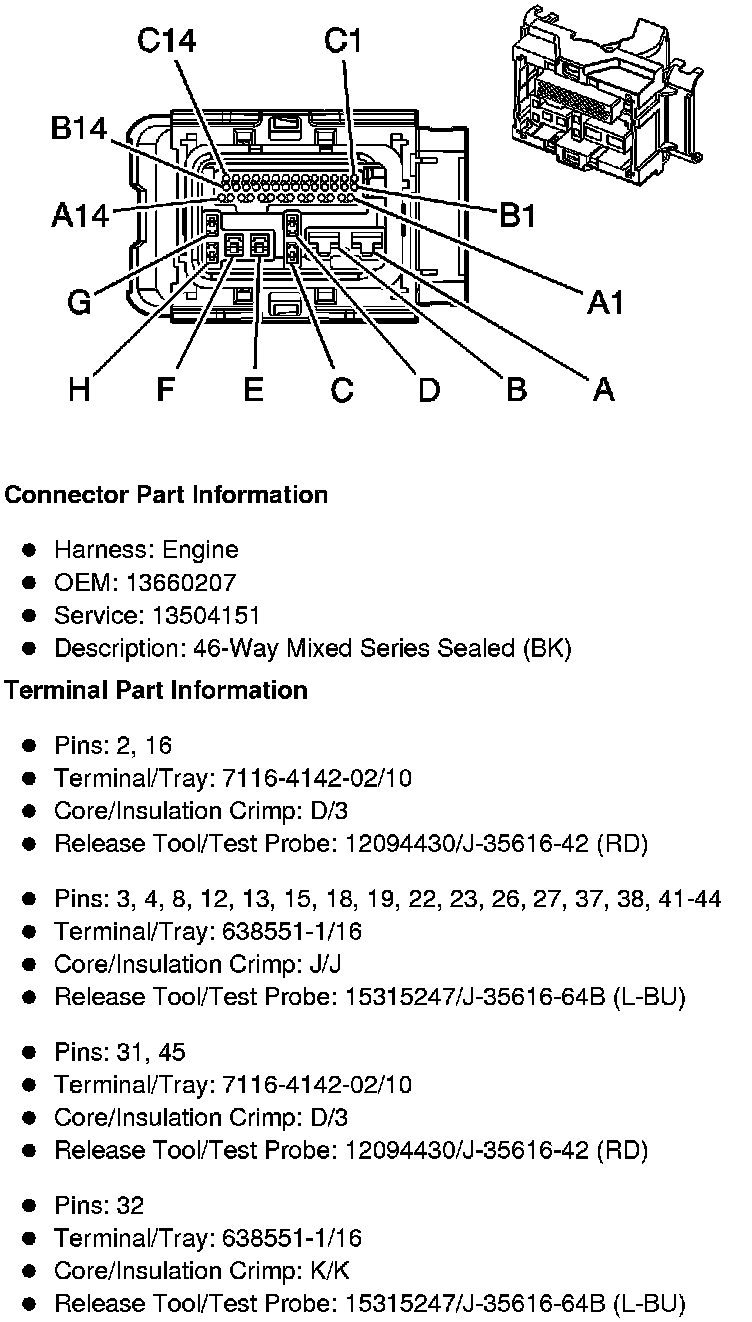

Electronic Brake Control Module (EBCM) (LY7 or LZ4 or LZE)

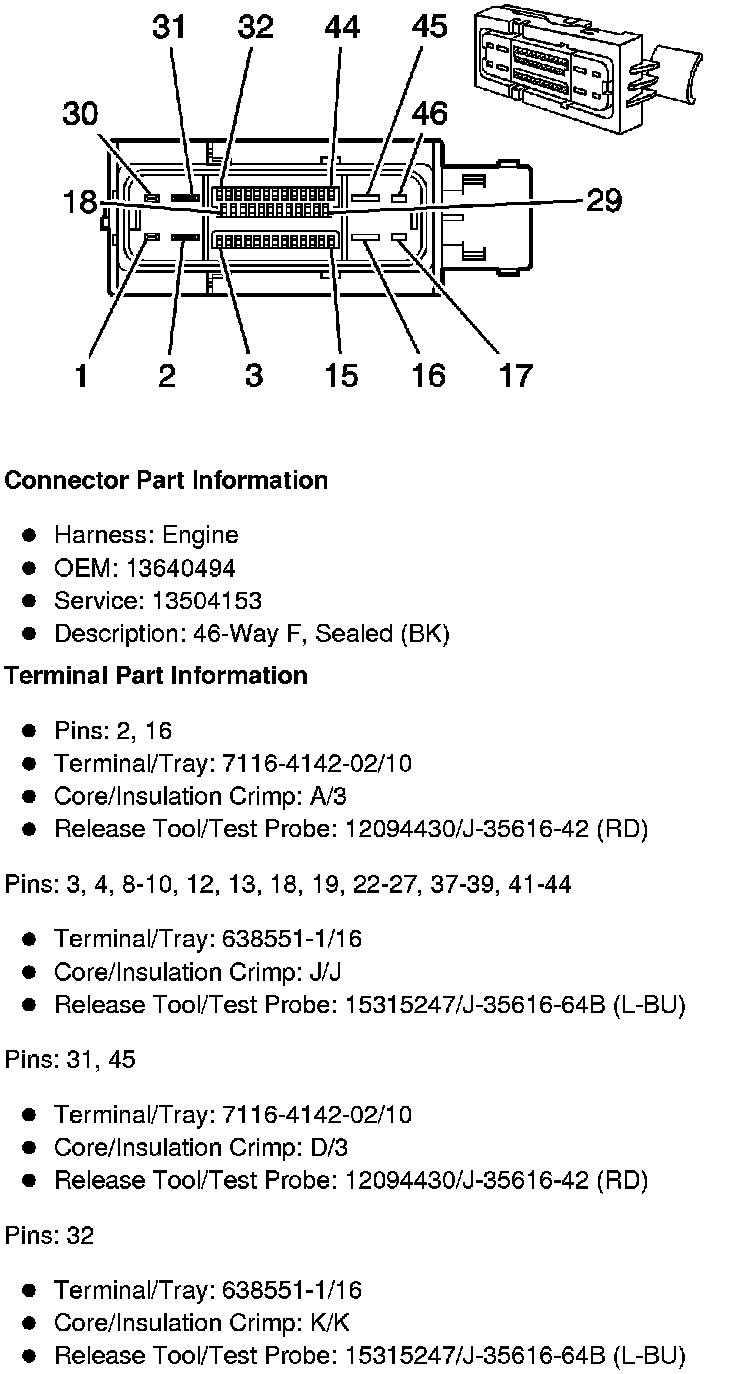

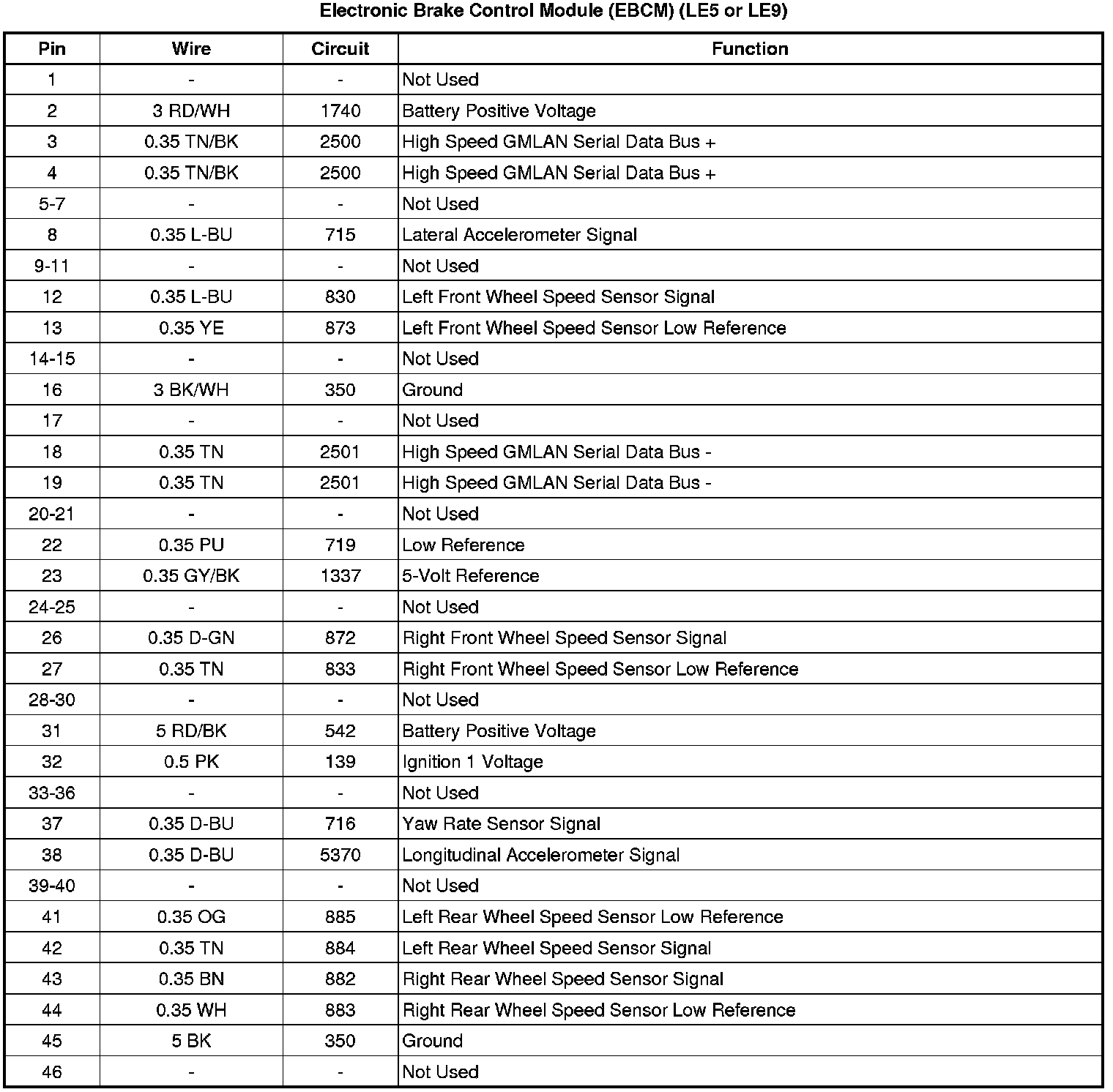

Electronic Brake Control Module (EBCM) (LE5 or LE9)
