Engine Control Module
Component Connector End Views

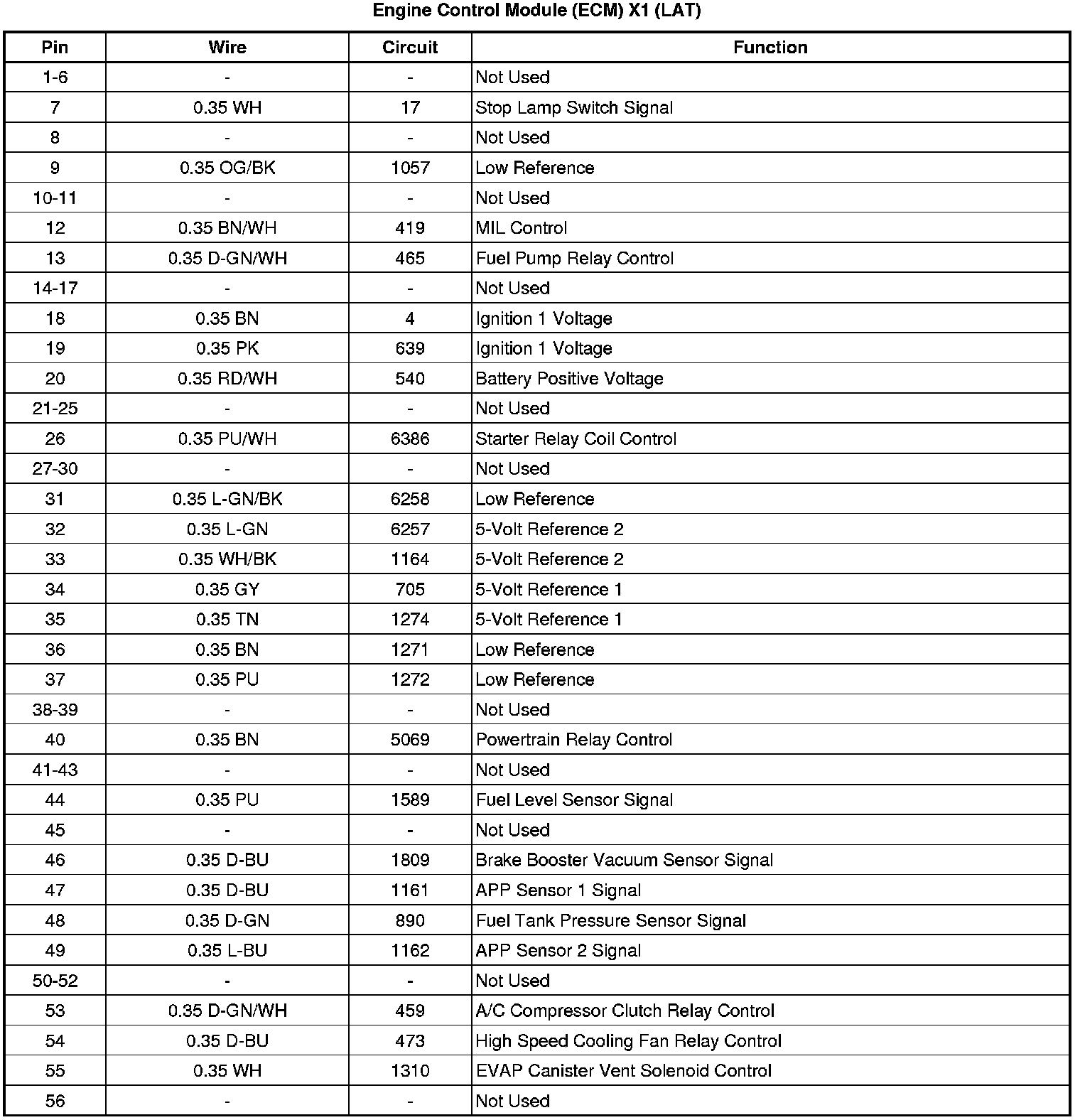

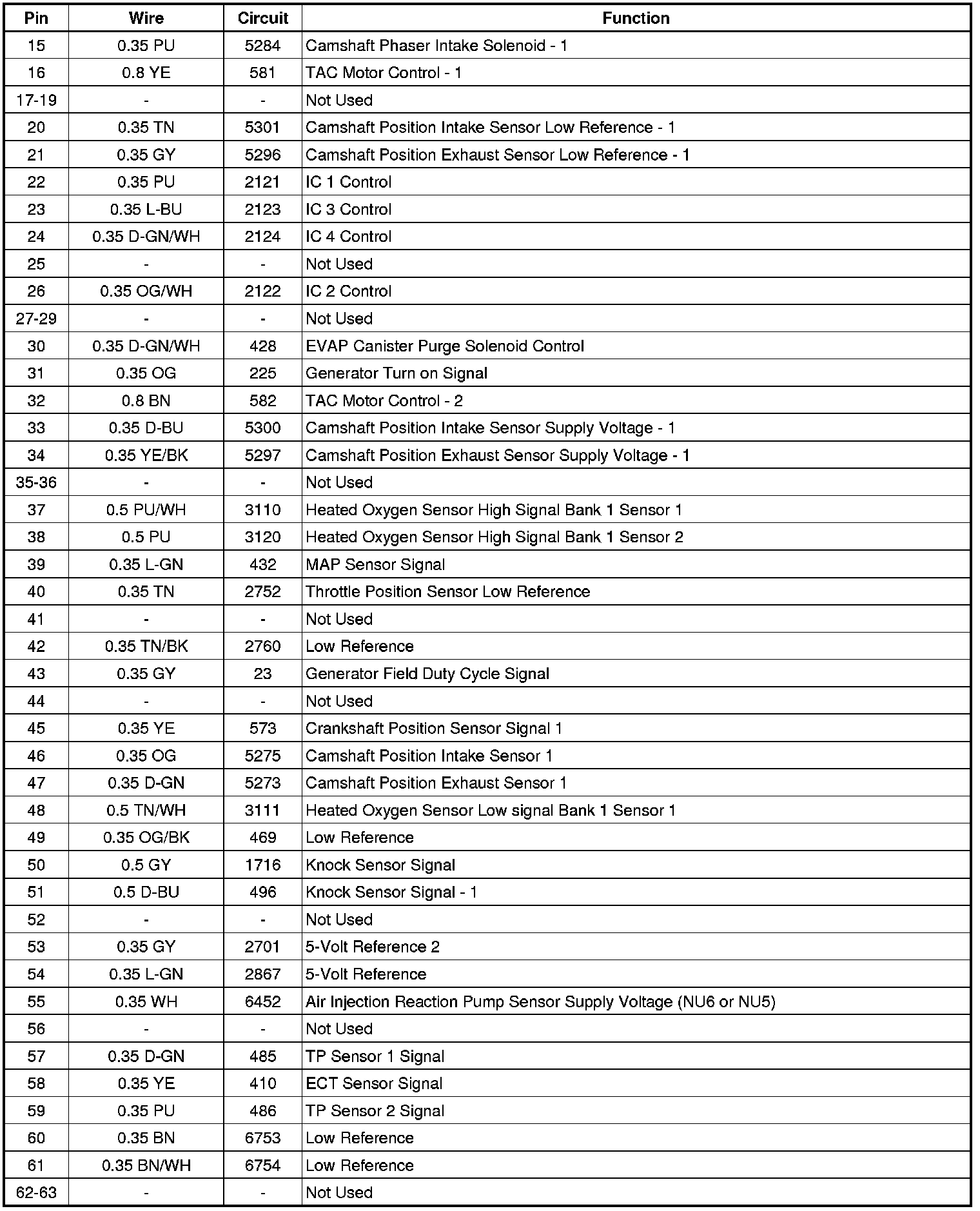

Engine Control Module (ECM) X1 (LAT)

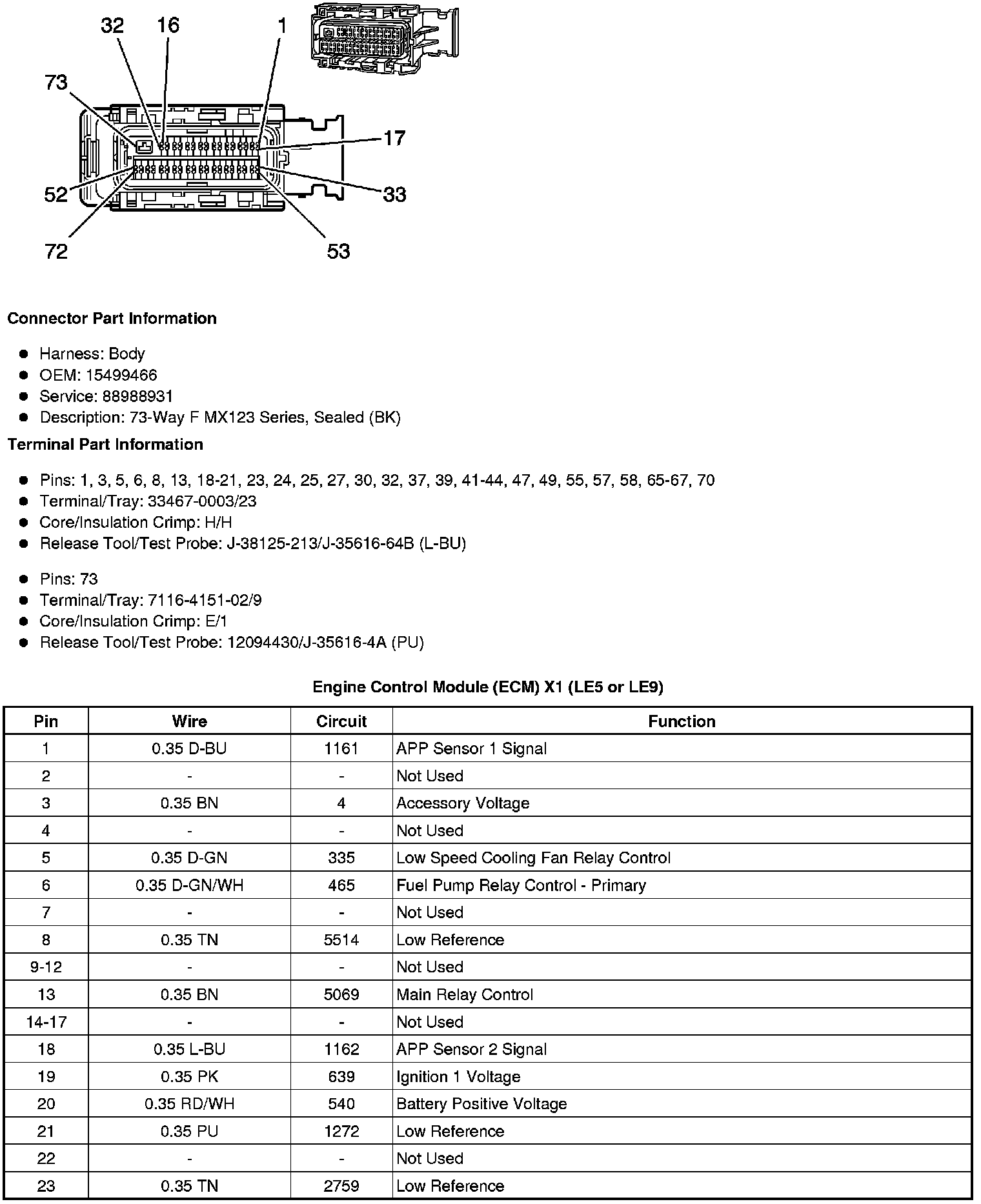

Engine Control Module (ECM) X1 (LE5 or LE9)

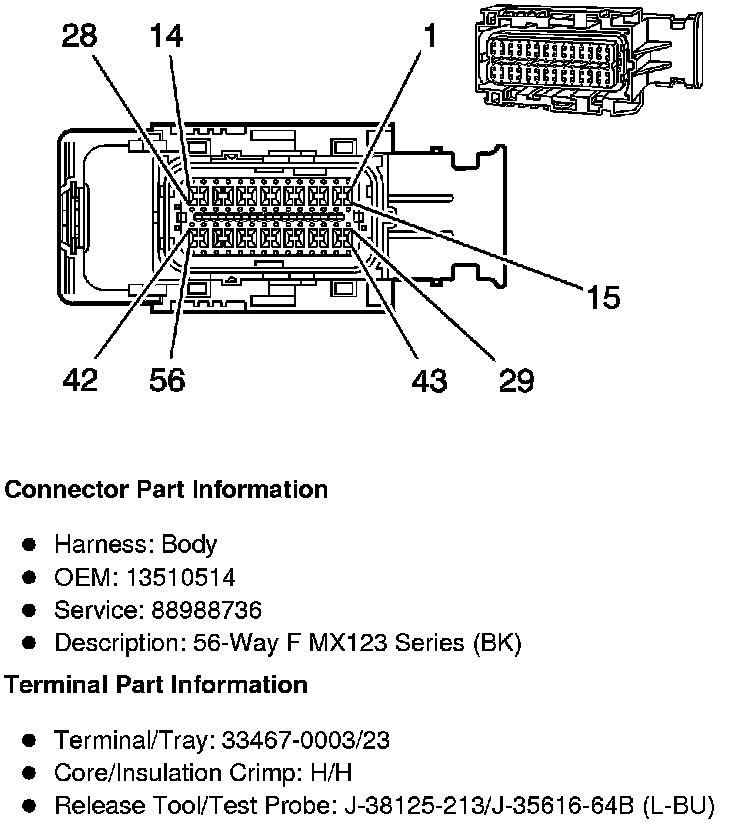

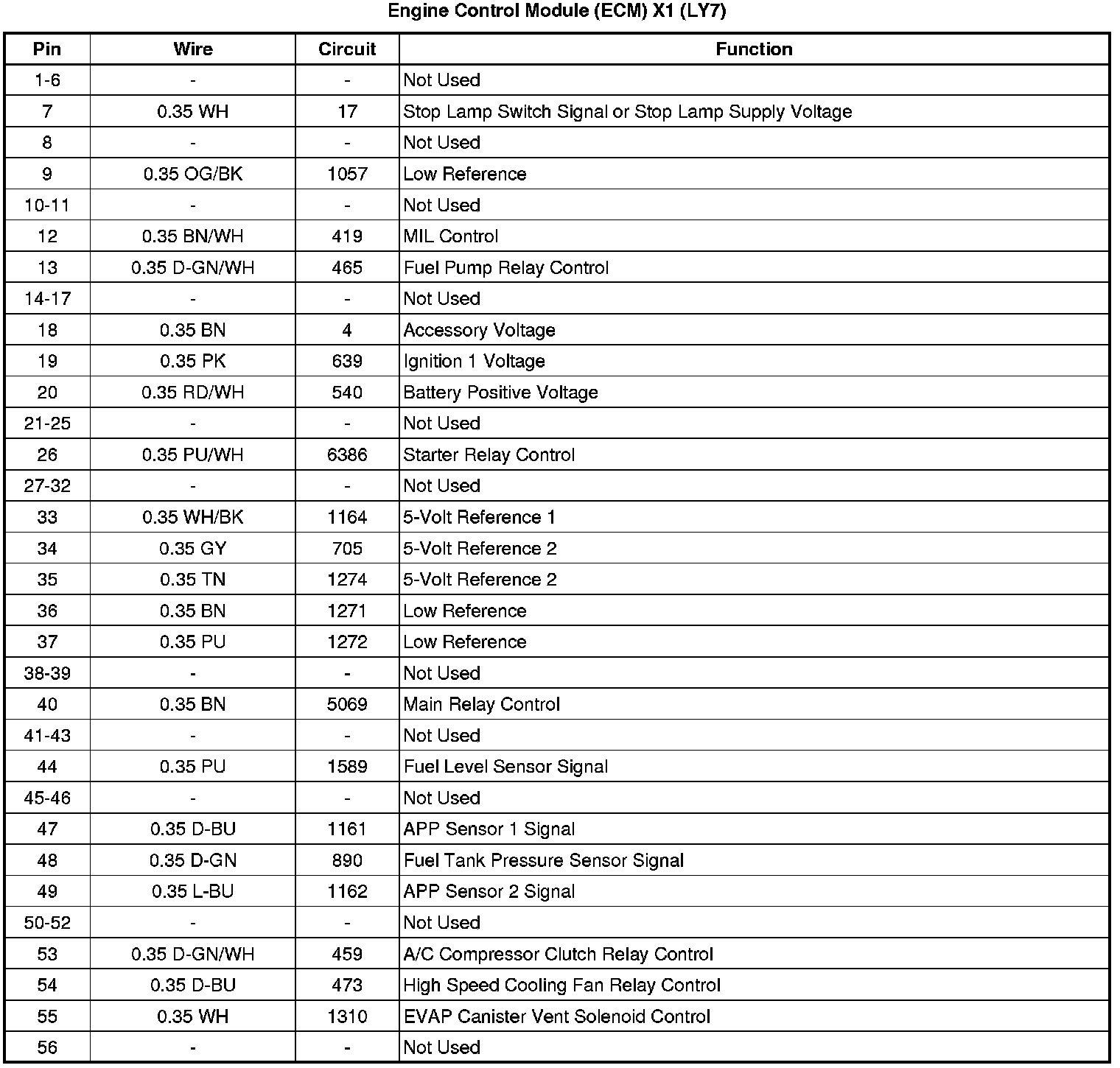

Engine Control Module (ECM) X1 (LY7)

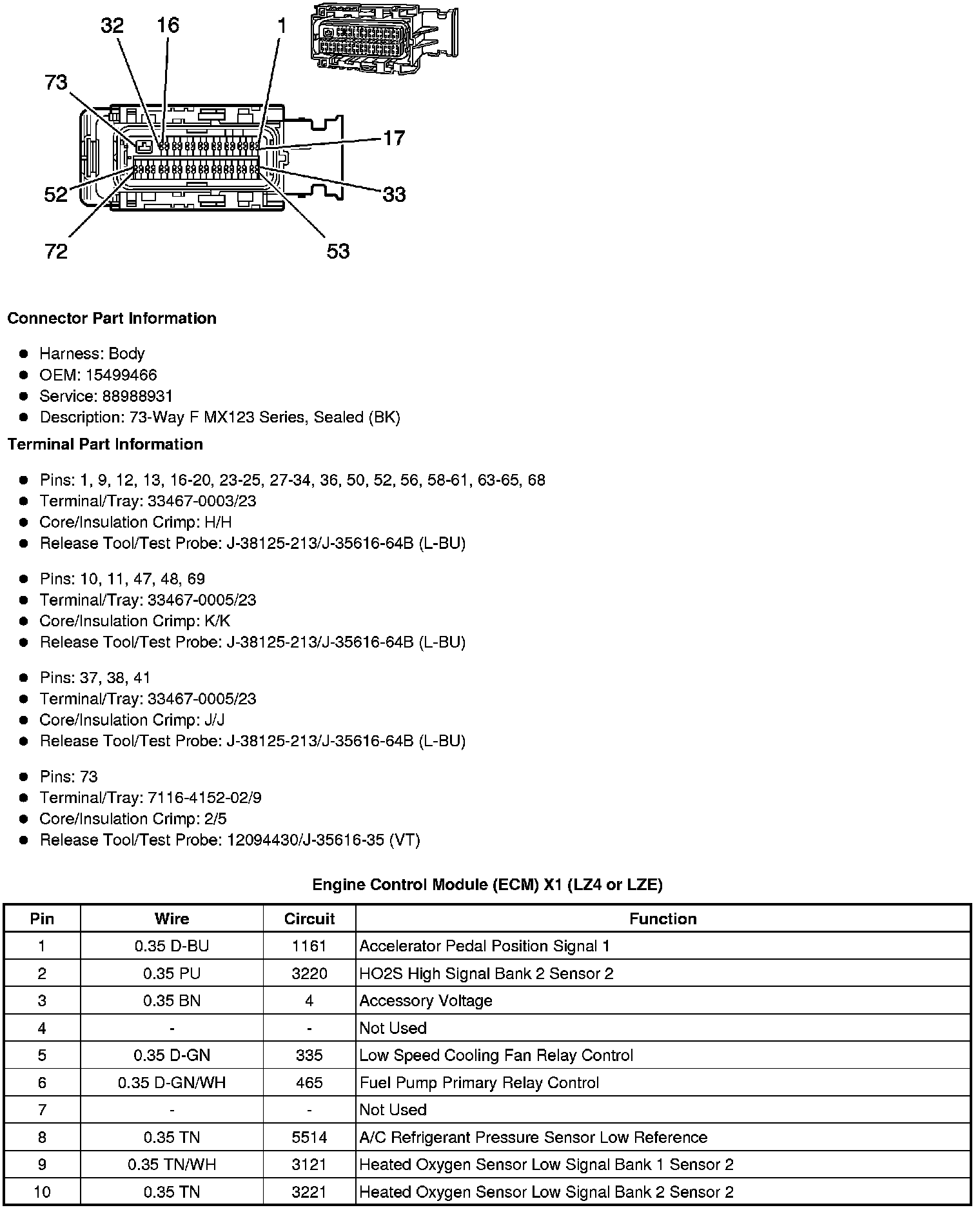

Engine Control Module (ECM) X1 (LZ4 or LZE)

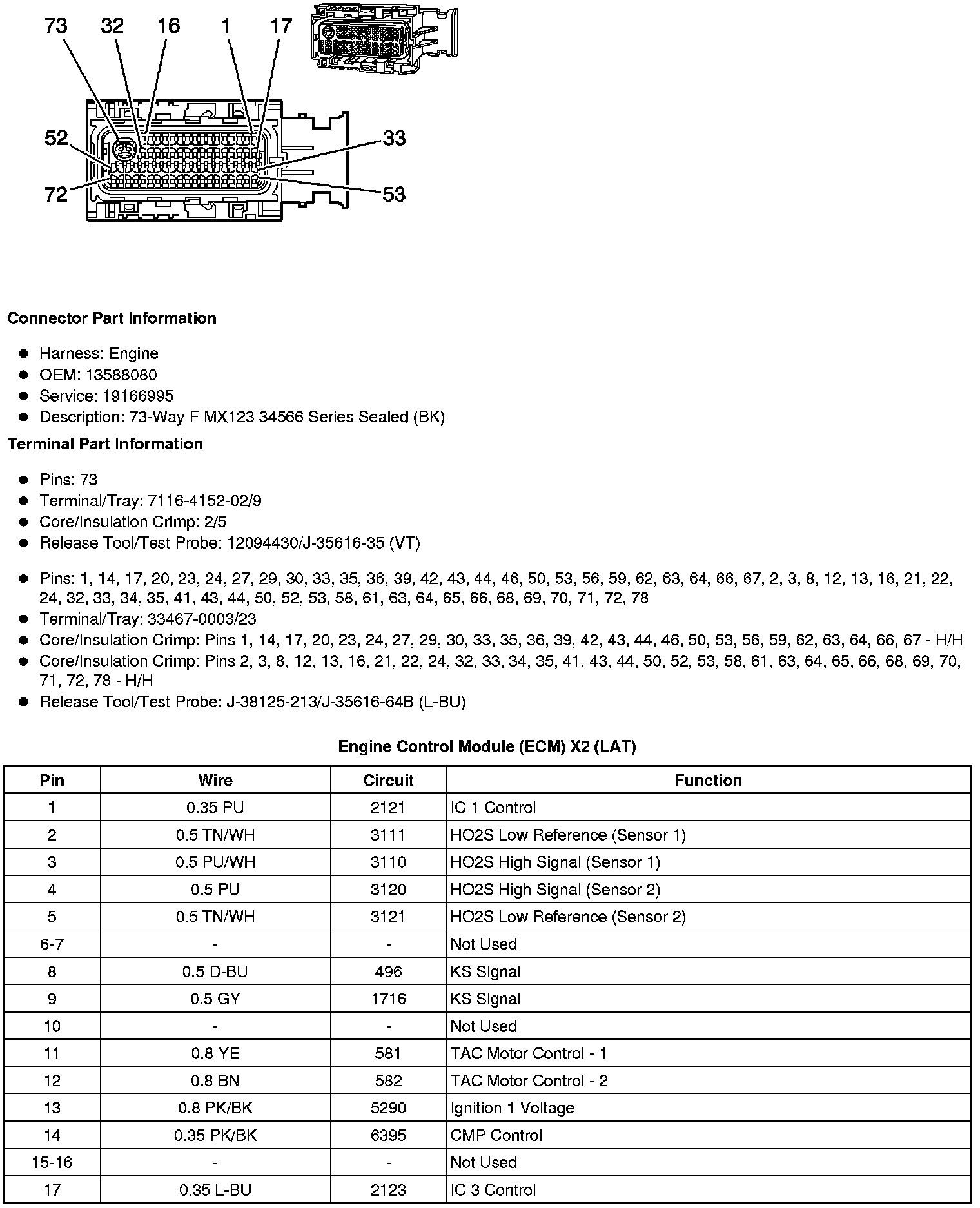

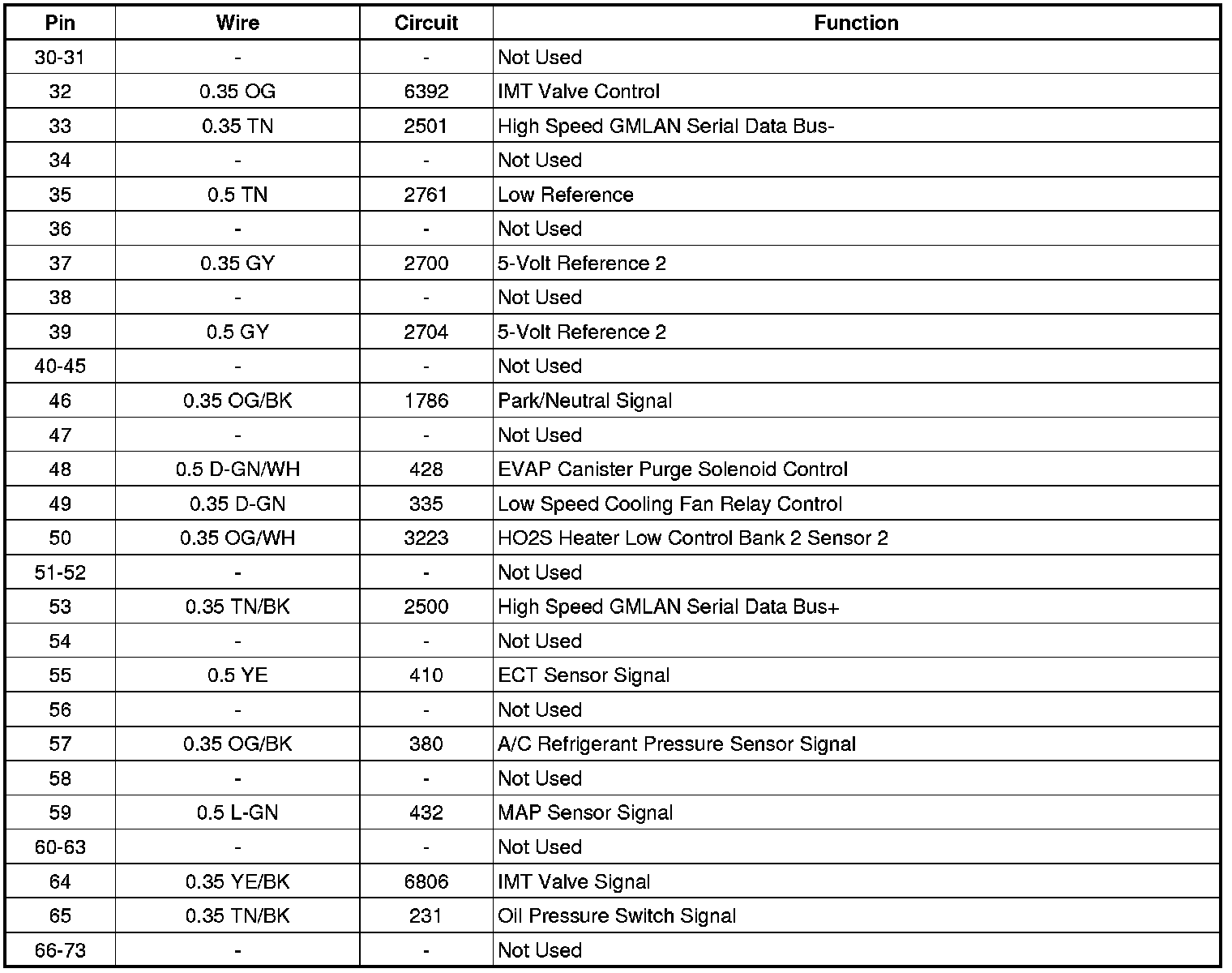

Engine Control Module (ECM) X2 (LAT)

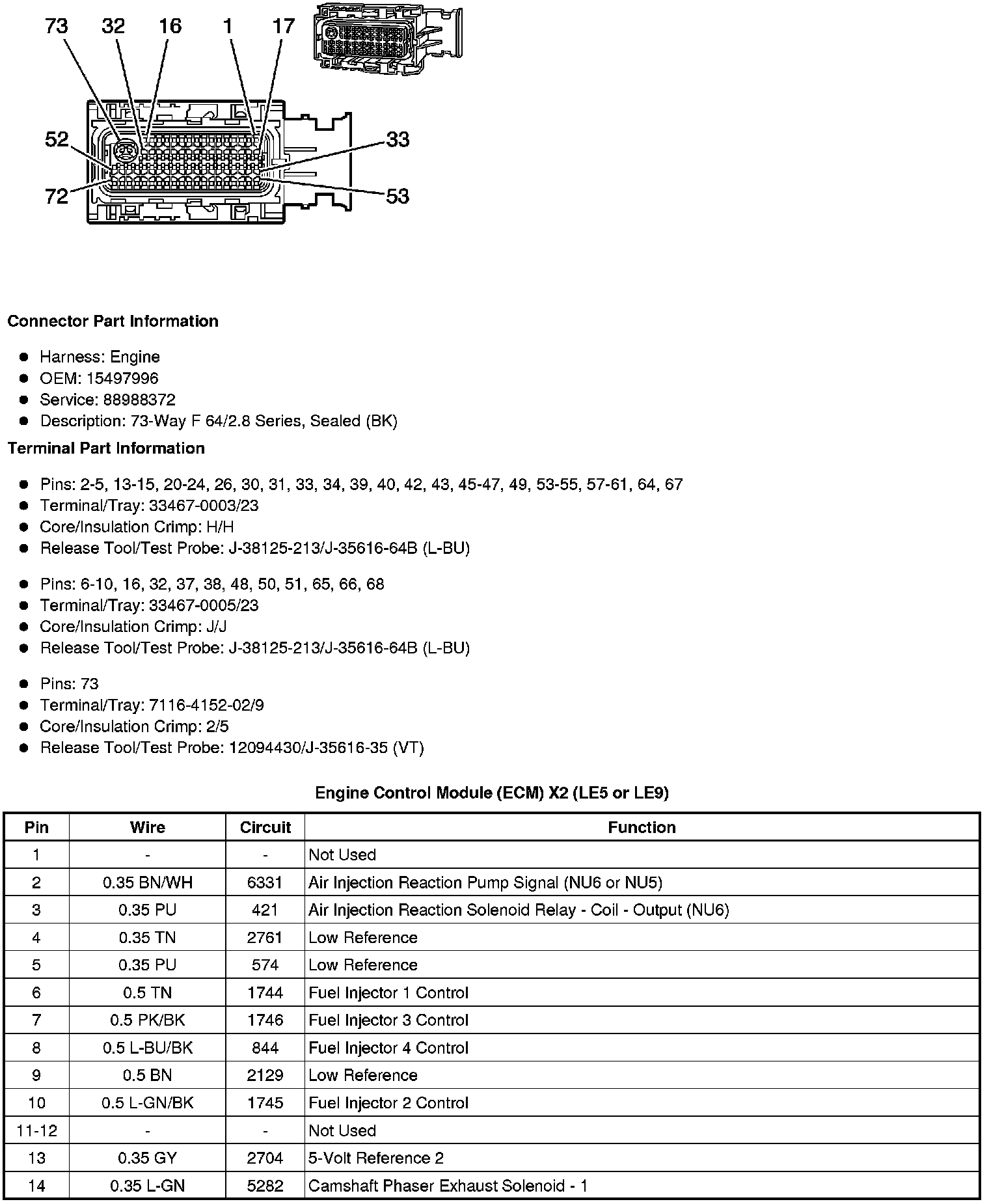

Engine Control Module (ECM) X2 (LE5 or LE9)

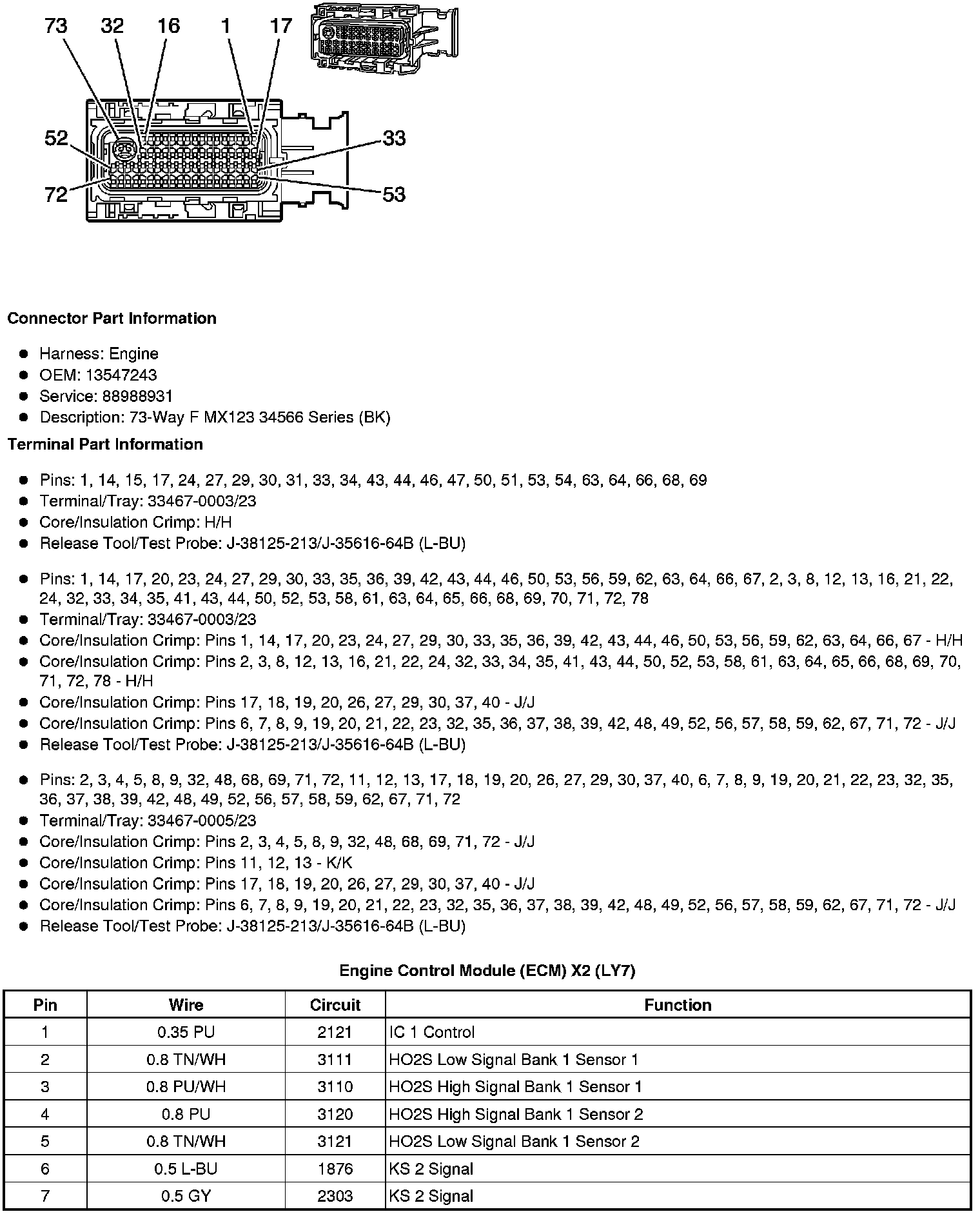

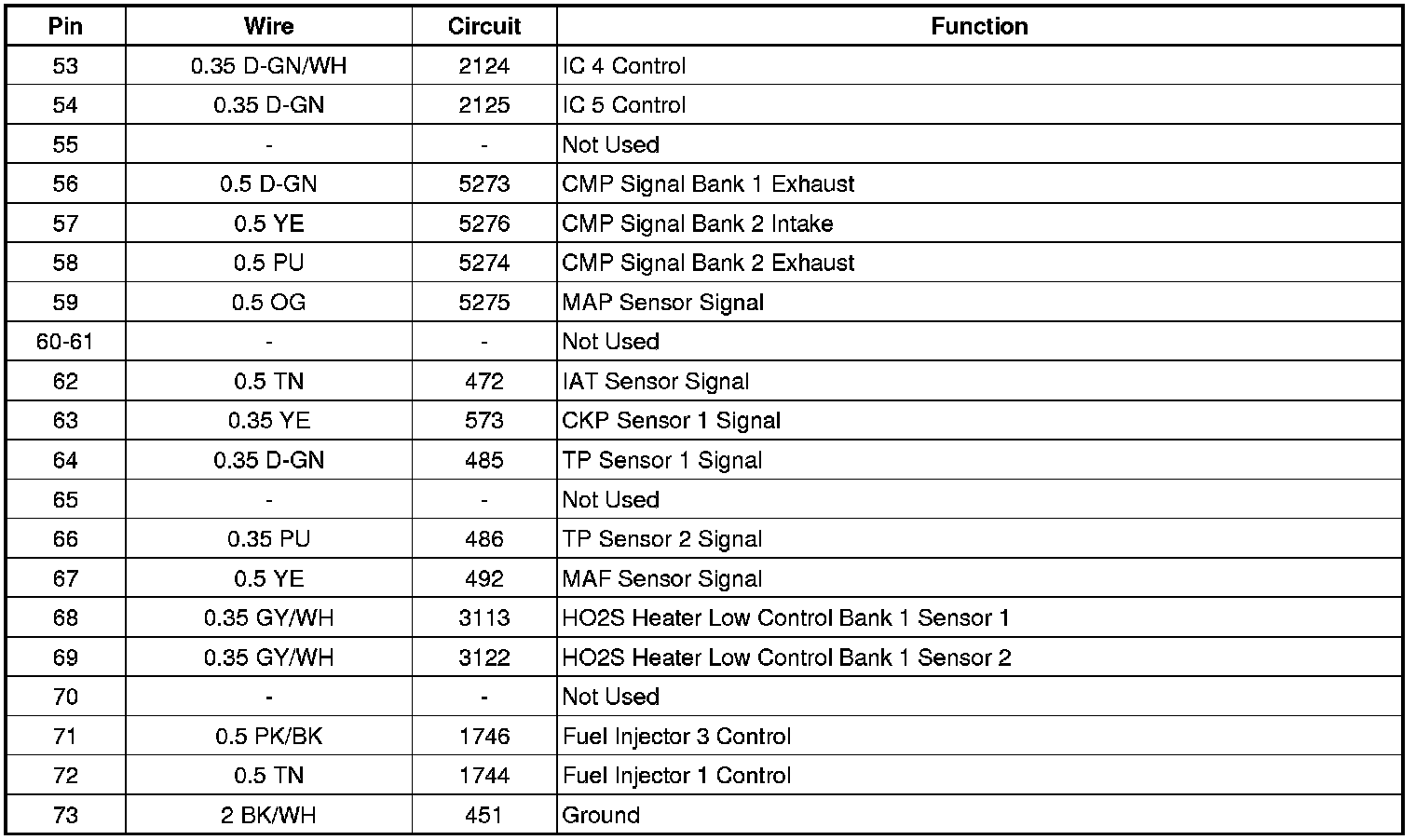

Engine Control Module (ECM) X2 (LY7)

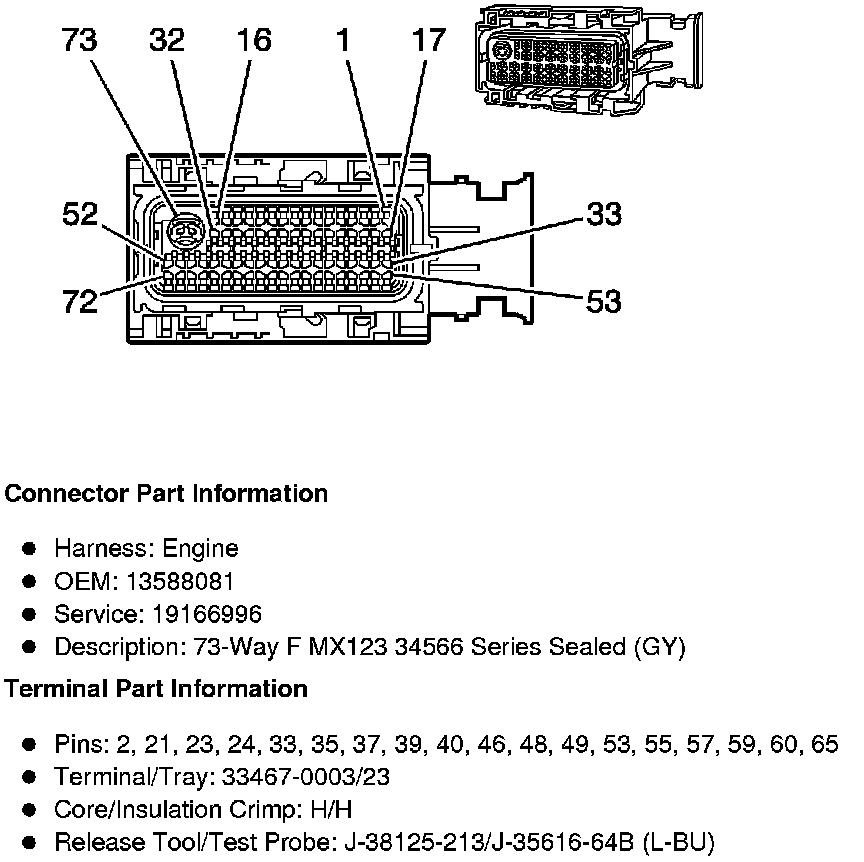

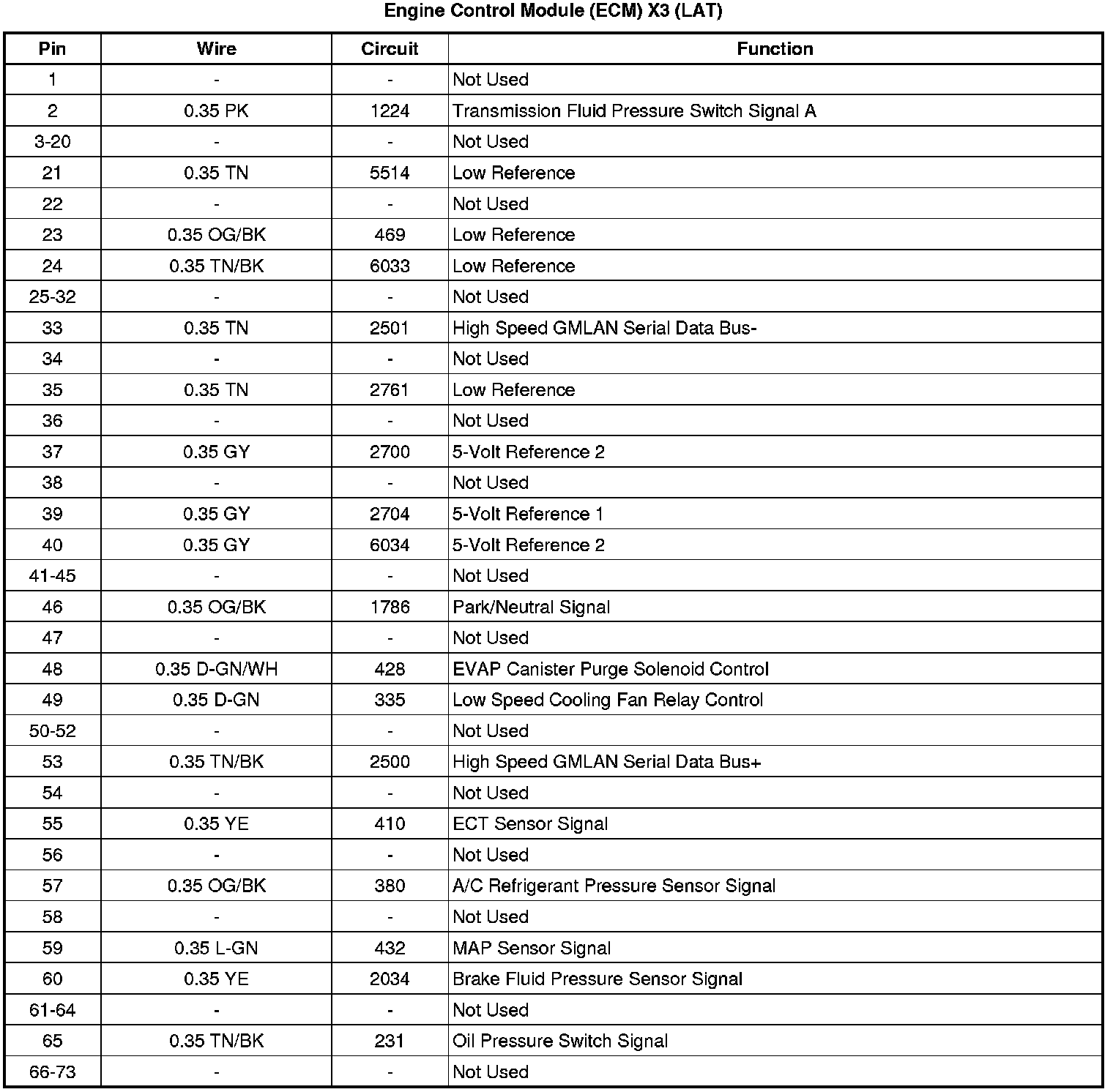

Engine Control Module (ECM) X3 (LAT)

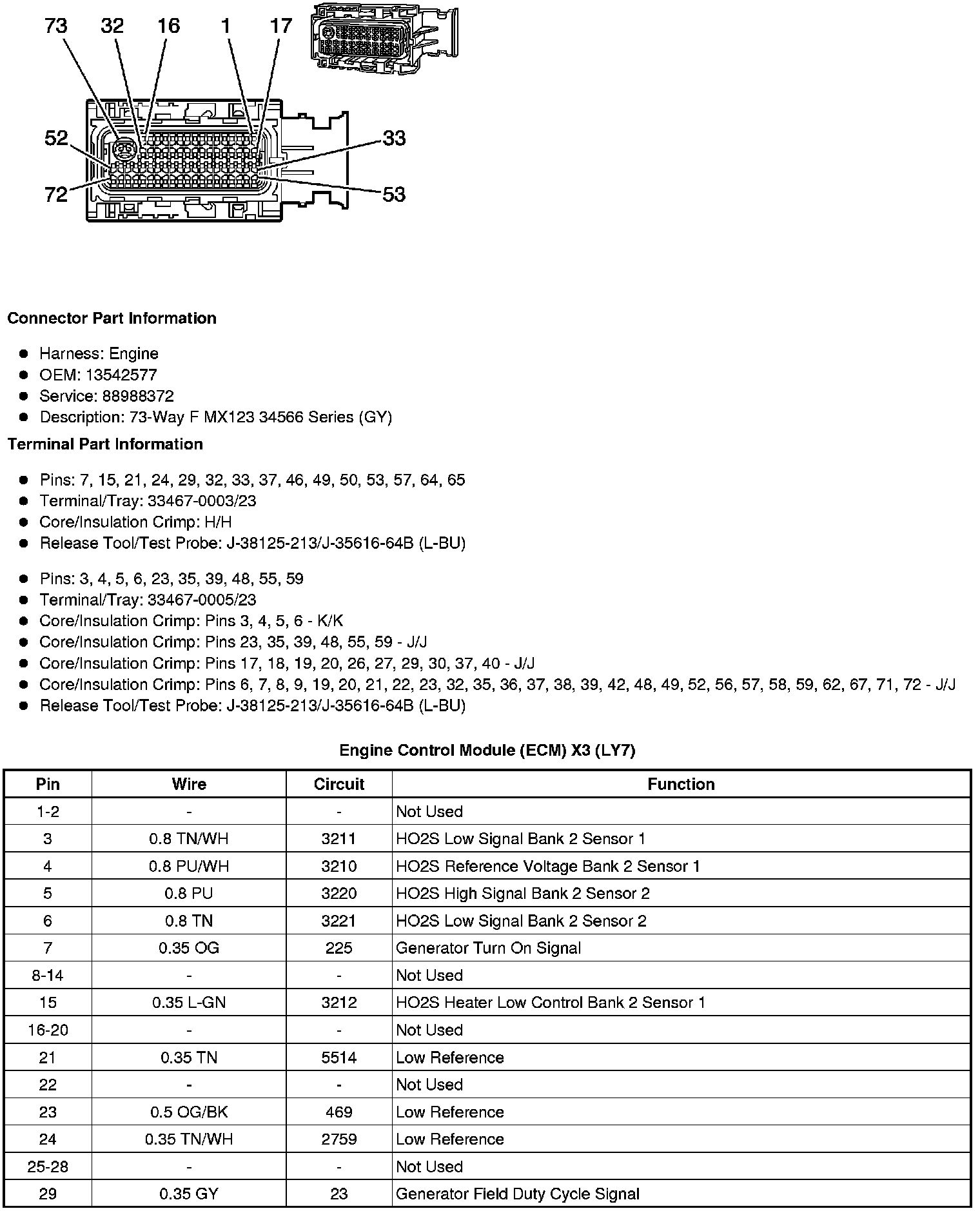

Engine Control Module (ECM) X3 (LY7)
