Installation Procedure

    Fig 1: View Of Air Cleaner Assembly
    GM1838005Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner assembly to the upper tie bar.
    2. Fig 2: View Of Air Cleaner Housing Rear Bolt & A/C Condenser/Evaporator Tube Clamp
    GM1838002Courtesy of GENERAL MOTORS CORP.
  2. Position the A/C condenser and evaporator tube clamp as required.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the air cleaner housing rear bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

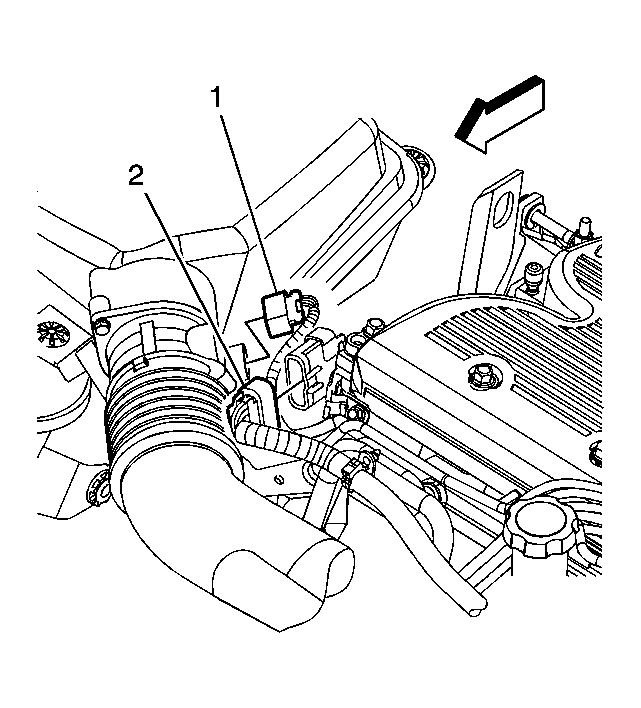

    4. Fig 3: Identifying Engine Wiring Harness Electrical Connector
    GM1777208Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine wiring harness electrical connector (1) to the MAF/IAT sensor.
  5. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
