Vehicle Jacking: Notes

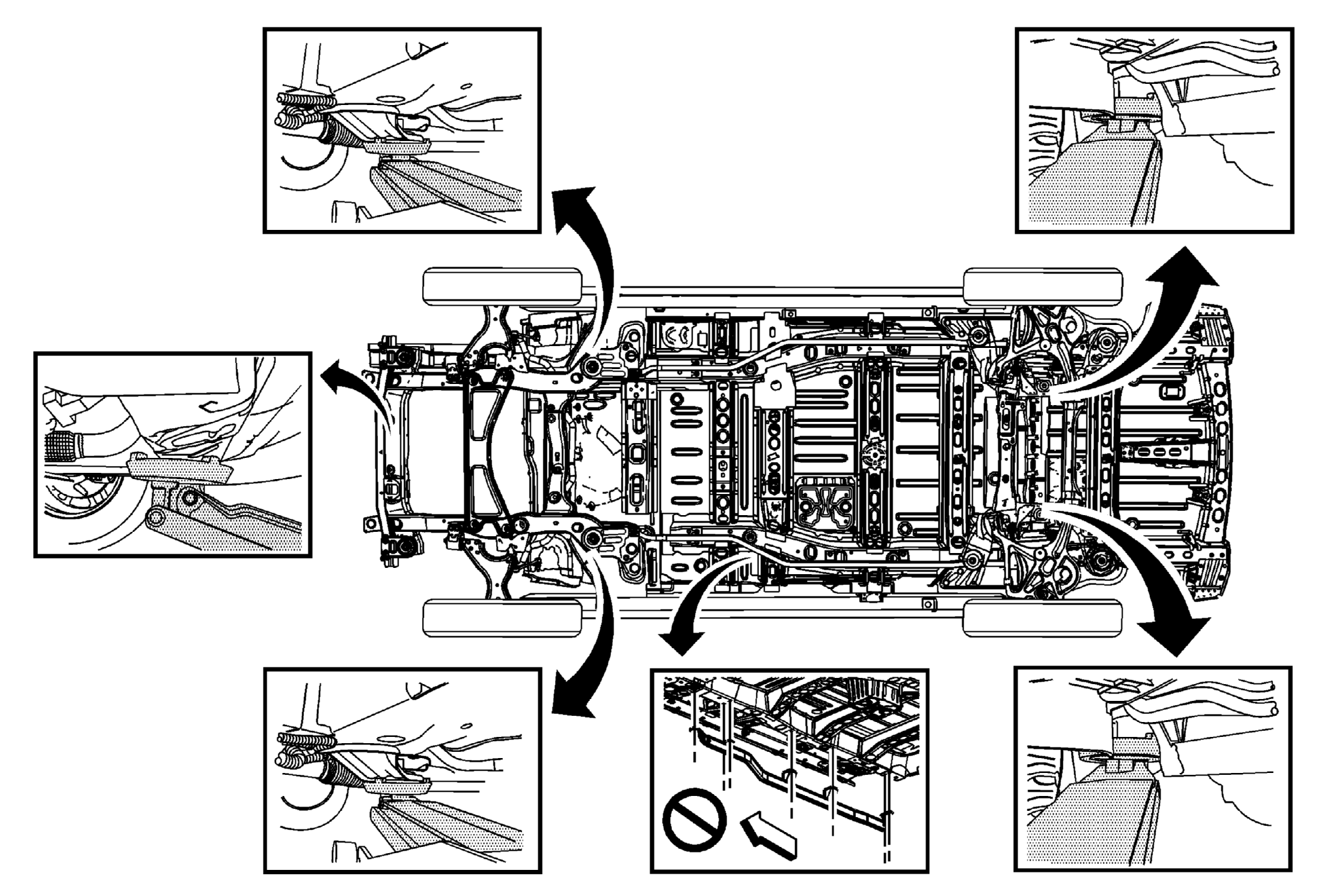

Fig 1: Identifying Correct Jacking Points
GM1855328Courtesy of GENERAL MOTORS CORP.
CAUTION: When you are jacking the vehicle at the front locations, be certain that the jack or the jack lift pad does not contact the front fascia, front fascia air dam, or the front fenders. If such contact occurs, vehicle damage may result. When jacking at selected front locations additional clearance may be required for the jacking points.
NOTE: When you are lifting a vehicle with a service jack, block the wheels at the opposite end from which you are lifting. Use jackstands to provide additional support.
