Steering Wheel Horn Switch Replacement

WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

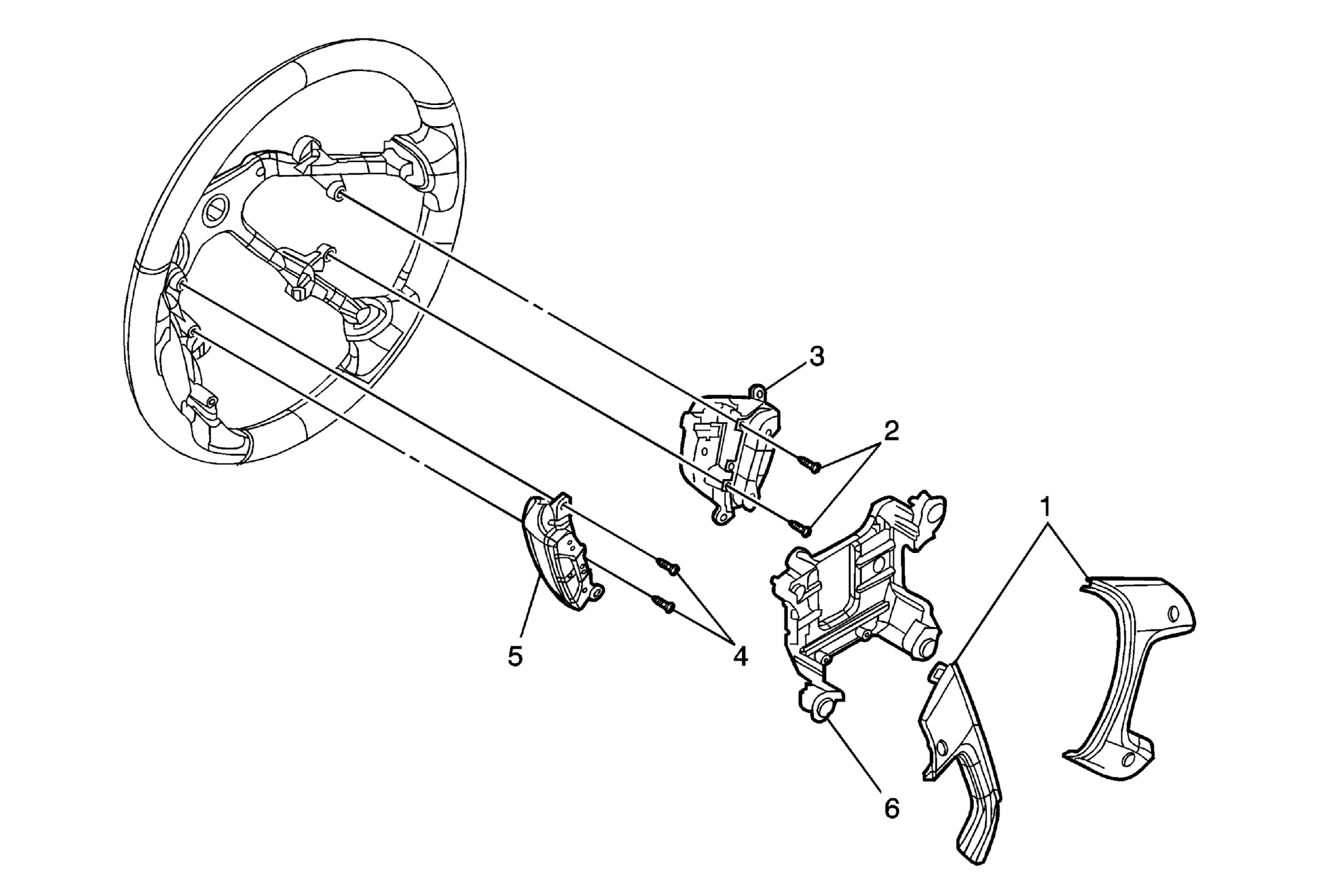

Fig 1: Identifying Steering Wheel Horn Switch & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .
1	Steering Wheel Spoke Cover (Qty: 2) TIP: Use gentle pressure to disengage the steering wheel spoke covers from the steering wheel.
2	Radio Control Switch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Radio Control Switch Procedure Disconnect any electrical connectors as needed.
4	Cruise Control Switch Bolt (Qty: 2) Tighten 2.5 N.m (22 lb in)
5	Cruise Control Switch Procedure Disconnect any electrical connectors as needed.
6	Horn Switch Procedure Disconnect any electrical connectors as needed. TIP: Use gentle pressure to disengage the horn switch from the steering wheel.
