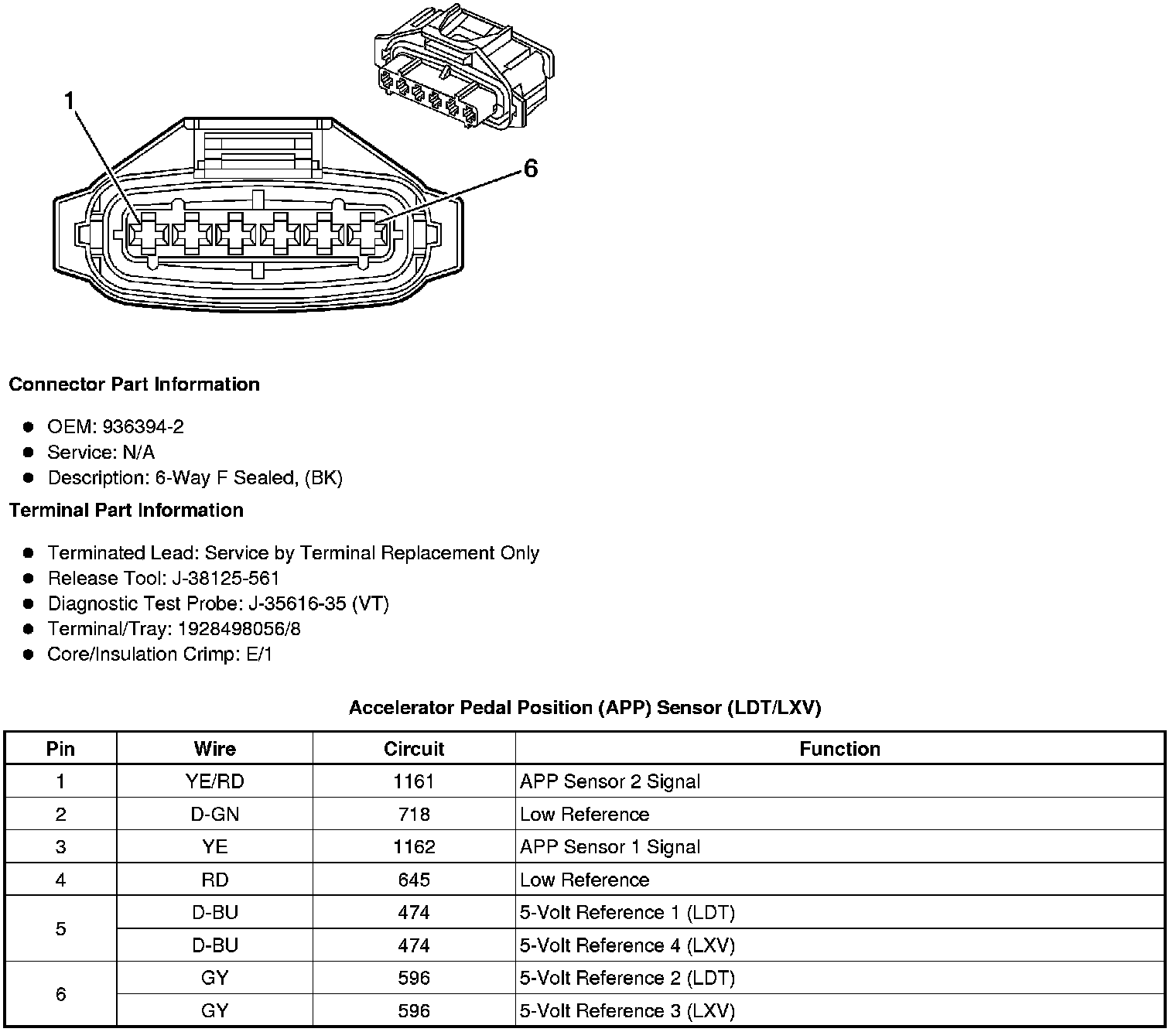

Accelerator Pedal Position Sensor
Component Connector End Views
Accelerator Pedal Position (APP) Sensor (LDT/LXV)
