HVAC Blower Controls




Instrument Panel/Center Console Component Views

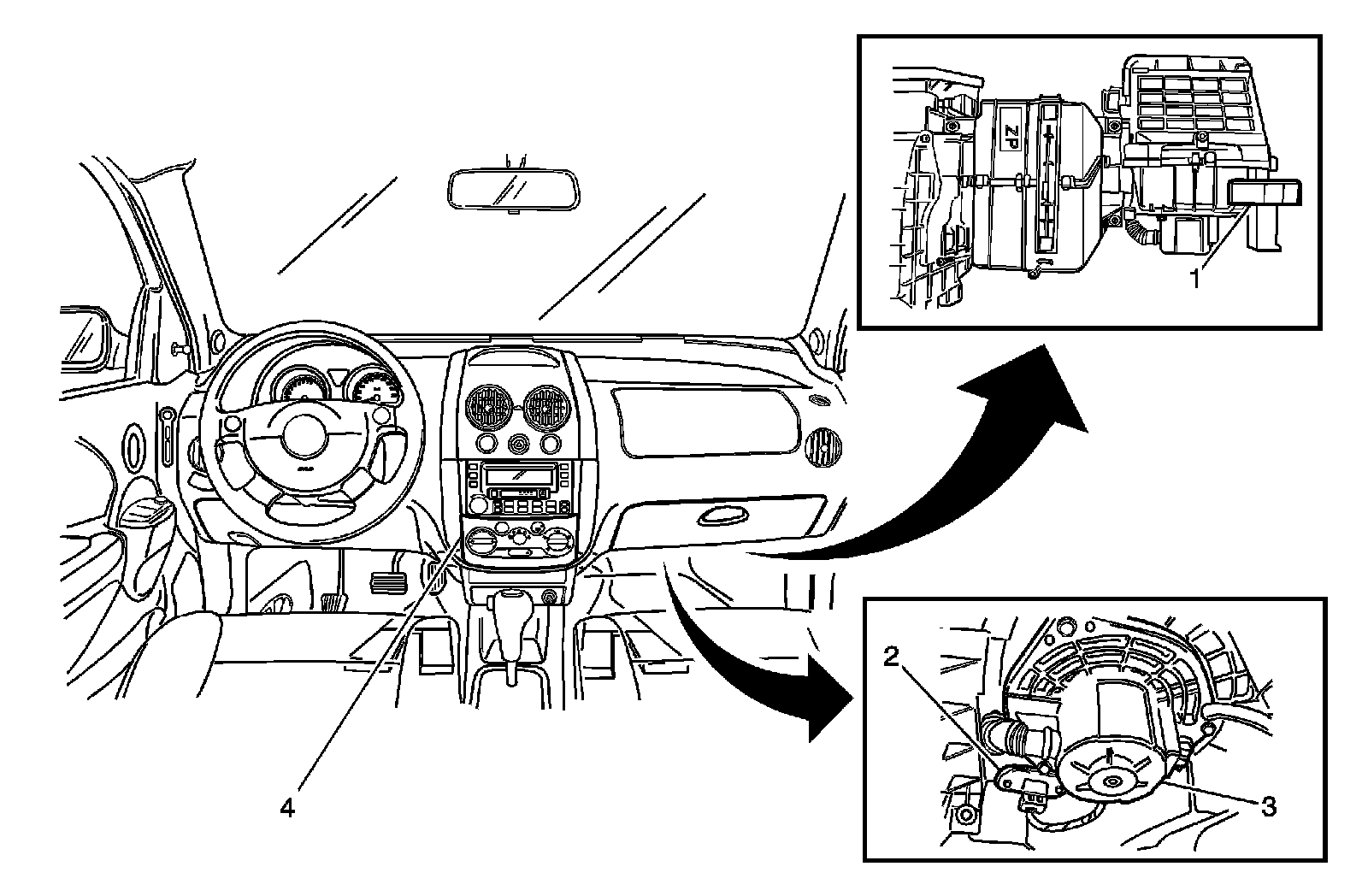

HVAC Blower Controls




1 - Recirculation Actuator
2 - Blower Motor Resistor
3 - Blower Motor
4 - HVAC Control and Blower Switch
