Headlamp Control Module: Service and Repair

Daytime Running Lamp Control Module Replacement

Removal Procedure




Warning: Refer to Battery Disconnect Warning (Battery Disconnect Warning).

1. Disconnect the negative battery cable.
2. Remove the instrument panel lower cover.

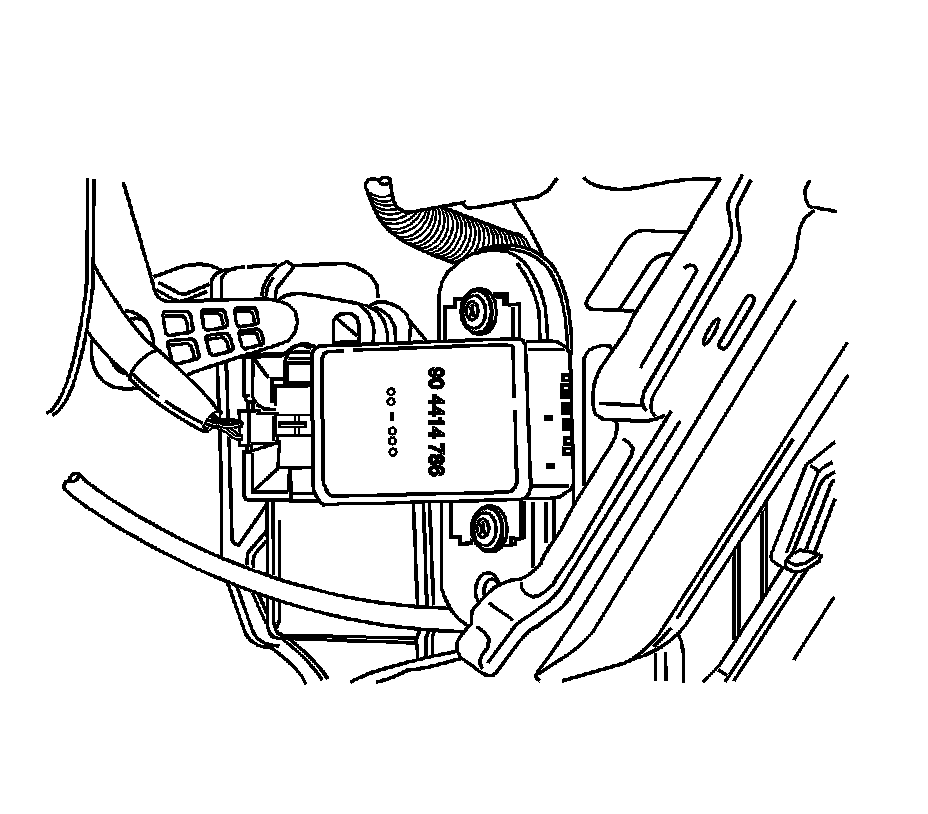

3. Reach underneath the instrument panel and remove the bolts and the daytime running lamp module.
4. Disconnect the electrical connector.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the daytime running lamp module with the bolts and tighten to 2.5 Nm (22 lb in).
2. Connect the electrical connector.
3. Install the instrument panel lower cover.
4. Connect the negative battery cable.
