Installation Procedure

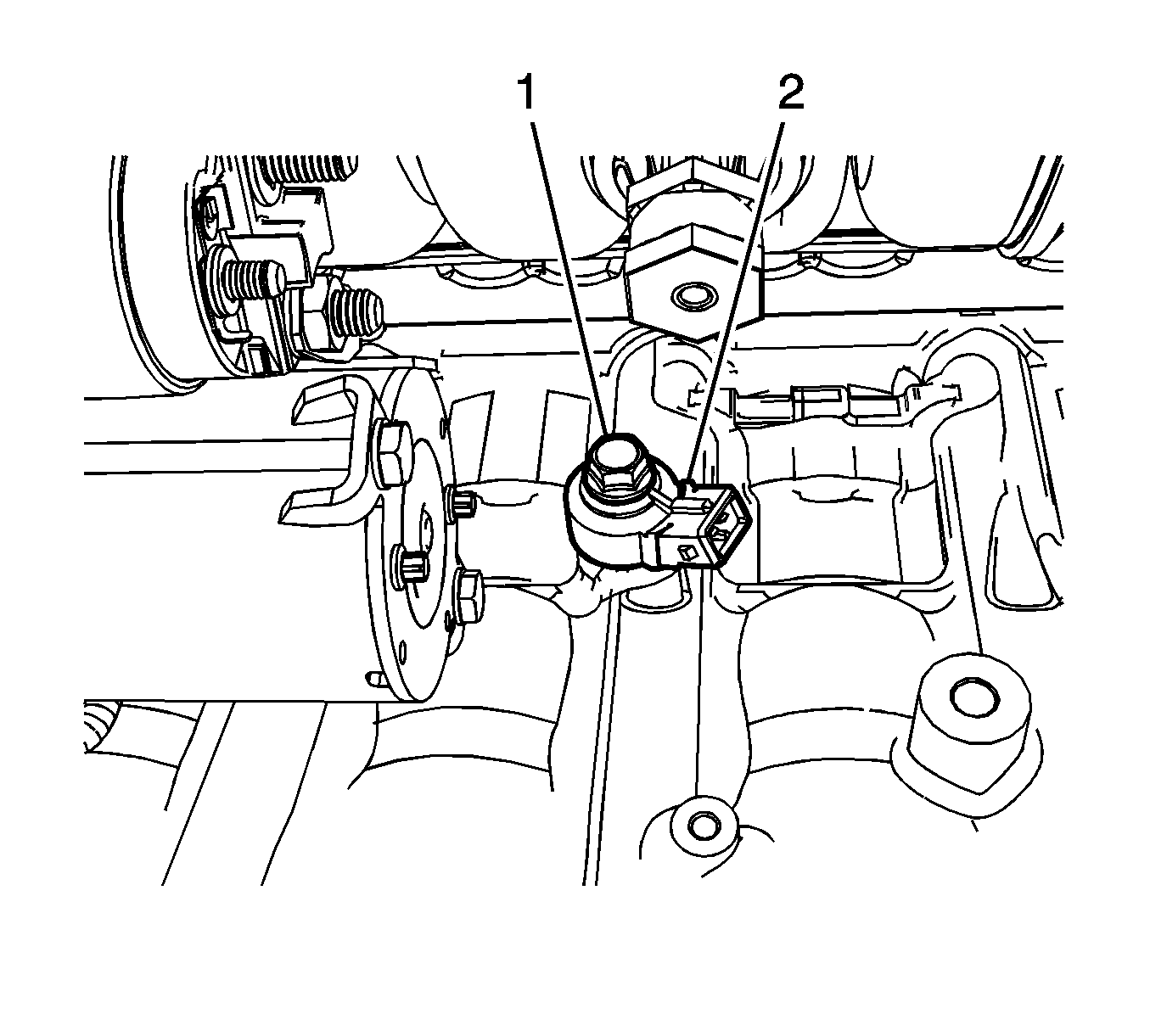

    Fig 1: Knock Sensor & Bolt
    GM2049256Courtesy of GENERAL MOTORS CORP.
  1. Install the knock sensor (2).
    2. CAUTION: Refer to Fastener Caution .
  2. Install the knock sensor bolt (1).

    Tighten:  Tighten the knock sensor bolt (1) to 20 N.m (14.7 lb ft).

  3. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
