Installation Procedure

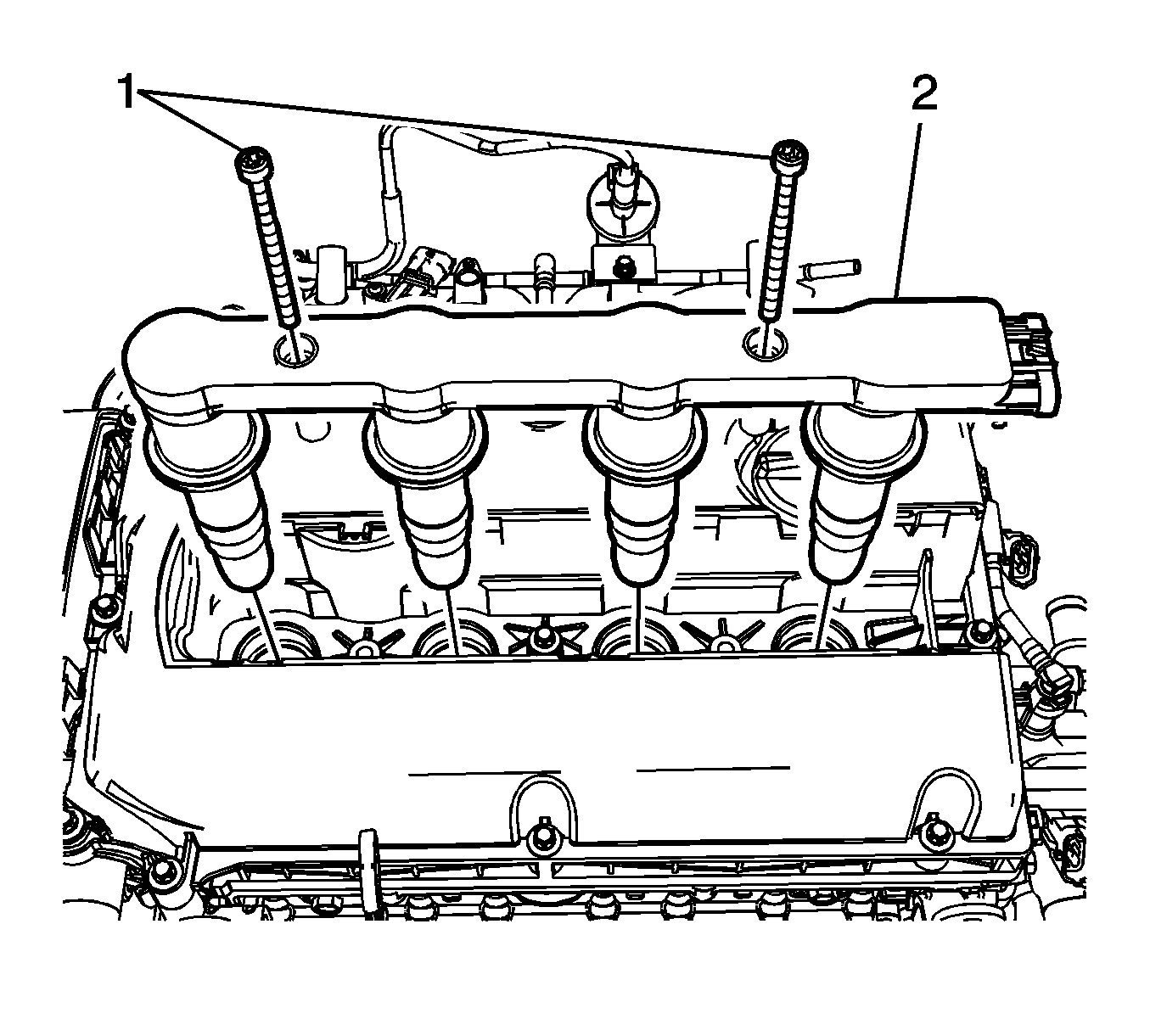

    Fig 1: Ignition Coil & Bolts
    GM2049244Courtesy of GENERAL MOTORS CORP.
  1. Install The spark plugs.
  2. Install the ignition coil (2).
    3. CAUTION: Refer to Fastener Caution .
  3. Install the ignition coil bolts (1).

    Tighten:  Tighten the ignition coil bolts (1) to 8 N.m (70.8 lb in).

  4. Connect the ignition coil connector.
  5. Install the ignition coil cover.
  6. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
