Steering Wheel Secondary/Configurable Control Wiring Schematics

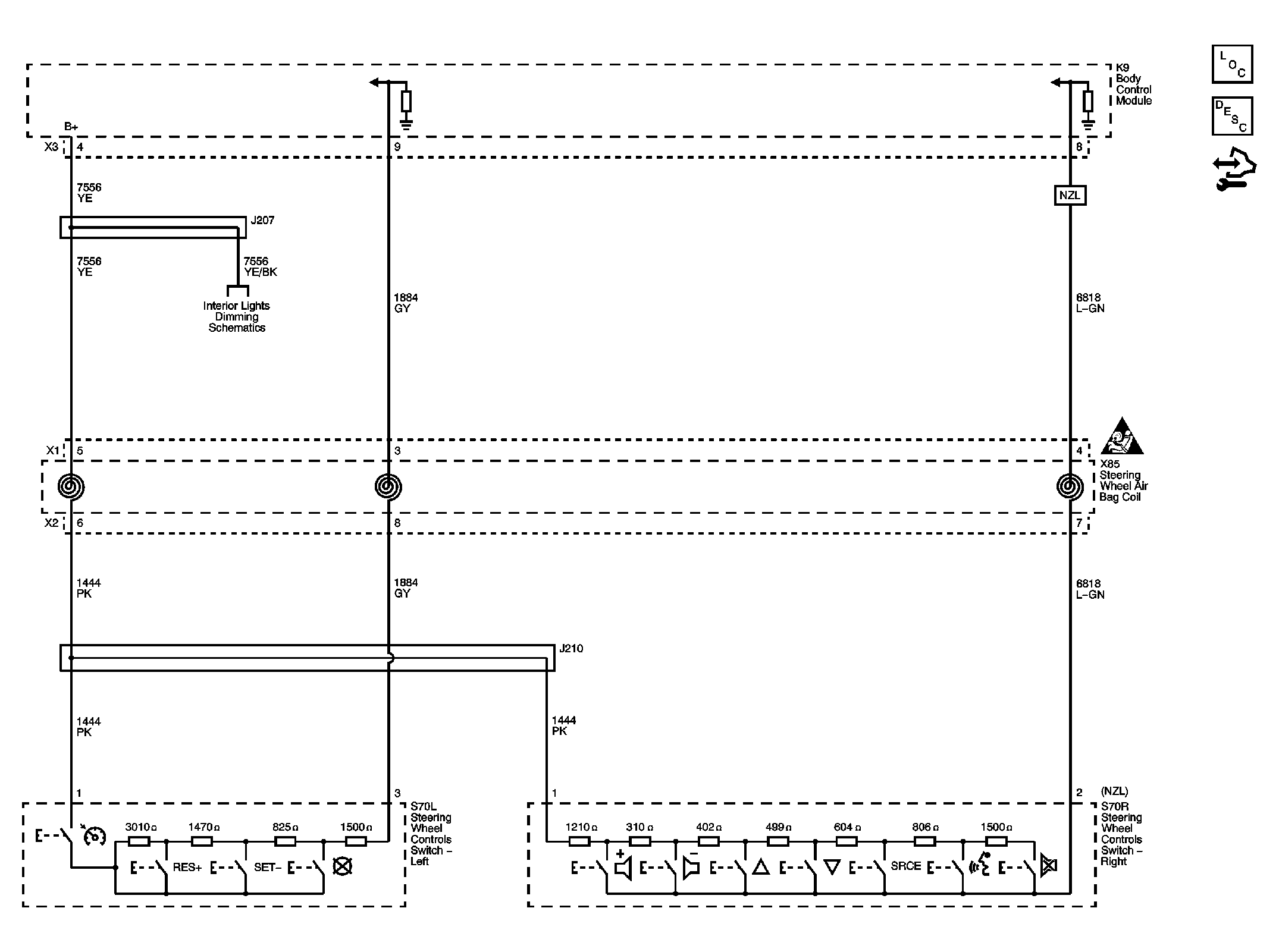

Fig 1: Steering Wheel Wiring Schematics
GM2404212Courtesy of GENERAL MOTORS CORP.
