Cylinder Head Assembly

Cylinder Head Bolts

DO NOT reuse the old cylinder head bolts

Cylinder Head Bolt - M8

First Pass 15 Nm (11 lb ft)
Final Pass 75 Degrees

Cylinder Head Bolt - M11

First Pass 30 Nm (22 lb ft)
Final Pass 150 degrees

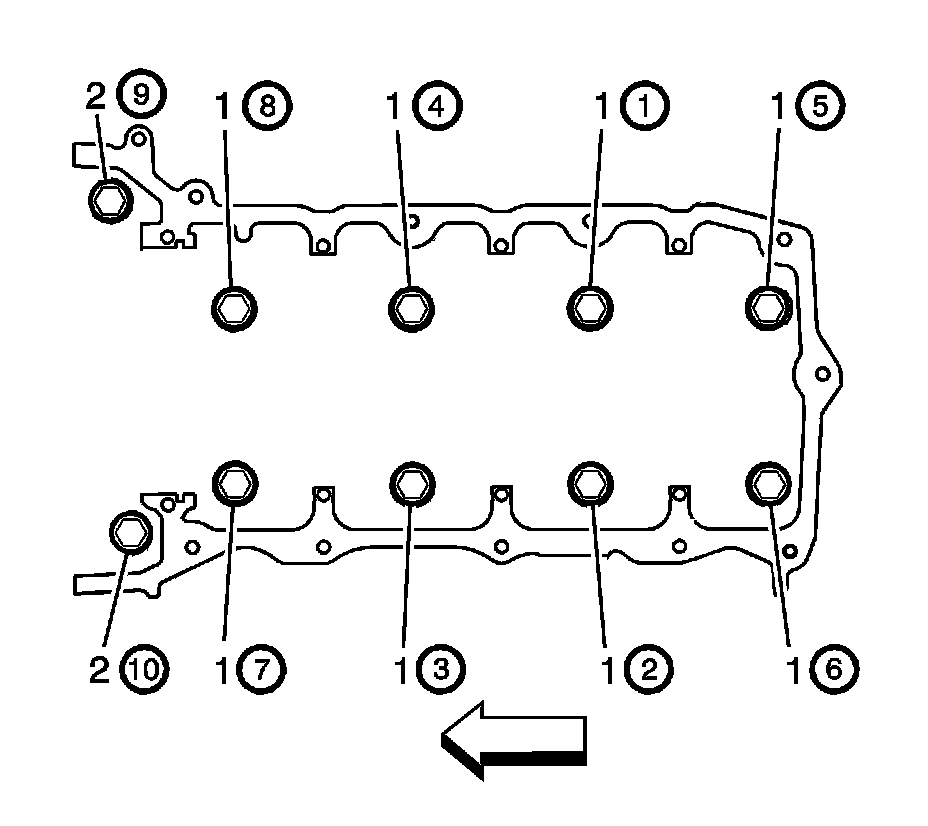

Right Sequence:

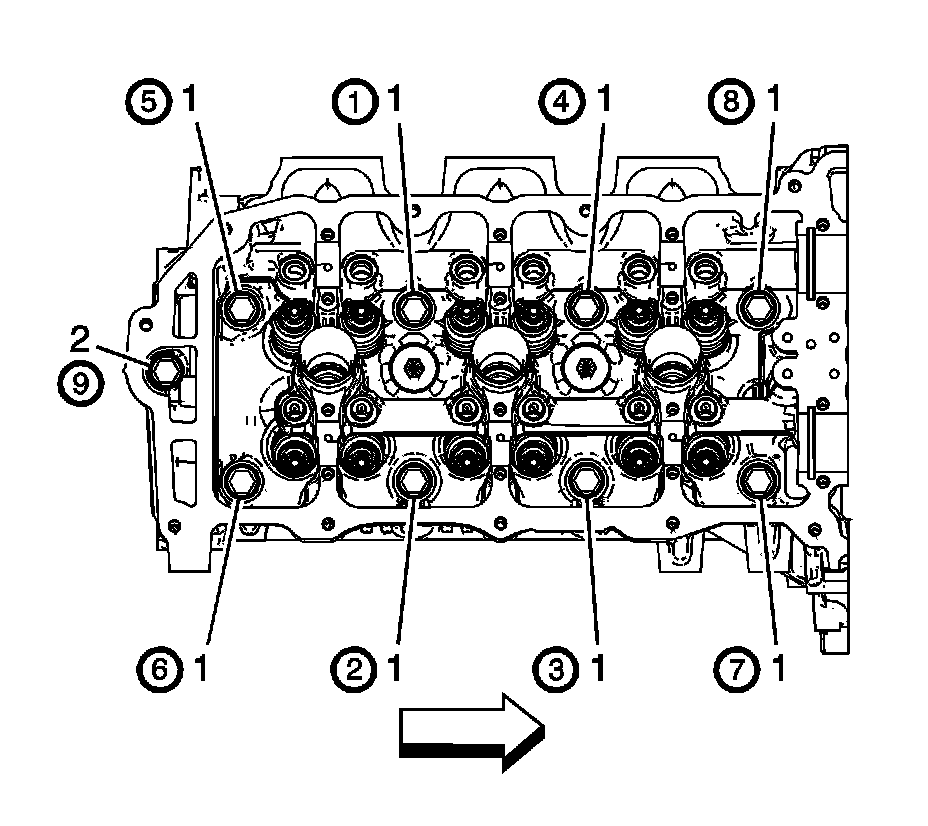

Left Sequence:

Warpage less than 0.05 mm (0.002 in)

Camshaft Cap Bolt 10 Nm (89 lb in)

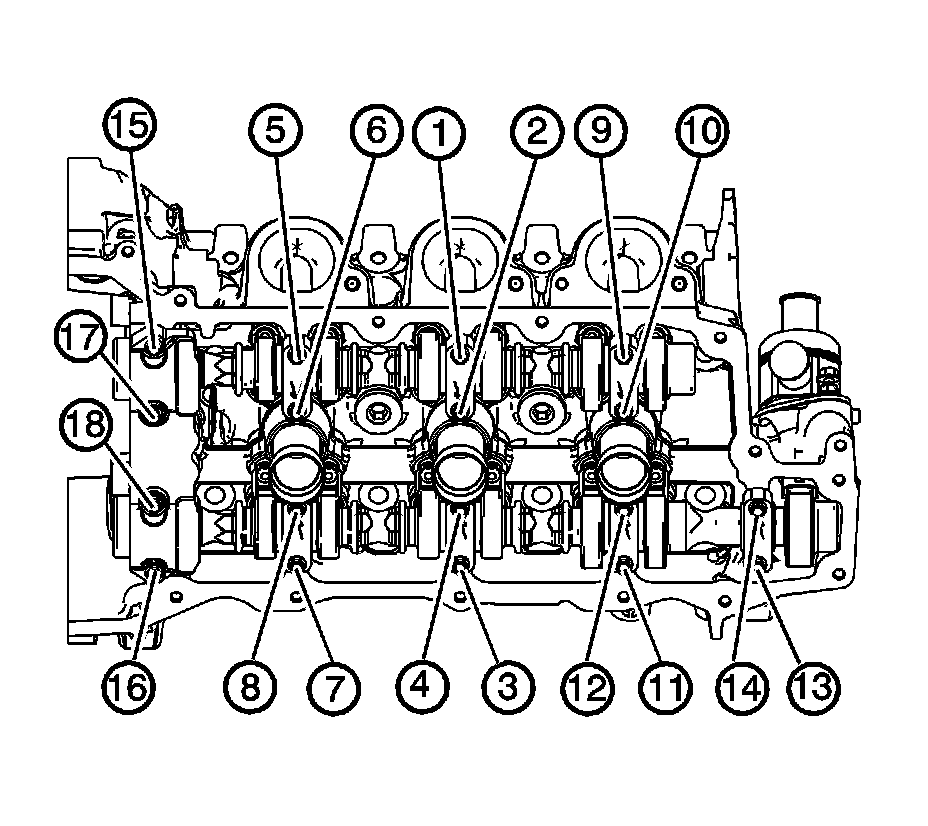

Left (DI):

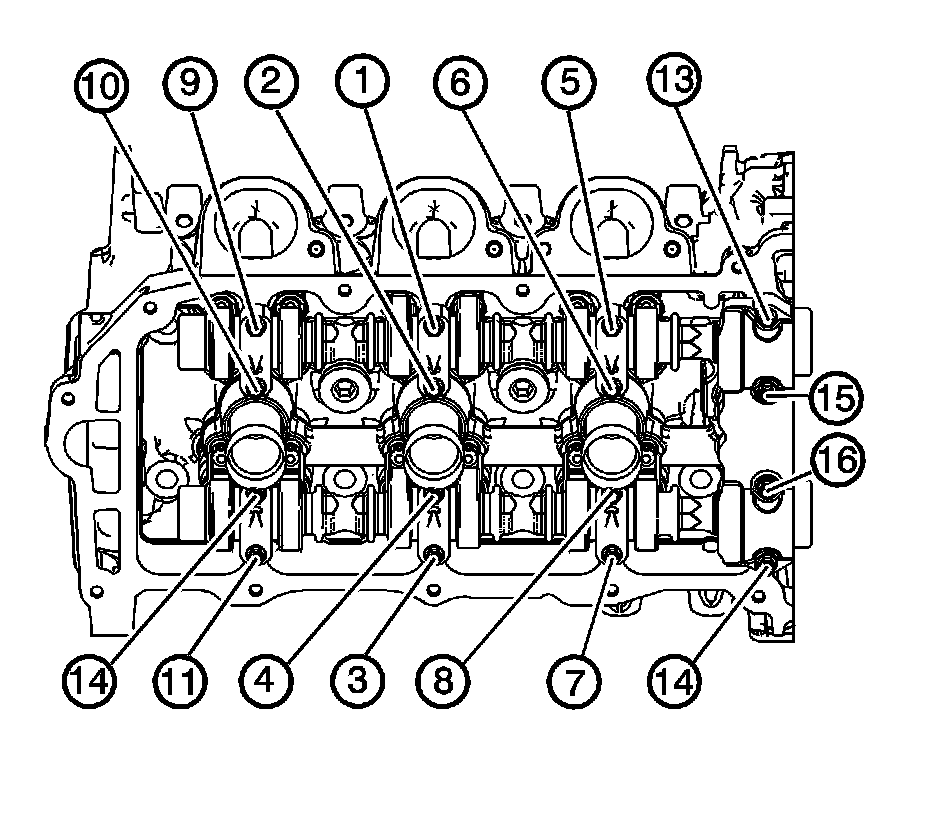

Right (DI):

Intake manifold Specifications

Exhaust manifold Specifications

Camshaft gear/sprocket Specifications
