Crankshaft Position Sensor: Diagrams




Component Connector End Views

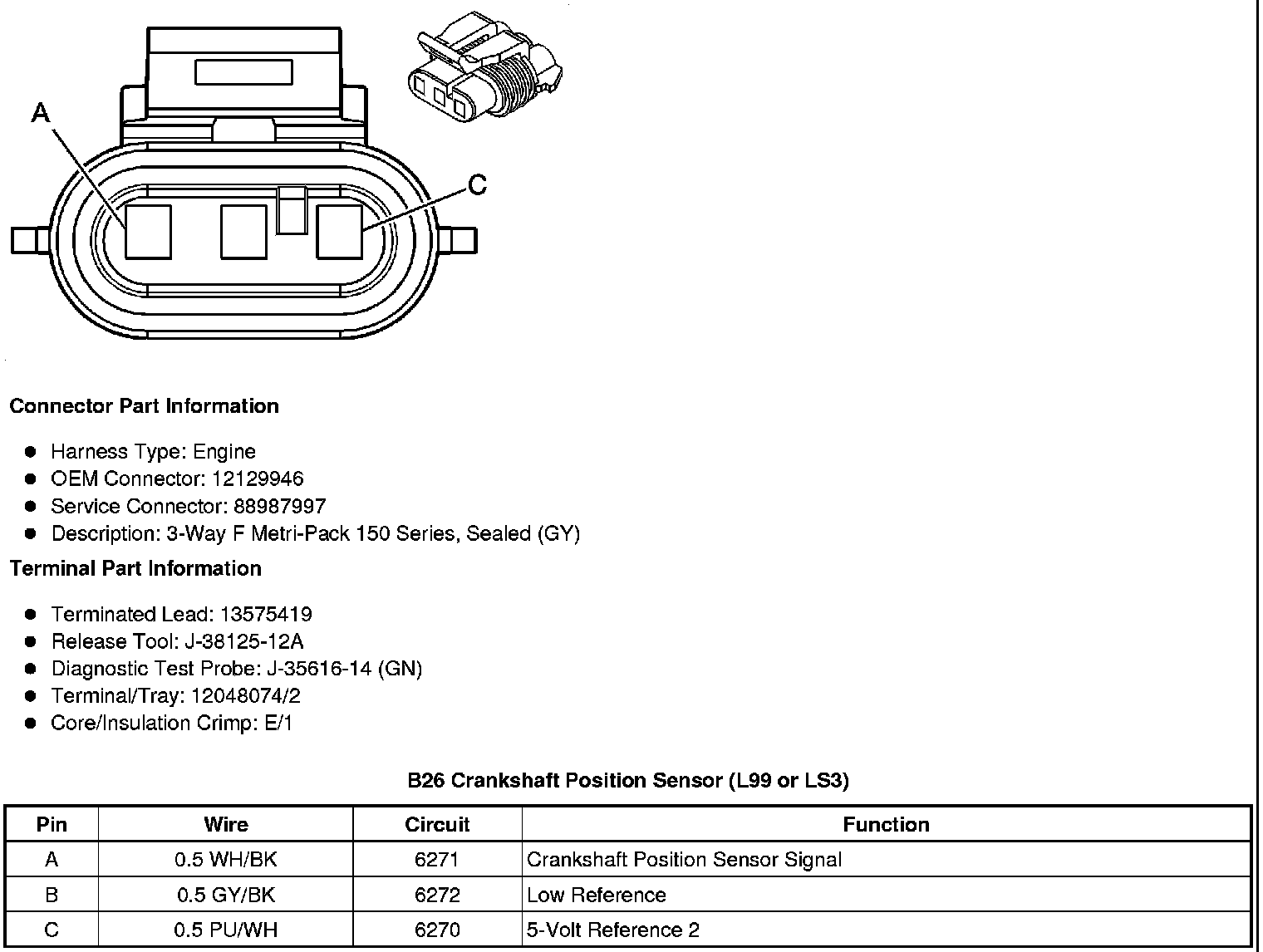

B26 Crankshaft Position Sensor (L99 or LS3)

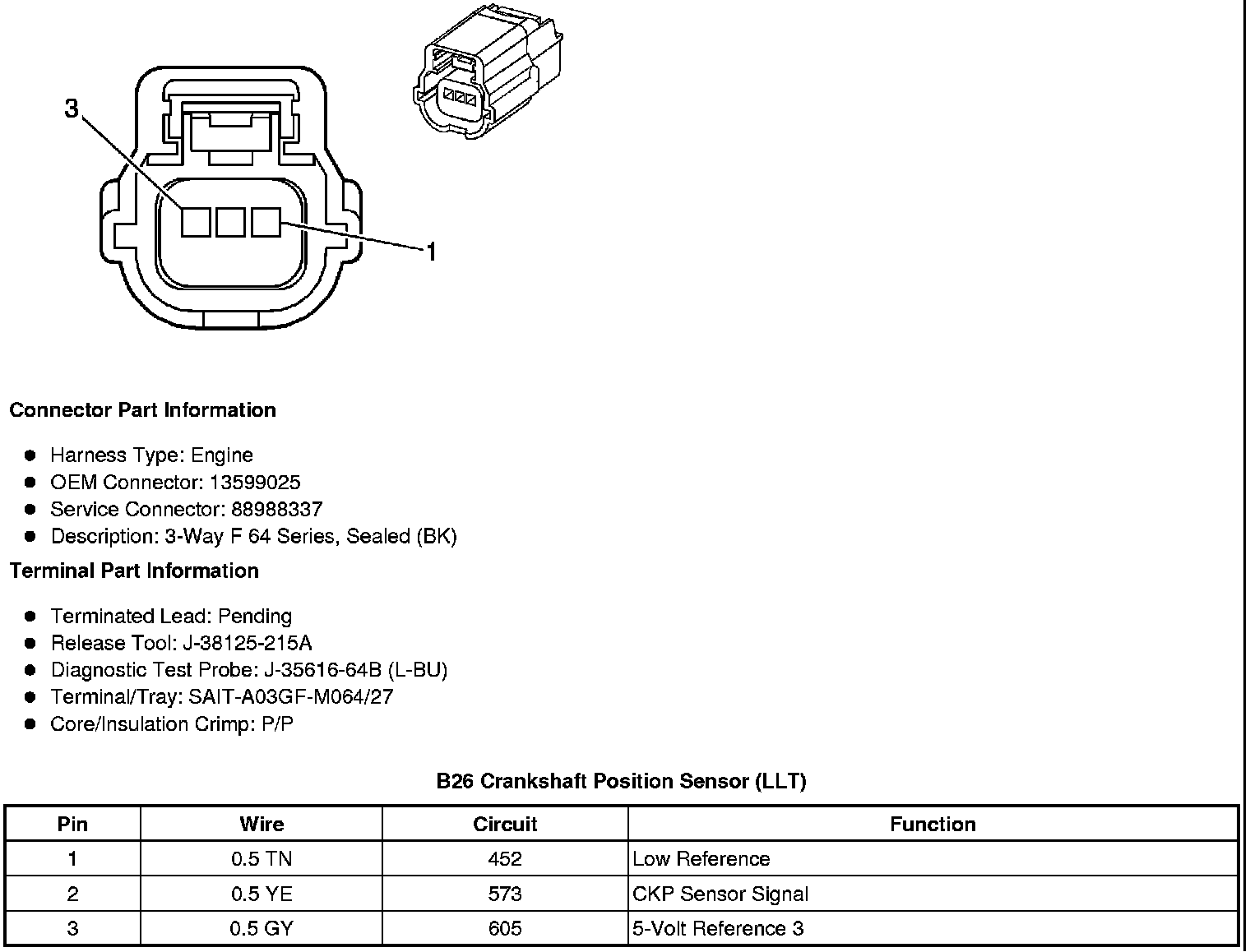

B26 Crankshaft Position Sensor (LLT)
