Driver or Passenger Seat Side Inflatable Restraint Module Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

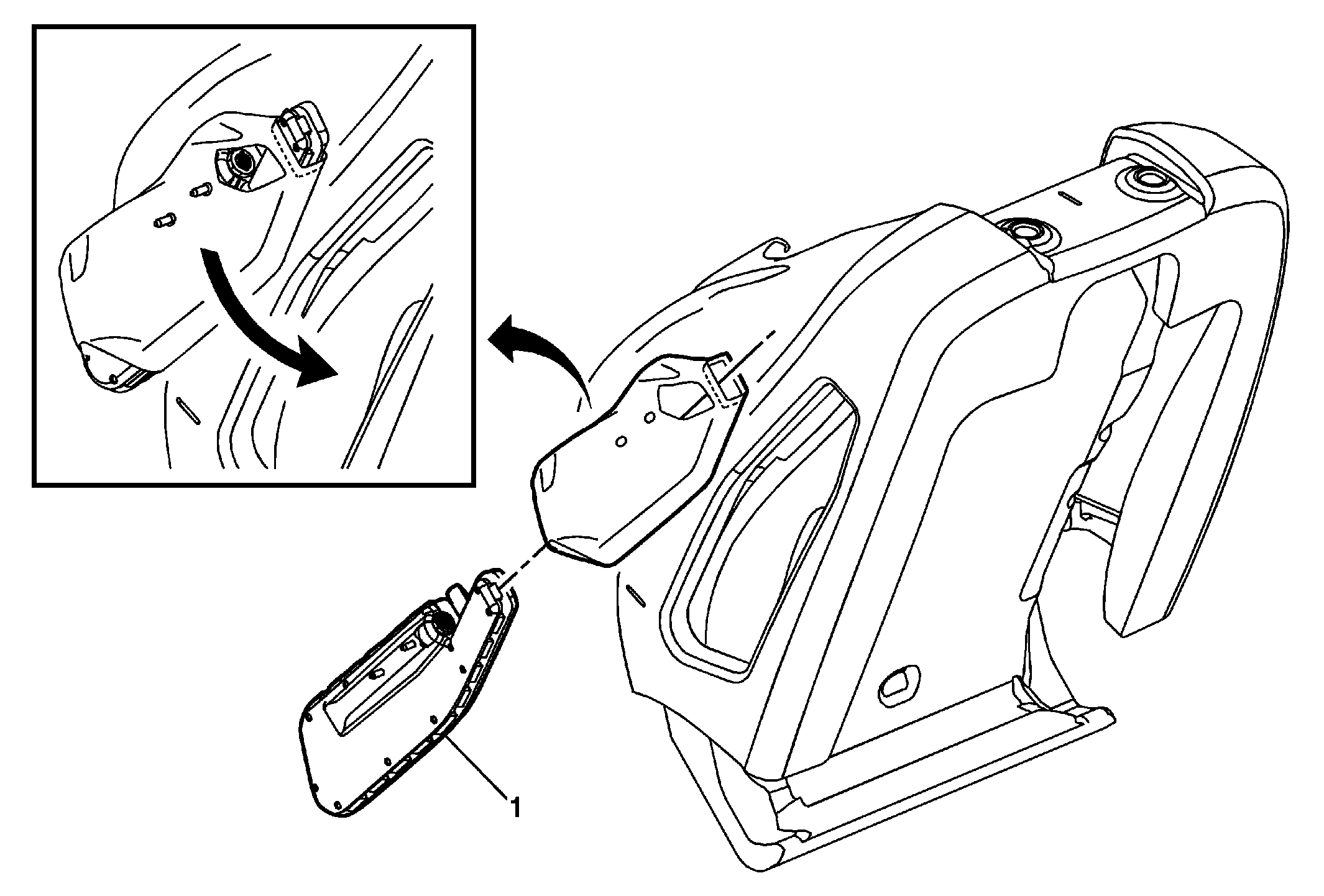

Fig 1: Driver Or Passenger Seat Side Inflatable Restraint Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Following the deployment of a side impact air bag, inspect the following parts for damage. Replace these parts if necessary: The seat cushion frame The seat recliner, if equipped The seat adjuster The seat back frame Failure to do so may cause future personal injury. WARNING: Do not repair or replace the seat stitching or seams in the seat back trim cover with an internal mounted seat side airbag module. Replace the complete seat back trim cover from the OEM. Non-OEM seat stitching may cause improper airbag deployment which could result in personal injury. Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the front seat. Refer to Driver or Passenger Seat Replacement . Remove the front seat back cushion cover and pad. Refer to Driver or Passenger Seat Back Cushion Cover and Pad Replacement .
1	Inflatable Restraint Front Seat Side Module Procedure Remove the module out of the chute by removing it through the bottom opening of the chute. When installing the airbag module into the seat trim cover chute, ensure there is no twisting of the chute by fitting the module studs through the chute holes for proper alignment and also make sure that the top of the module protrudes through the correct access hole. Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflatable Restraint Module Handling and Scrapping .

Callout

Component Name

WARNING: Following the deployment of a side impact air bag, inspect the following parts for damage. Replace these parts if necessary:

The seat cushion frame
The seat recliner, if equipped
The seat adjuster
The seat back frame

Failure to do so may cause future personal injury.

WARNING: Do not repair or replace the seat stitching or seams in the seat back trim cover with an internal mounted seat side airbag module. Replace the complete seat back trim cover from the OEM. Non-OEM seat stitching may cause improper airbag deployment which could result in personal injury.

Preliminary Procedure

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the front seat. Refer to Driver or Passenger Seat Replacement .
Remove the front seat back cushion cover and pad. Refer to Driver or Passenger Seat Back Cushion Cover and Pad Replacement .

Inflatable Restraint Front Seat Side Module

Procedure

Remove the module out of the chute by removing it through the bottom opening of the chute.
When installing the airbag module into the seat trim cover chute, ensure there is no twisting of the chute by fitting the module studs through the chute holes for proper alignment and also make sure that the top of the module protrudes through the correct access hole.
Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflatable Restraint Module Handling and Scrapping .
