Radio and Telephone Control Switch Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

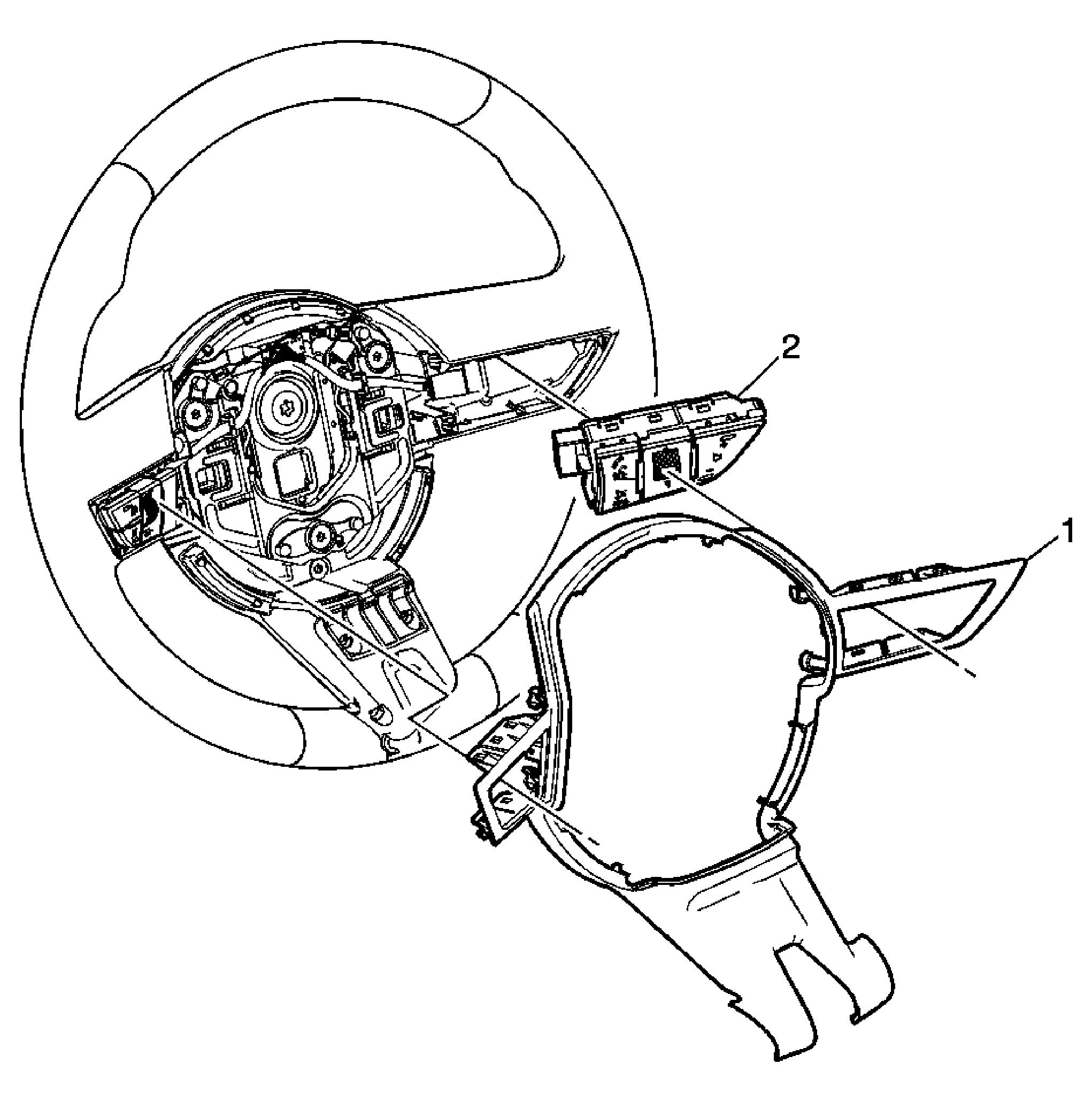

Fig 1: Radio & Telephone Control Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Airbag Replacement .
1	Steering Wheel Spoke Control Switch Bezel Refer to Steering Wheel Spoke Control Switch Bezel Replacement
2	Radio and Telephone Control Switch Assembly Procedure Disconnect the electrical connectors. Make sure the steering wheel control switches are properly seated to the steering wheel trim cover during installation.

Callout

Component Name

Preliminary Procedure:
Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Airbag Replacement .

Steering Wheel Spoke Control Switch Bezel
Refer to Steering Wheel Spoke Control Switch Bezel Replacement

Radio and Telephone Control Switch Assembly

Procedure

Disconnect the electrical connectors.
Make sure the steering wheel control switches are properly seated to the steering wheel trim cover during installation.
