Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

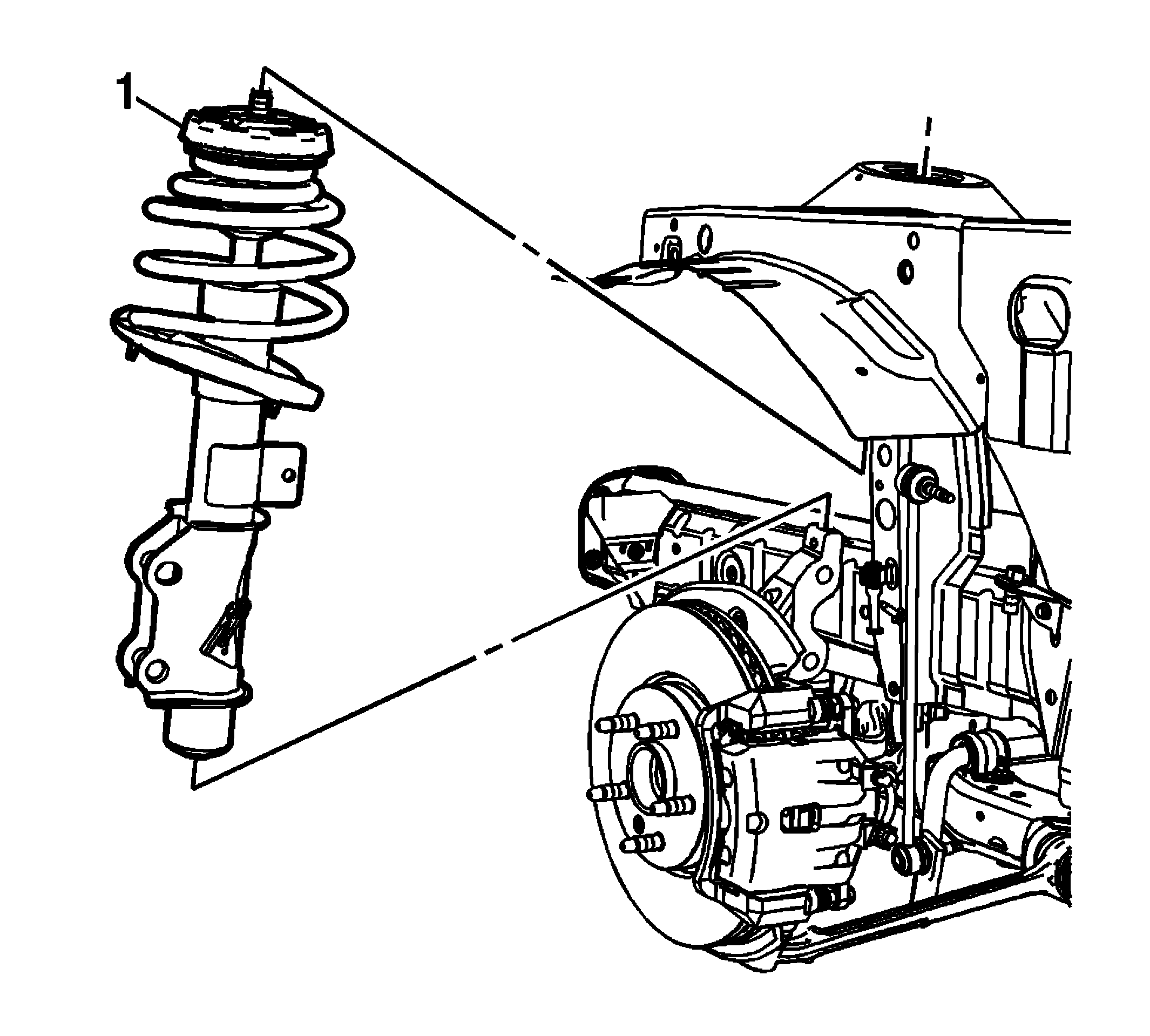

    Fig 1: Front Suspension Strut
    GM2195888Courtesy of GENERAL MOTORS CORP.
  1. Position the front strut assembly (1) in the vehicle.

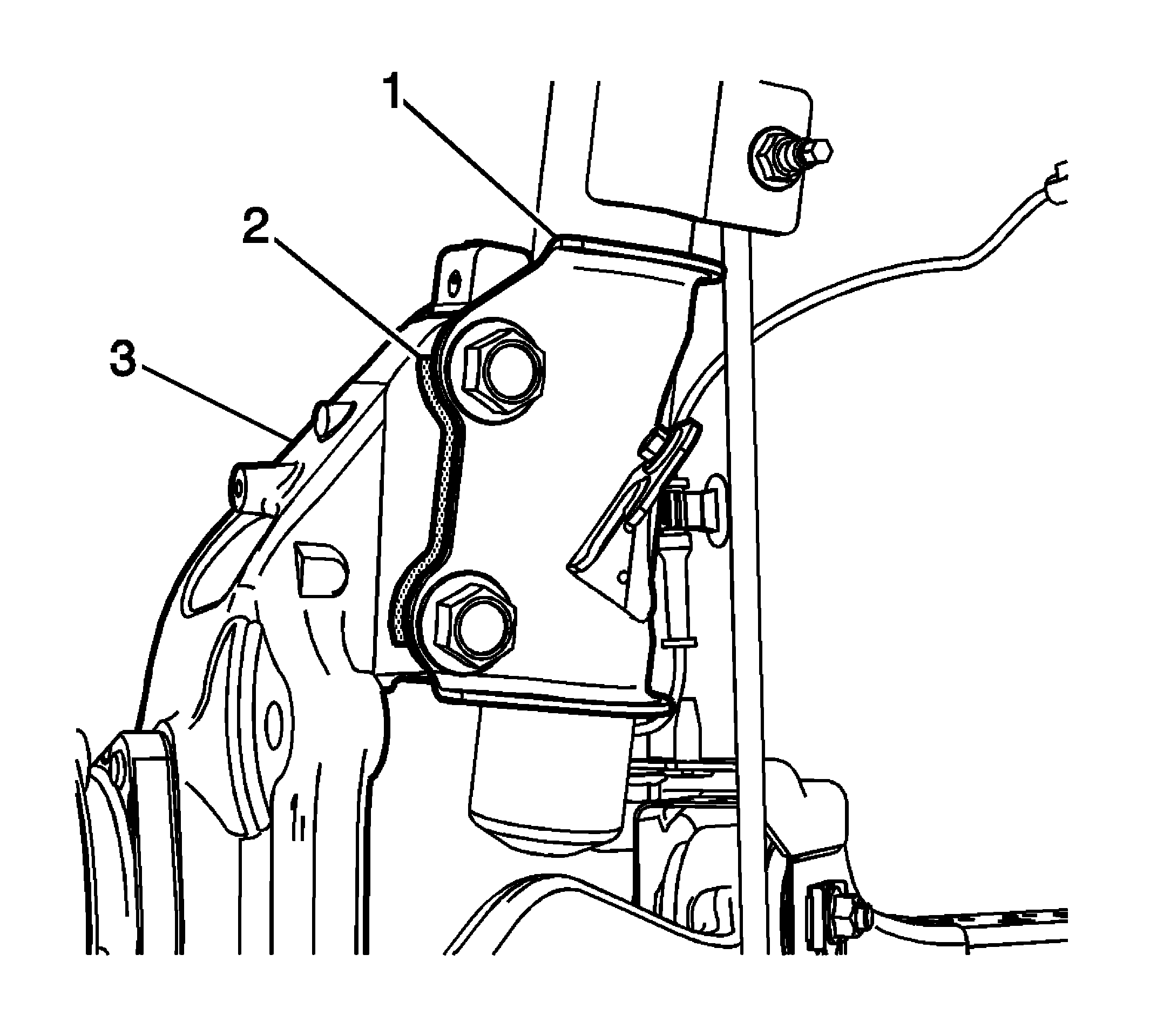

    2. Fig 2: Mark On Steering Knuckle & Strut Assembly
    GM2195609Courtesy of GENERAL MOTORS CORP.
  2. Align the front strut (1) with the alignment mark (2).

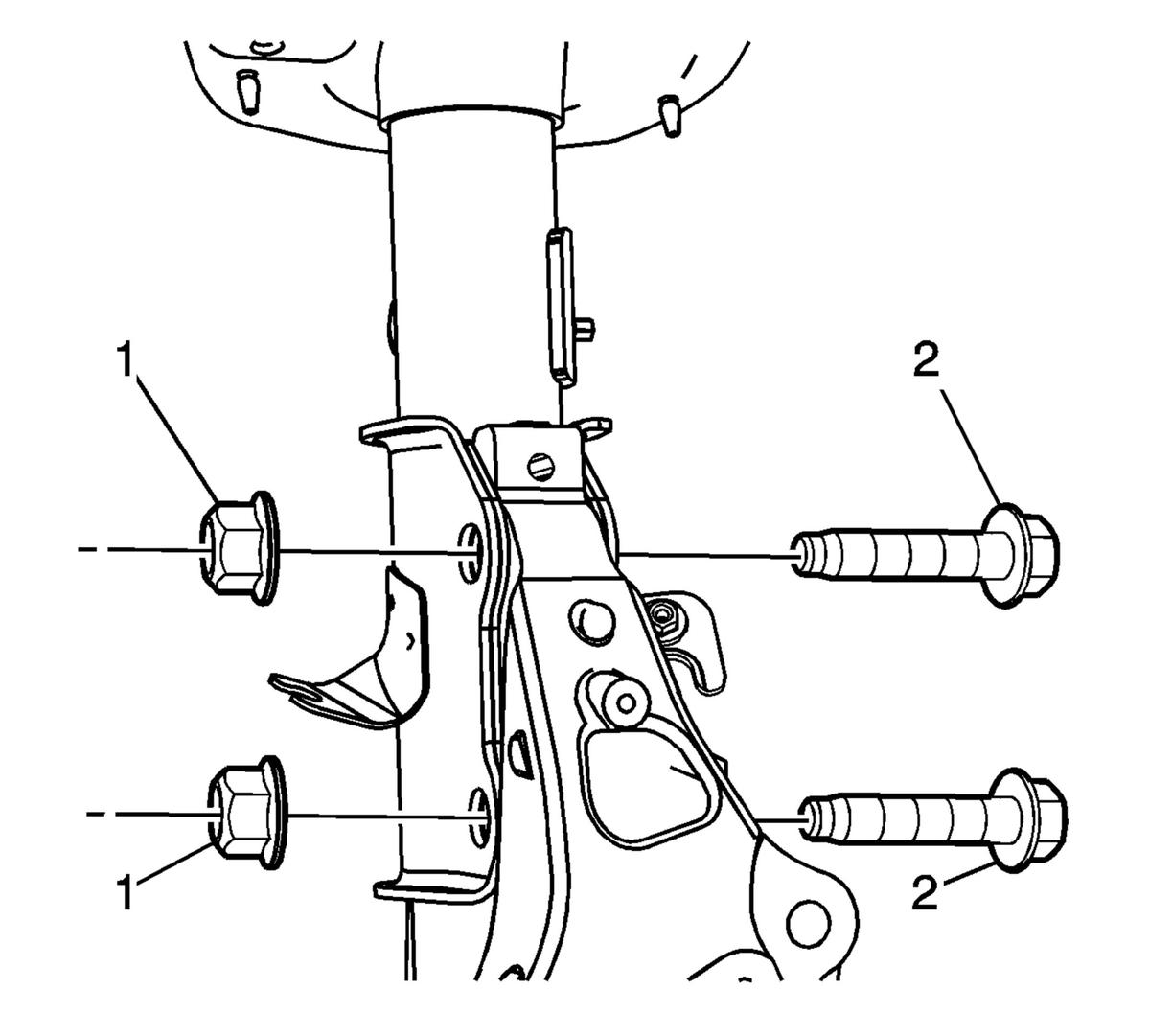

    3. Fig 3: Front Strut Nuts & Bolts
    GM2195813Courtesy of GENERAL MOTORS CORP.
  3. Install the front strut bolts (2).
    4. CAUTION: Refer to Fastener Caution .
  4. Install the nuts (1) and tighten to 80 N.m (59 lb ft) plus an additional 180 degrees.

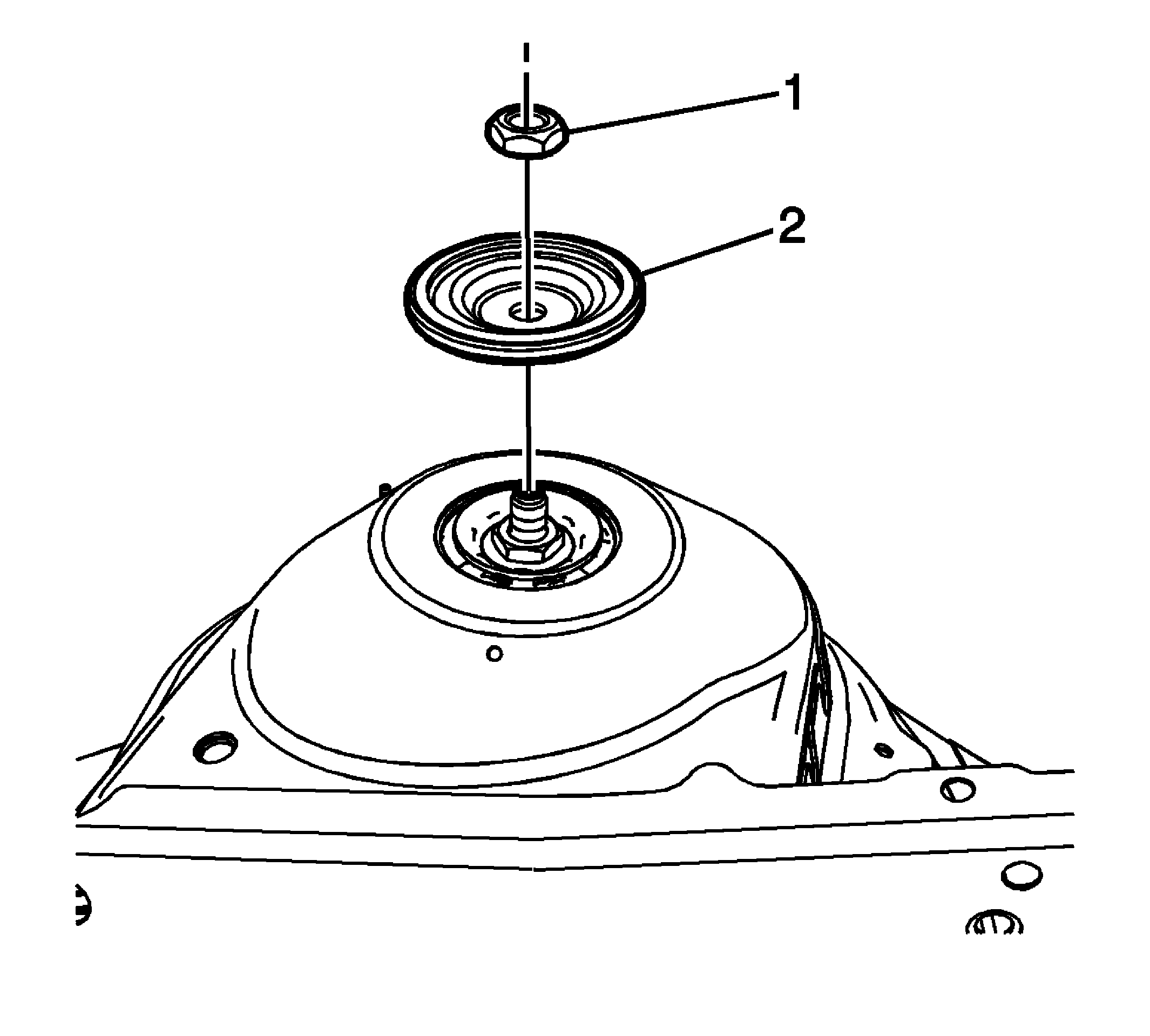

    5. Fig 4: Front Suspension Nut & Washer
    GM2195831Courtesy of GENERAL MOTORS CORP.
  5. Install the front suspension strut mounting plate (2).
  6. Install the front suspension strut nut (1) and tighten to 70 N.m (52 lb ft).
  7. Remove the hydraulic floor jack.
  8. Install the dust cover, if equipped.
  9. Install the stabilizer shaft link. Refer to Stabilizer Shaft Link Replacement .
  10. Install the wheel speed sensor. Refer to Front Wheel Speed Sensor Replacement .
  11. Install the front brake hose. Refer to Front Brake Hose Replacement (LLT) or Front Brake Hose Replacement (LS3, L99) .
  12. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  13. Lower the vehicle.
  14. Check and adjust the front wheel alignment, if needed. Refer to Front Camber Adjustment .
