Removal Procedure

CAUTION:

Handle the electronic throttle control components carefully. Use cleanliness in order to prevent damage. Do not drop the electronic throttle control components. Do not roughly handle the electronic throttle control components. Do not immerse the electronic throttle control components in cleaning solvents of any type.

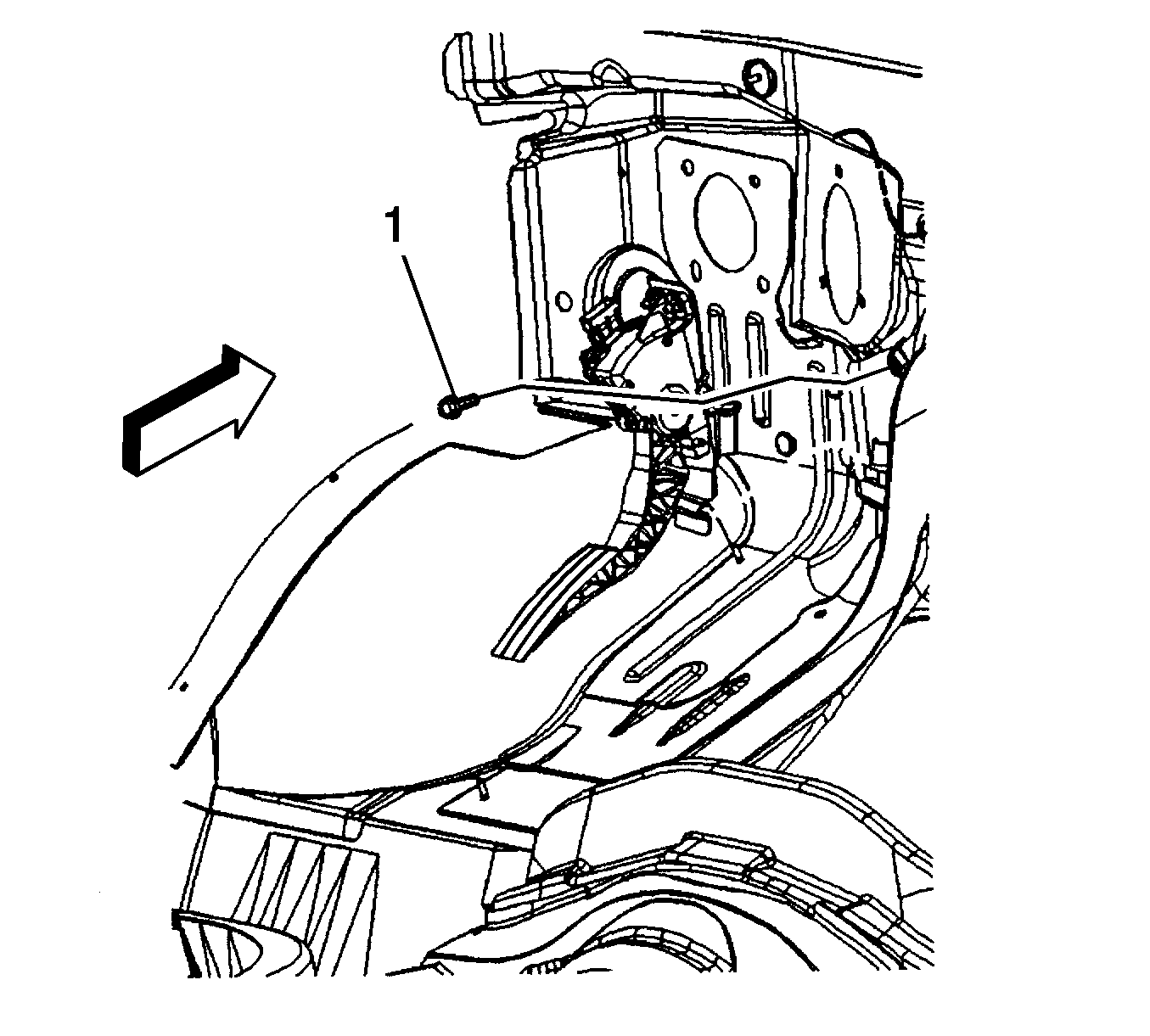

    Fig 1: Connector Position Assurance (CPA) Retainer
    GM1935684Courtesy of GENERAL MOTORS CORP.
  1. Remove the connector position assurance (CPA) retainer.
  2. Disconnect the electrical connector from the accelerator pedal position (APP) sensor.
  3. Remove the accelerator pedal bolt (1).

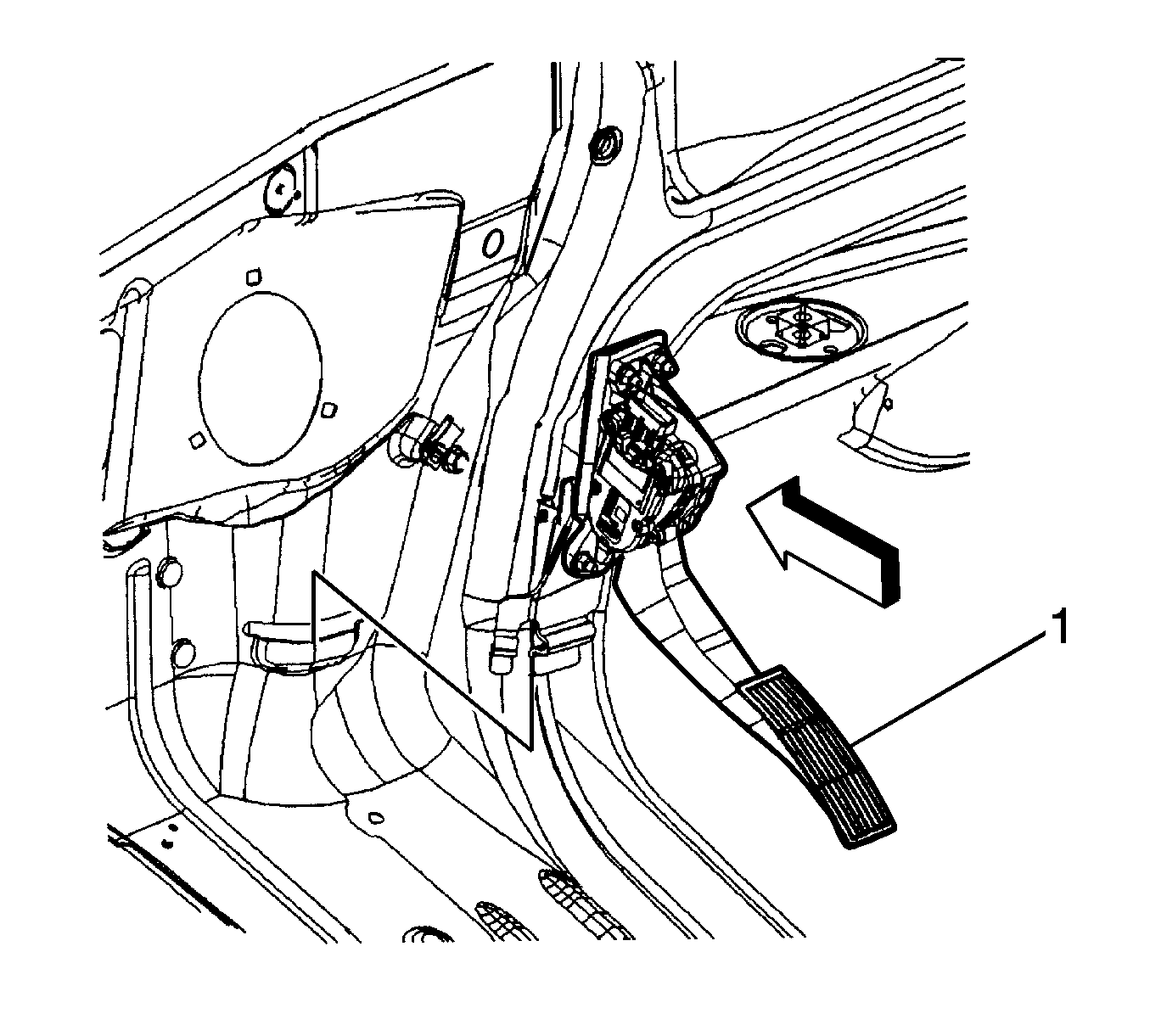

    4. Fig 2: Dash Panel Accelerator Pedal Assembly
    GM1935685Courtesy of GENERAL MOTORS CORP.
  4. Remove the accelerator pedal assembly (1) from the dash panel.
