Installation Procedure

CAUTION:

Replacement components must be the correct part number for the application. Components requiring the use of the thread locking compound, lubricants, corrosion inhibitors, or sealants are identified in the service procedure. Some replacement components may come with these coatings already applied. Do not use these coatings on components unless specified. These coatings can affect the final torque, which may affect the operation of the component. Use the correct torque specification when installing components in order to avoid damage.

CAUTION:

Use care when handling the coolant sensor. Damage to the coolant sensor will affect the operation of the fuel control system.

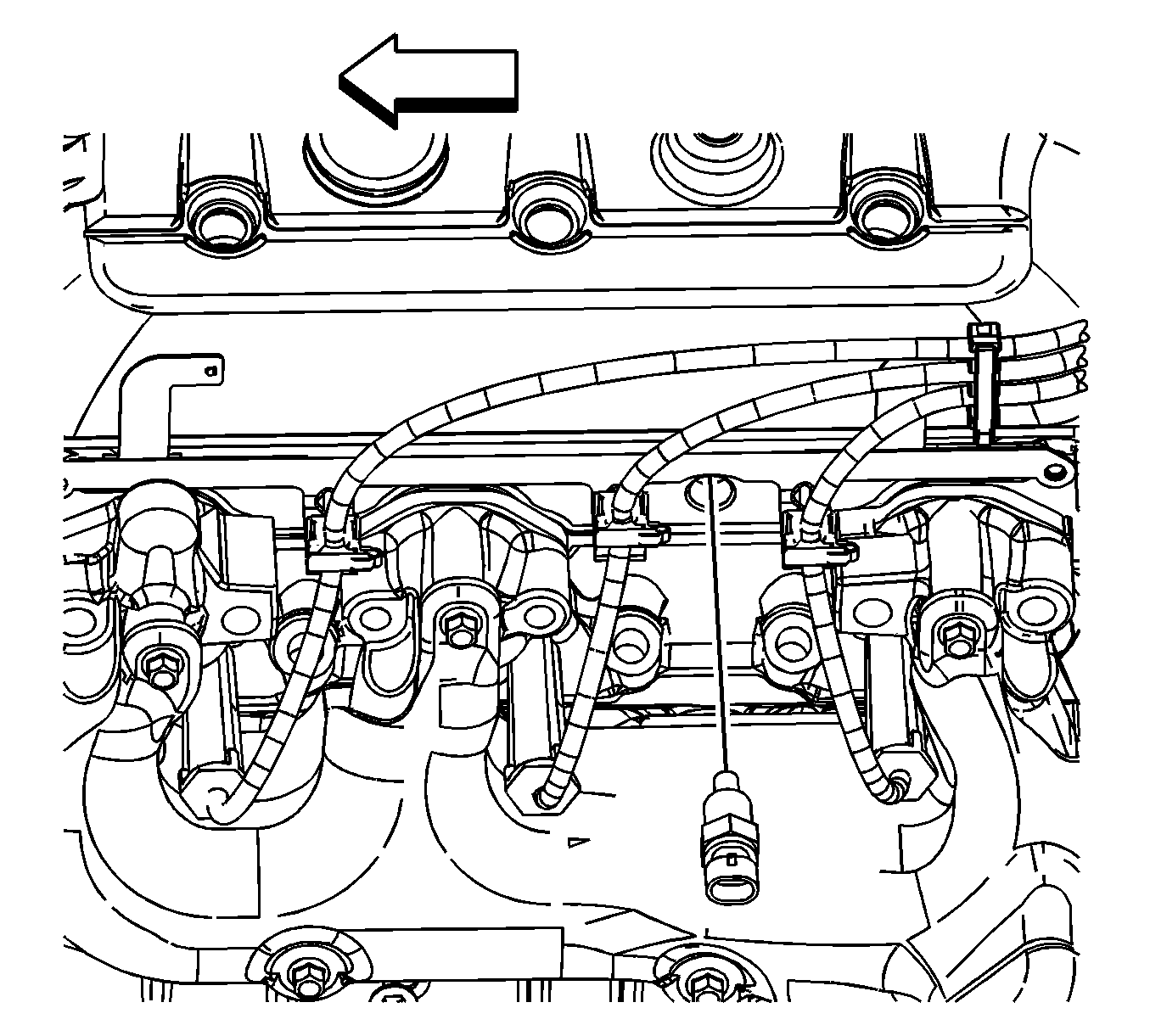

    Fig 1: ECT Sensor
    GM1876211Courtesy of GENERAL MOTORS CORP.
  1. If re-installing the old sensor, coat the threads with sealant GM P/N 12346004 (Canadian P/N 10953480), or equivalent.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the ECT sensor to the cylinder head and tighten to 20 N.m (15 lb ft).

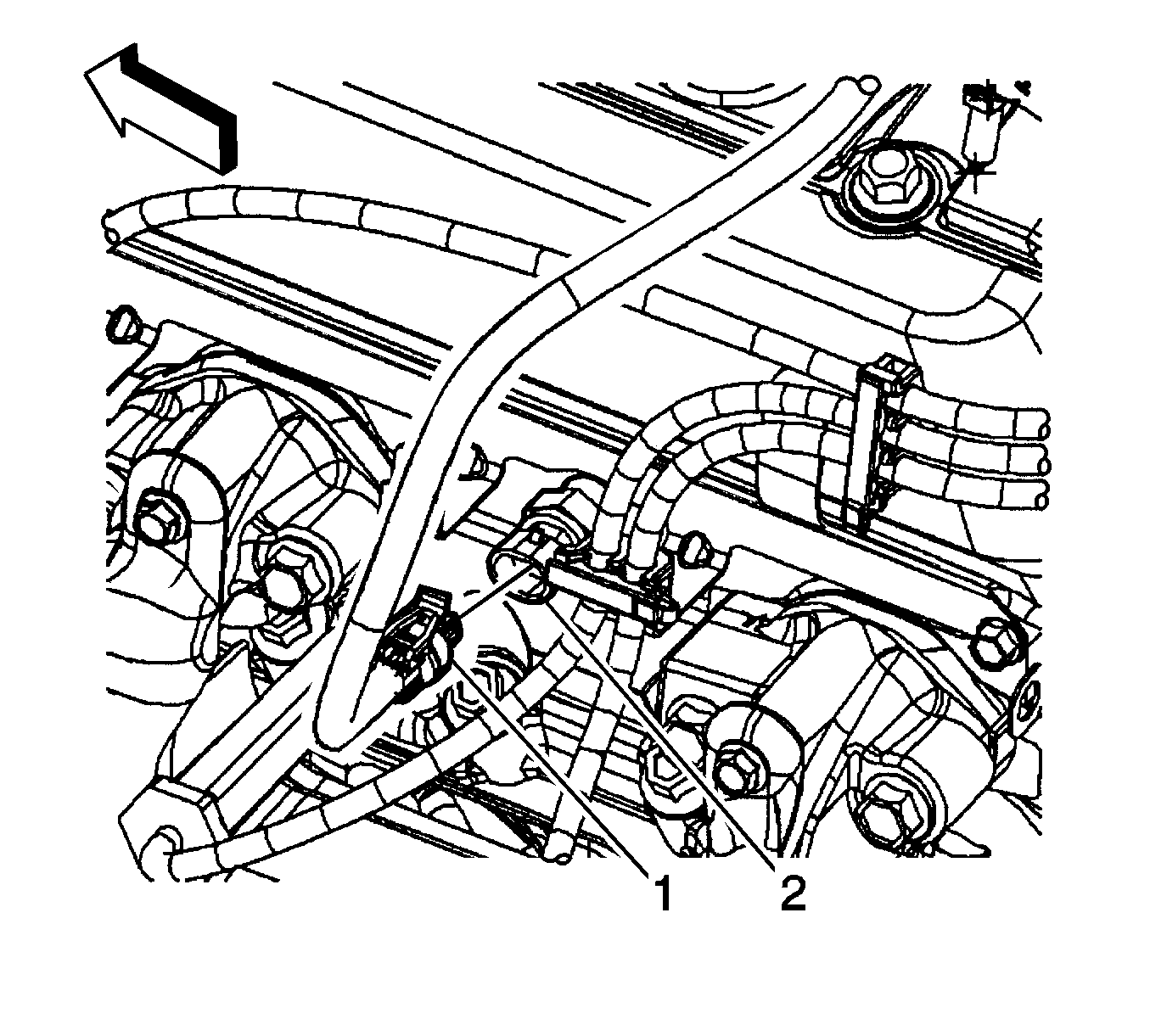

    3. Fig 2: Engine Coolant Temperature Sensor
    GM1934571Courtesy of GENERAL MOTORS CORP.
  3. Connect the engine wiring harness electrical connector (1) to the ECT sensor (2).
  4. Fill the cooling system. Refer to Cooling System Draining and Filling (Static Fill) , Cooling System Draining and Filling (Vac N Fill) , Cooling System Draining and Filling (Static Fill Diesel) .
  5. Install the engine cover. Refer to Engine Cover Replacement .
