Gear Sensor/Switch: Service and Repair

Transfer Case Neutral Switch Replacement

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).

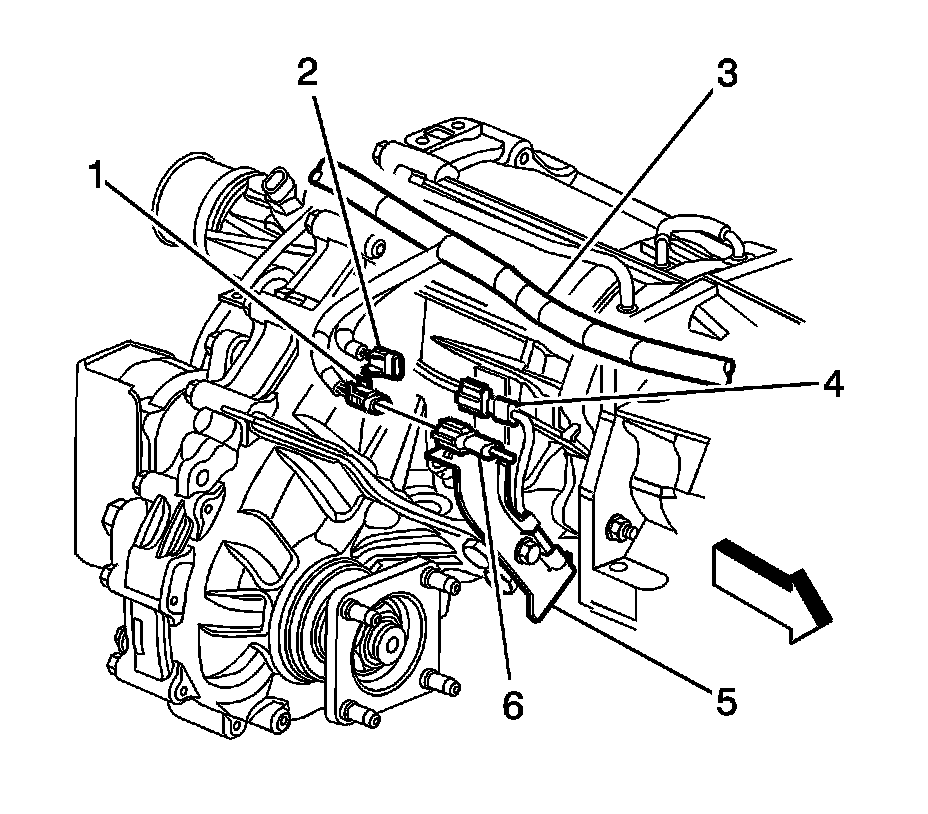

2. Disconnect the brown engine wiring harness electrical connector (1) from the brown NEUTRAL switch electrical connector (6).




3. Disconnect the brown NEUTRAL switch electrical connector (2) from the bracket (3).

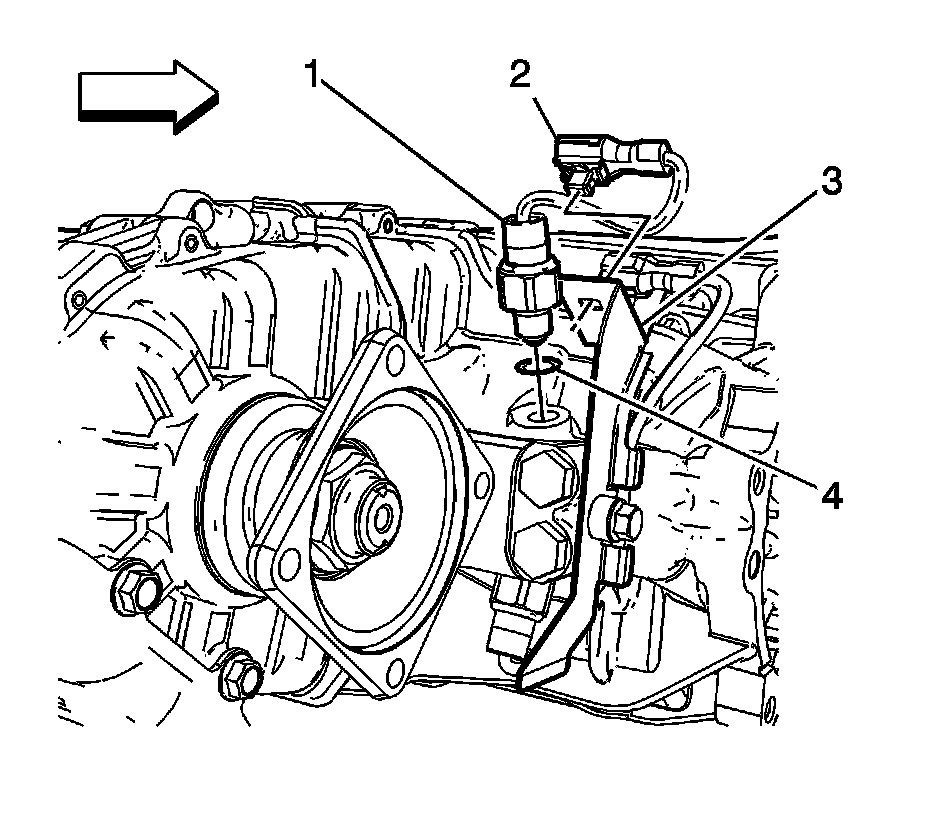

4. Remove the transfer case NEUTRAL switch (1) and gasket (4) from the transfer case.

Installation Procedure





Caution: Refer to Component Fastener Tightening Caution (Component Fastener Tightening Caution).

1. Install the transfer case NEUTRAL switch (1) and gasket (4) into the transfer case.
Tighten the neutral switch to 39 Nm (29 lb ft).
2. Connect the brown NEUTRAL switch electrical connector (2) to the bracket (3).




3. Connect the brown engine wiring harness electrical connector (1) to the brown NEUTRAL switch electrical connector (6).
4. Lower the vehicle.
