System Diagram




Component Connector End Views

Seat Lumbar Pump/Control Module - Driver

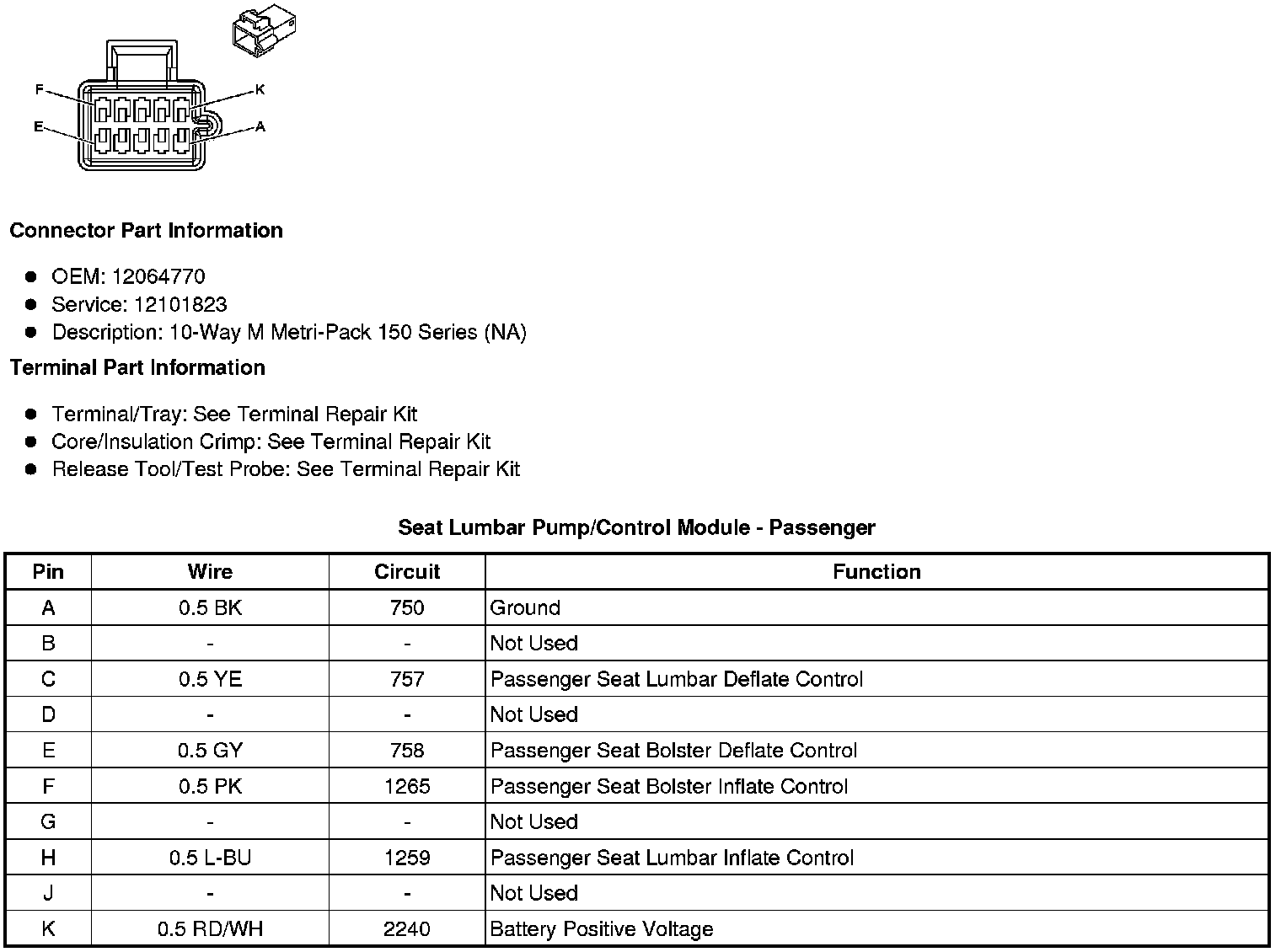

Seat Lumbar Pump/Control Module - Passenger
