Convertible Top Switch




Component Connector End Views

Folding Top 5-Bow Lowered Switch (CM7)





Folding Top 5-Bow Raised Switch (CM7)





Folding Top Closed Position Switch (CM7)

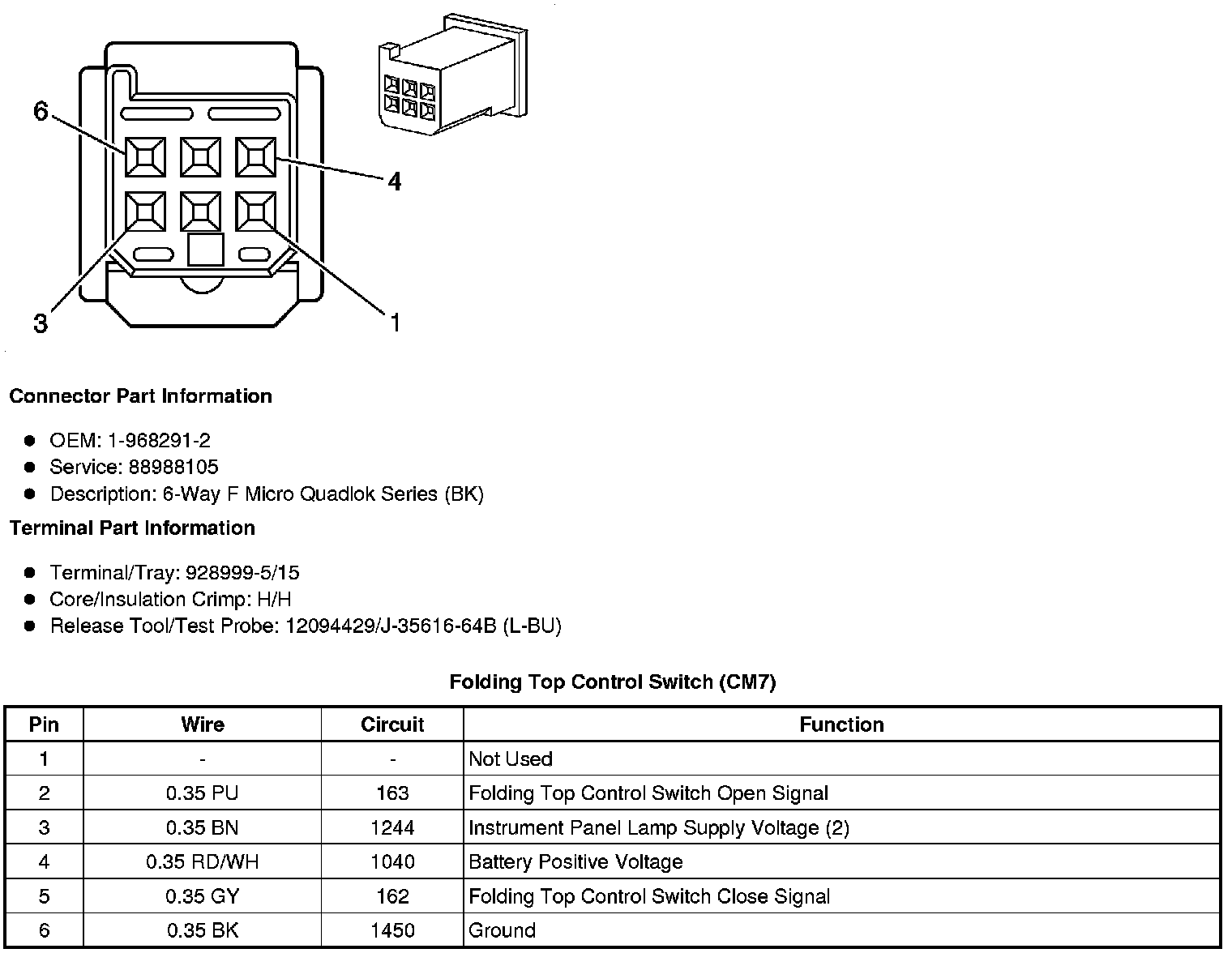

Folding Top Control Switch (CM7)





Folding Top Front Latch Switch (CO5/CM7)





Folding Top Open Position Switch (CM7)





Folding Top Release Switch (C05)





Folding Top Stowage Compartment Lid Release Switch (CM7)
