Front Door Latch




Component Connector End Views

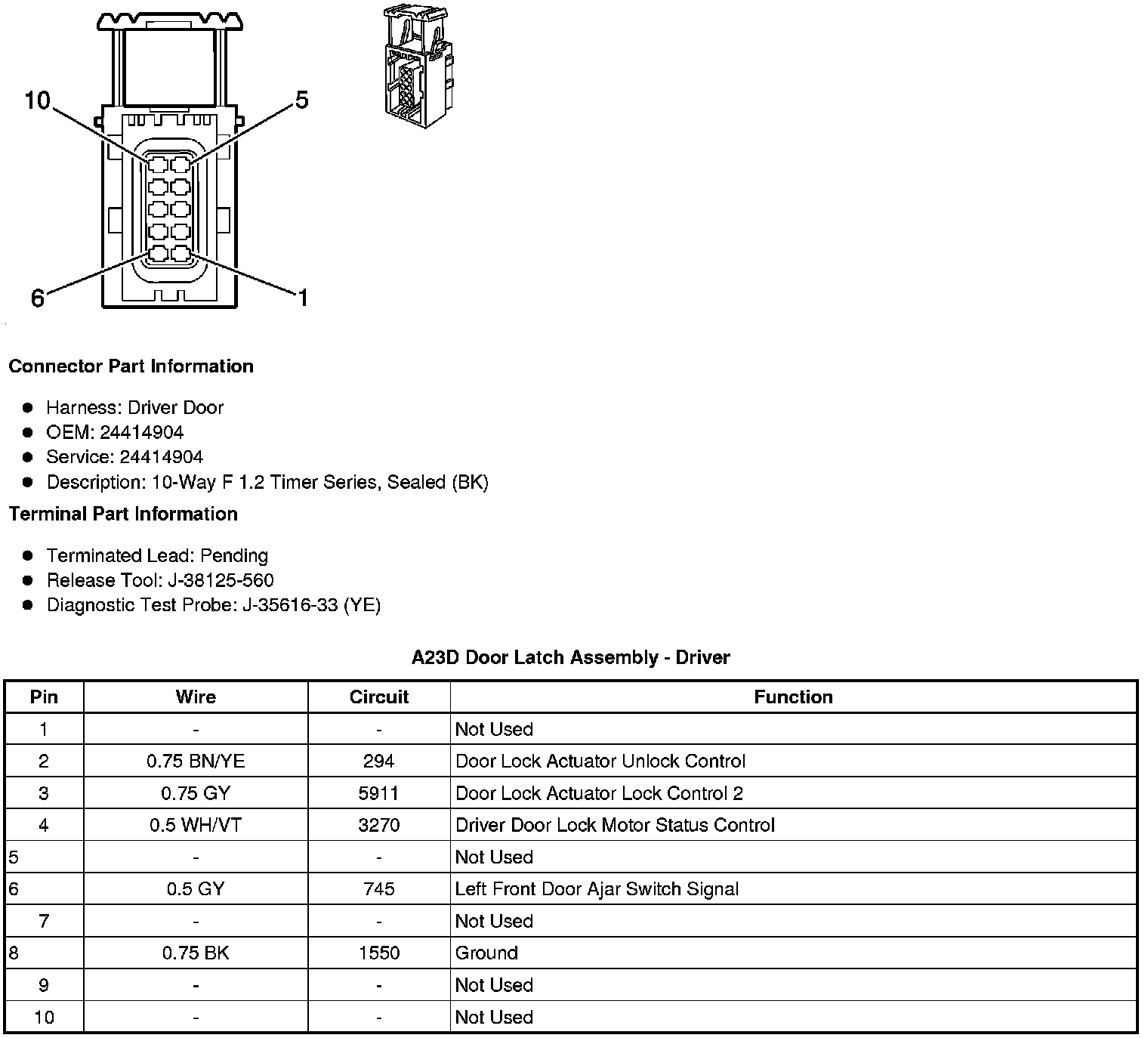

A23D Door Latch Assembly - Driver

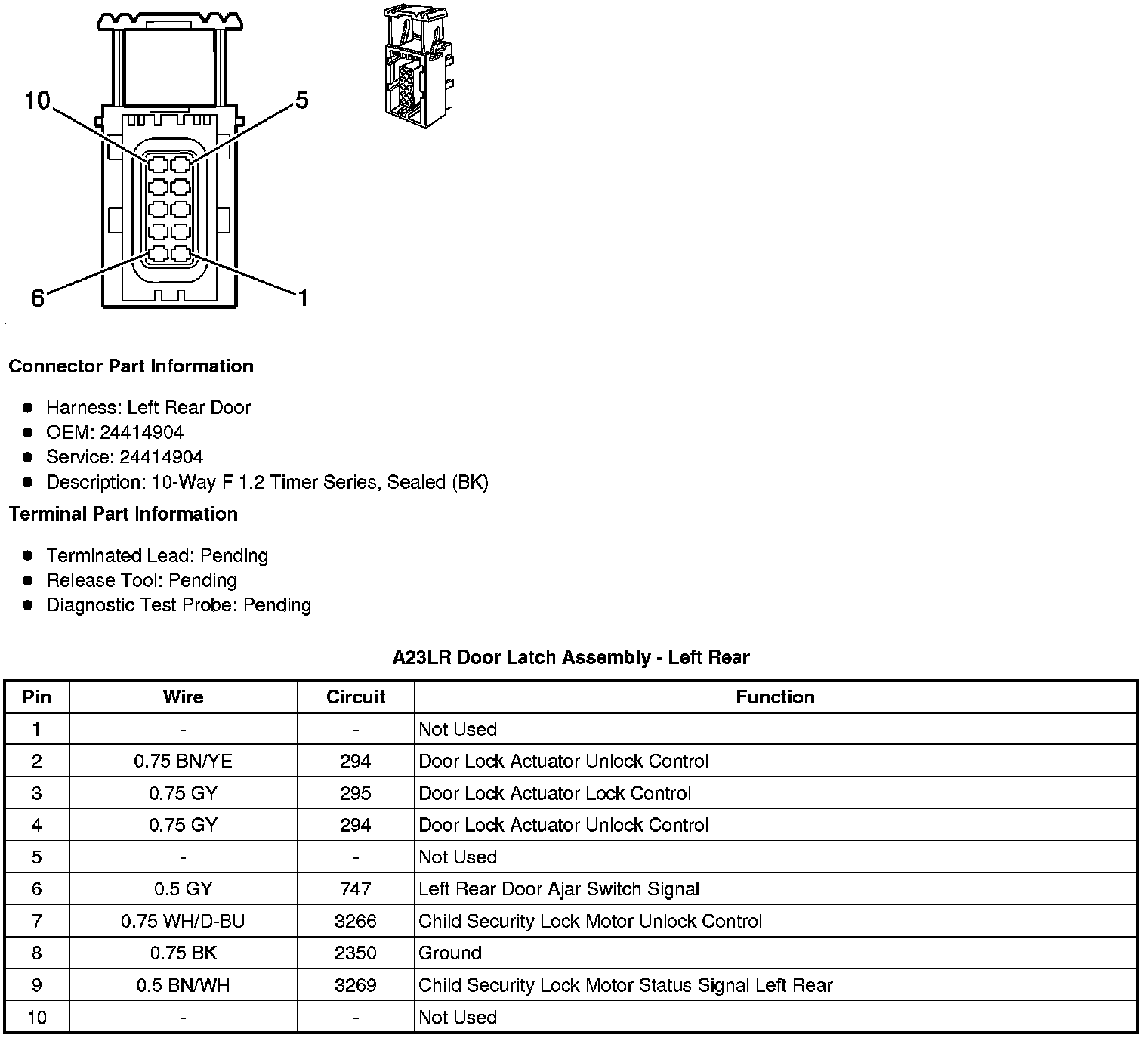

A23LR Door Latch Assembly - Left Rear

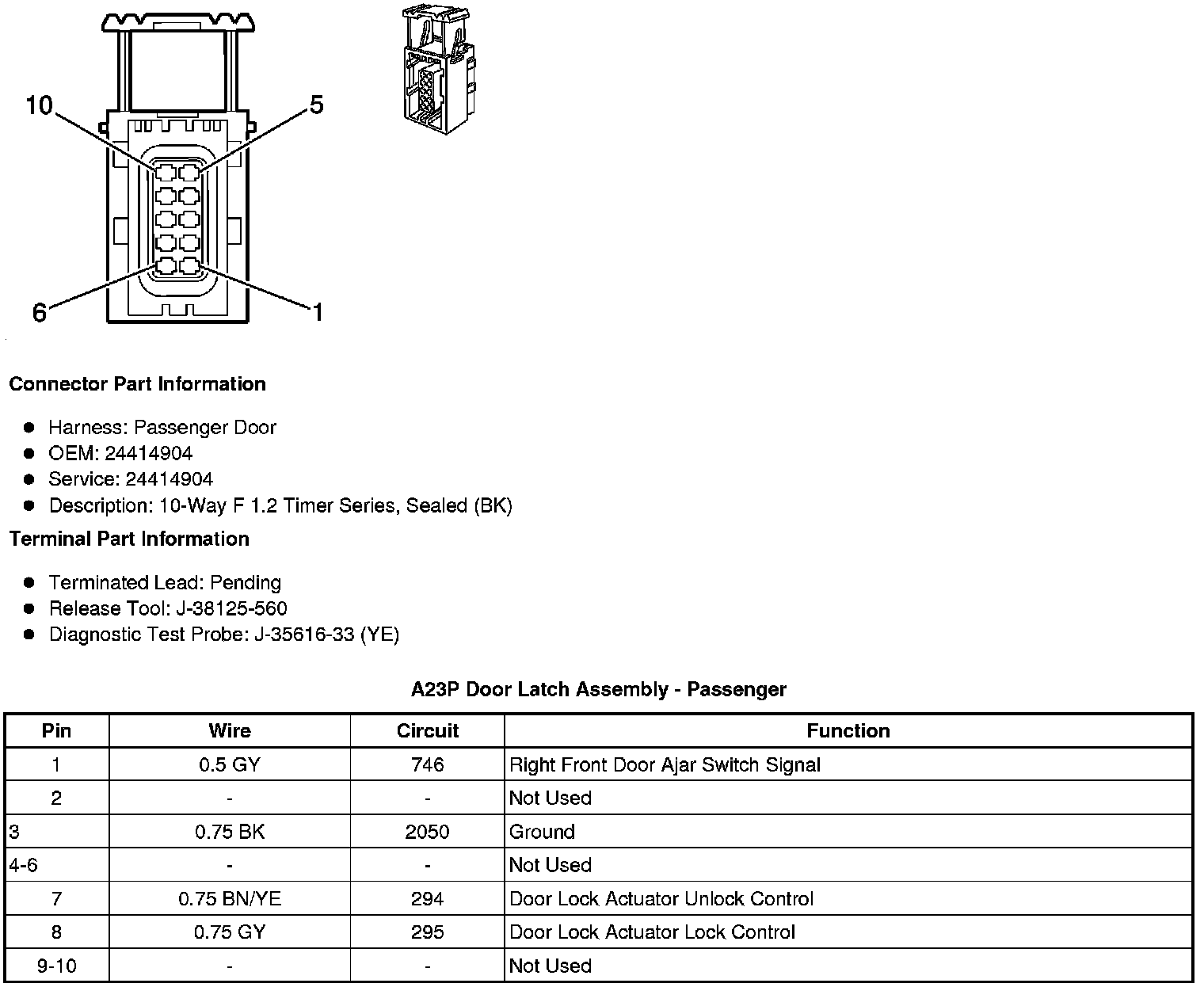

A23P Door Latch Assembly - Passenger

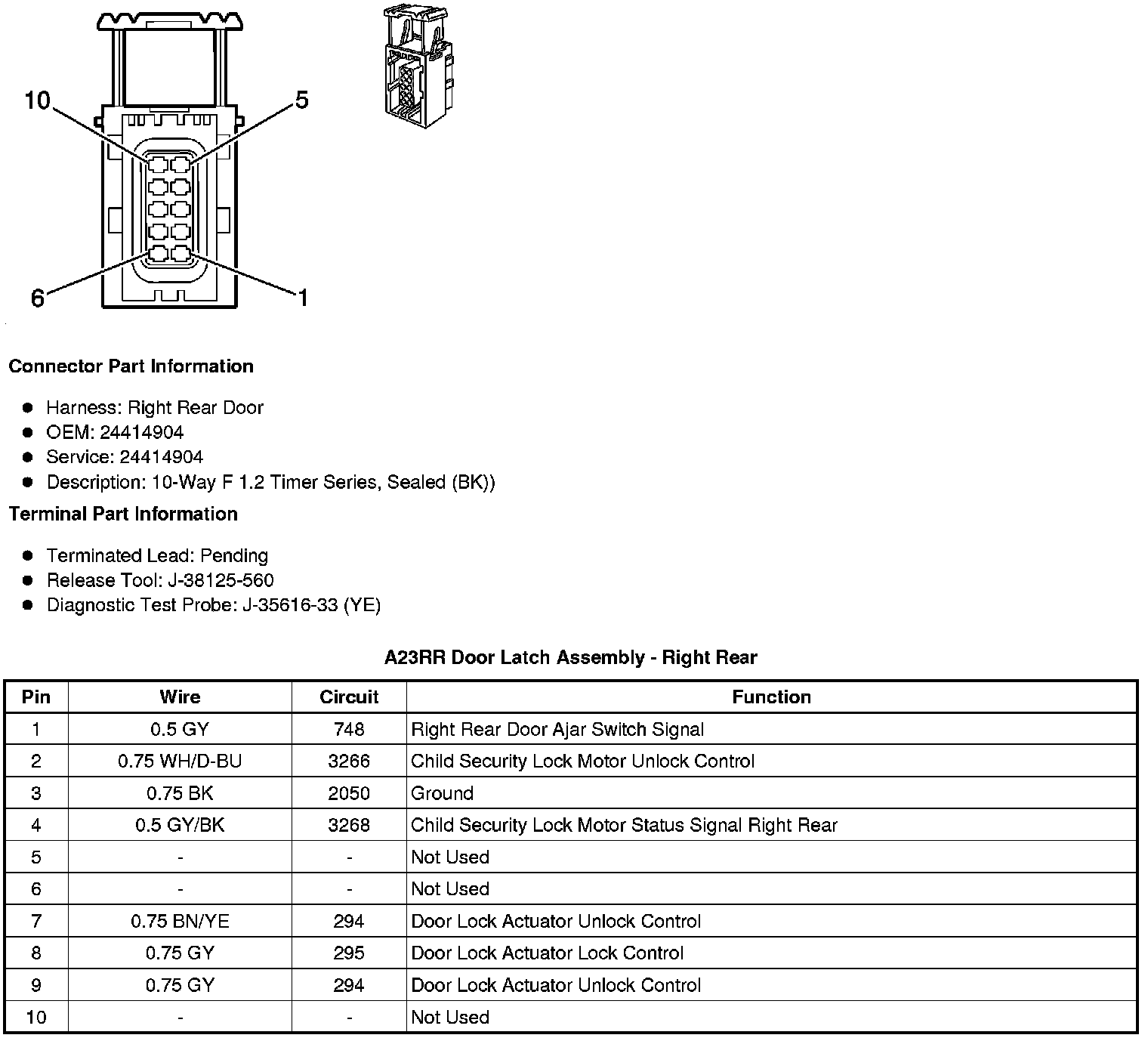

A23RR Door Latch Assembly - Right Rear
