Fuse Block Replacement

Fuse Block Replacement

Removal Procedure

1. Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (Battery Negative Cable Disconnection and Connection)

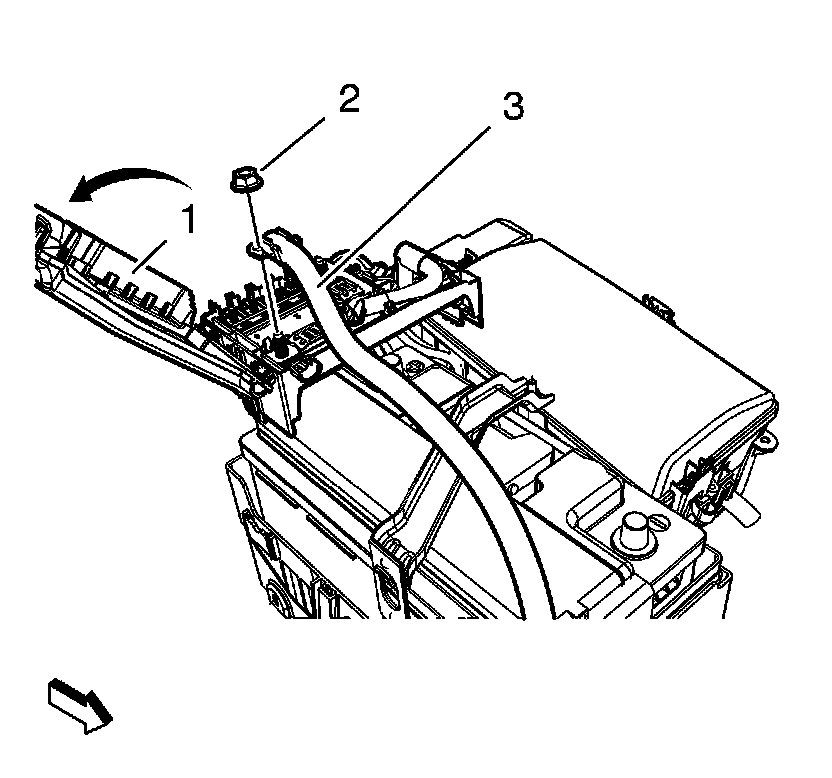

2. Unlock the retaining tabs on the battery fuse box cover, and open the cover (1).
3. Remove the positive battery cable to starter nut (2).
4. Remove the positive battery cable to starter (3) from the battery.
5. Remove the positive battery cable. Refer to Battery Positive Cable Replacement (Battery Positive Cable Replacement)

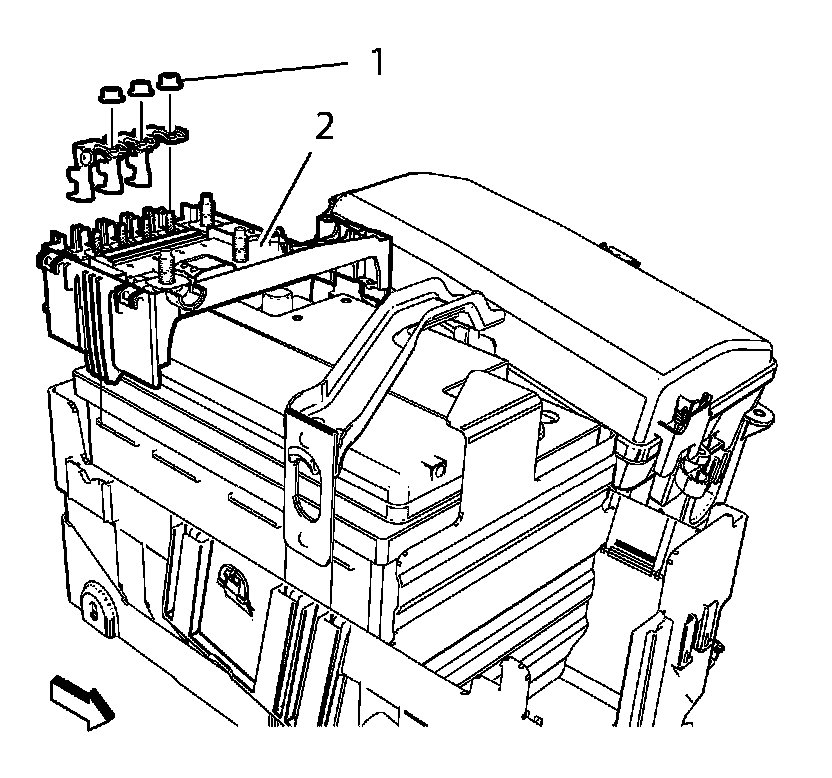

6. Remove 2 body wiring harness nuts (1) and body wiring harness.
7. Remove fuse block (2).

Installation Procedure

1. Install fuse block.

Caution: Refer to Fastener Caution (Fastener Caution)

2. Install body wiring harness and 2 body wiring harness nuts.

4.7 Nm (42 lb in)

3. Install the positive battery cable. Refer to Battery Positive Cable Replacement (Battery Positive Cable Replacement)




4. Install the positive battery cable to starter (3).
5. Install the positive battery cable to starter nut (2).

9 Nm (80 lb in)

6. Close the battery fuse box cover (1) and lock the retaining tabs on the battery fuse box.
7. Connect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (Battery Negative Cable Disconnection and Connection)
