Instrument Panel Fuse Block

Instrument Panel Fuse Block

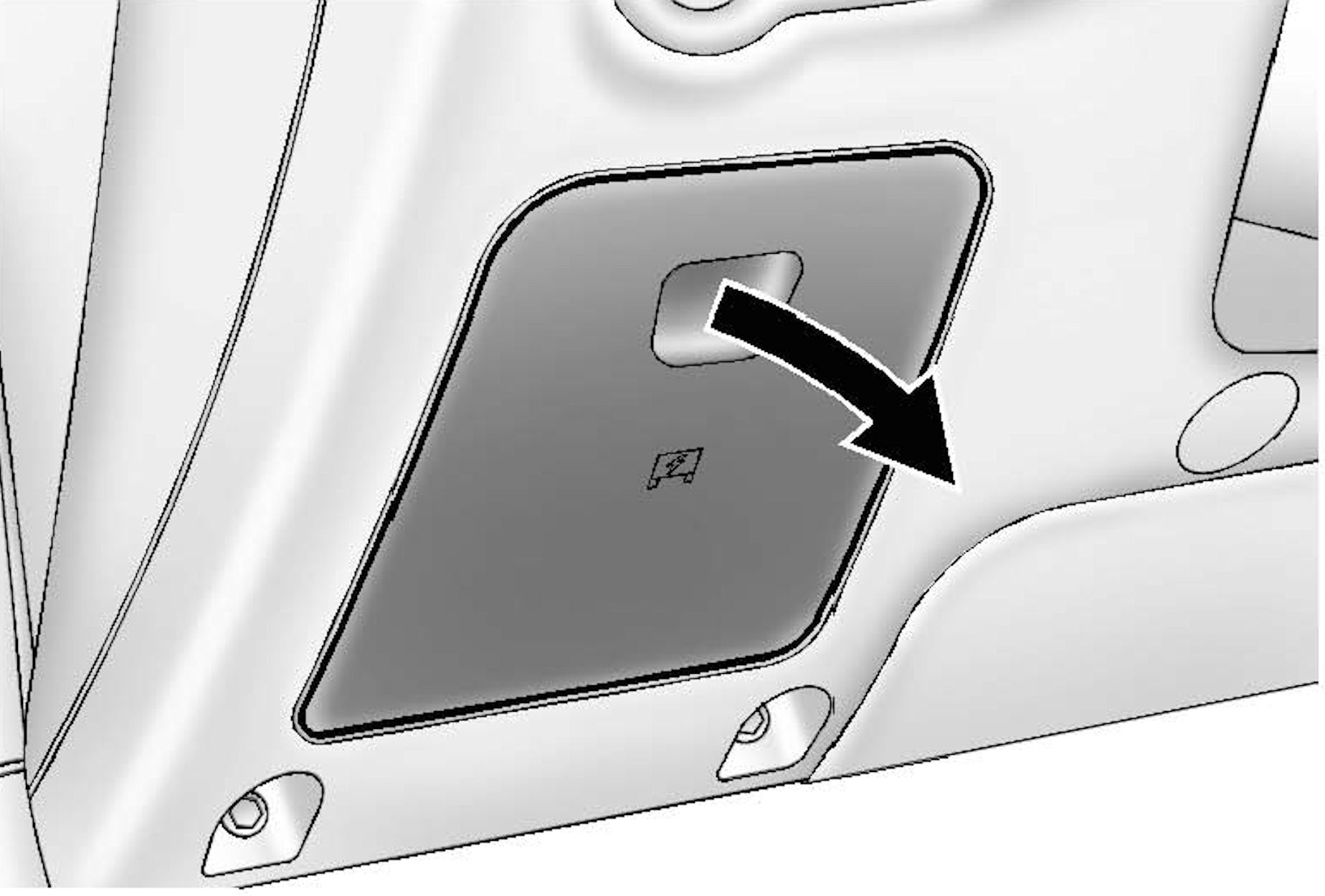

The instrument panel fuse block is in the driver side of the instrument panel. To access the Fuses:

1. Open the fuse block cover by pulling out at the top.
2. Remove the lower edge of the cover.
3. Remove the cover.

To reinstall the cover, reverse the steps above.

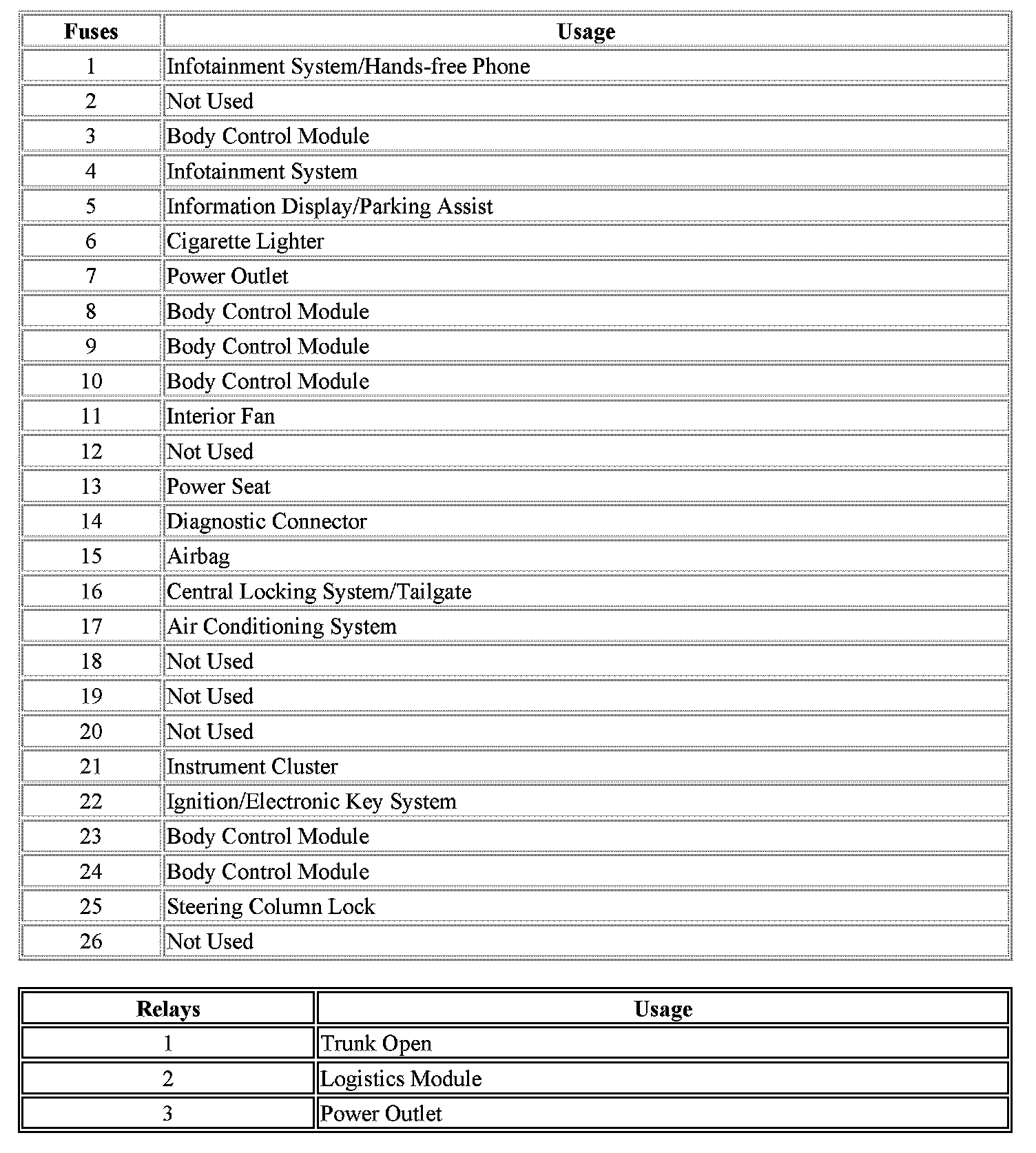

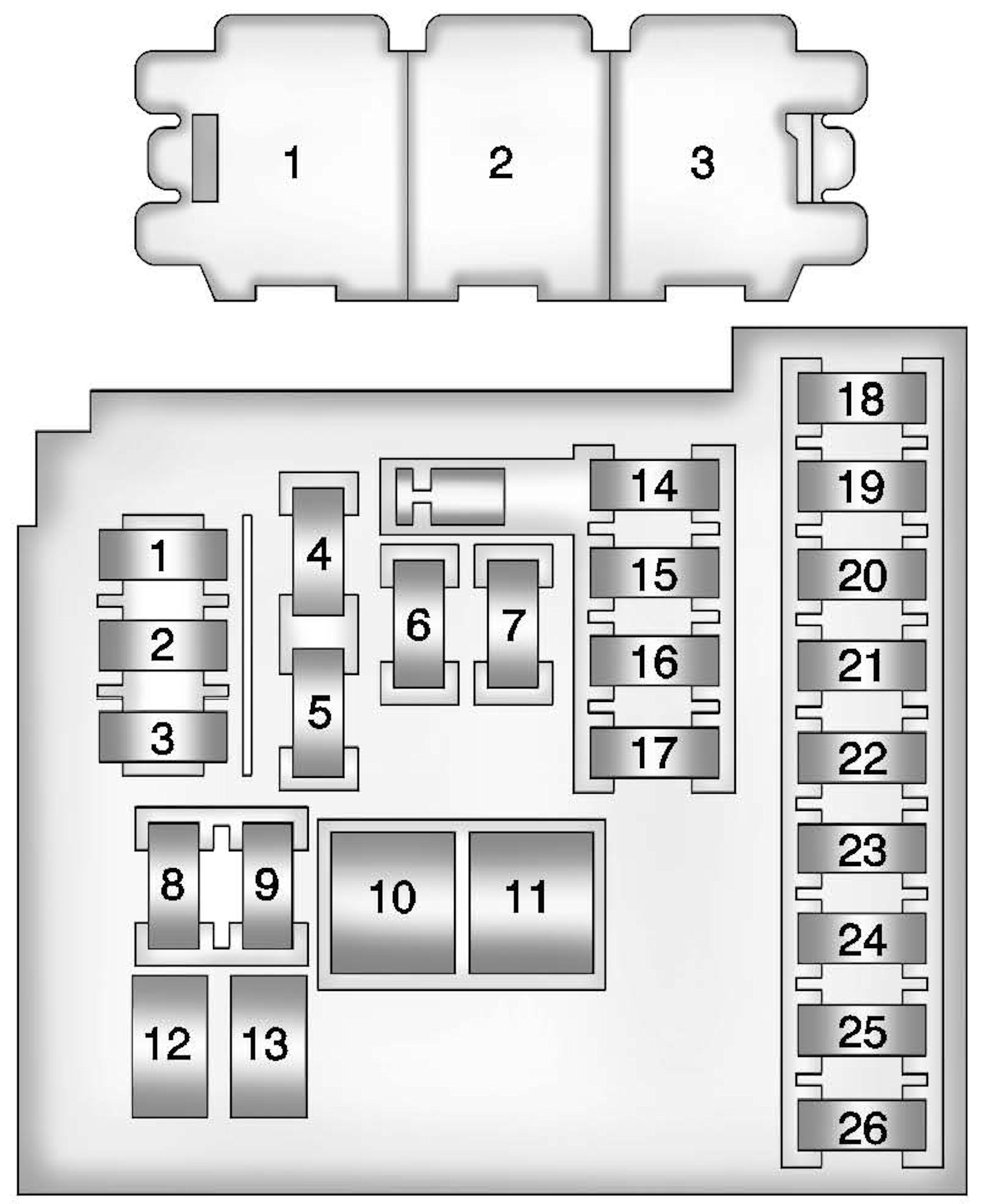

Instrument Panel Fuse Block






The vehicle may not be equipped with all of the fuses, relays, and features shown.
