Powertrain Component Views




Powertrain Component Views

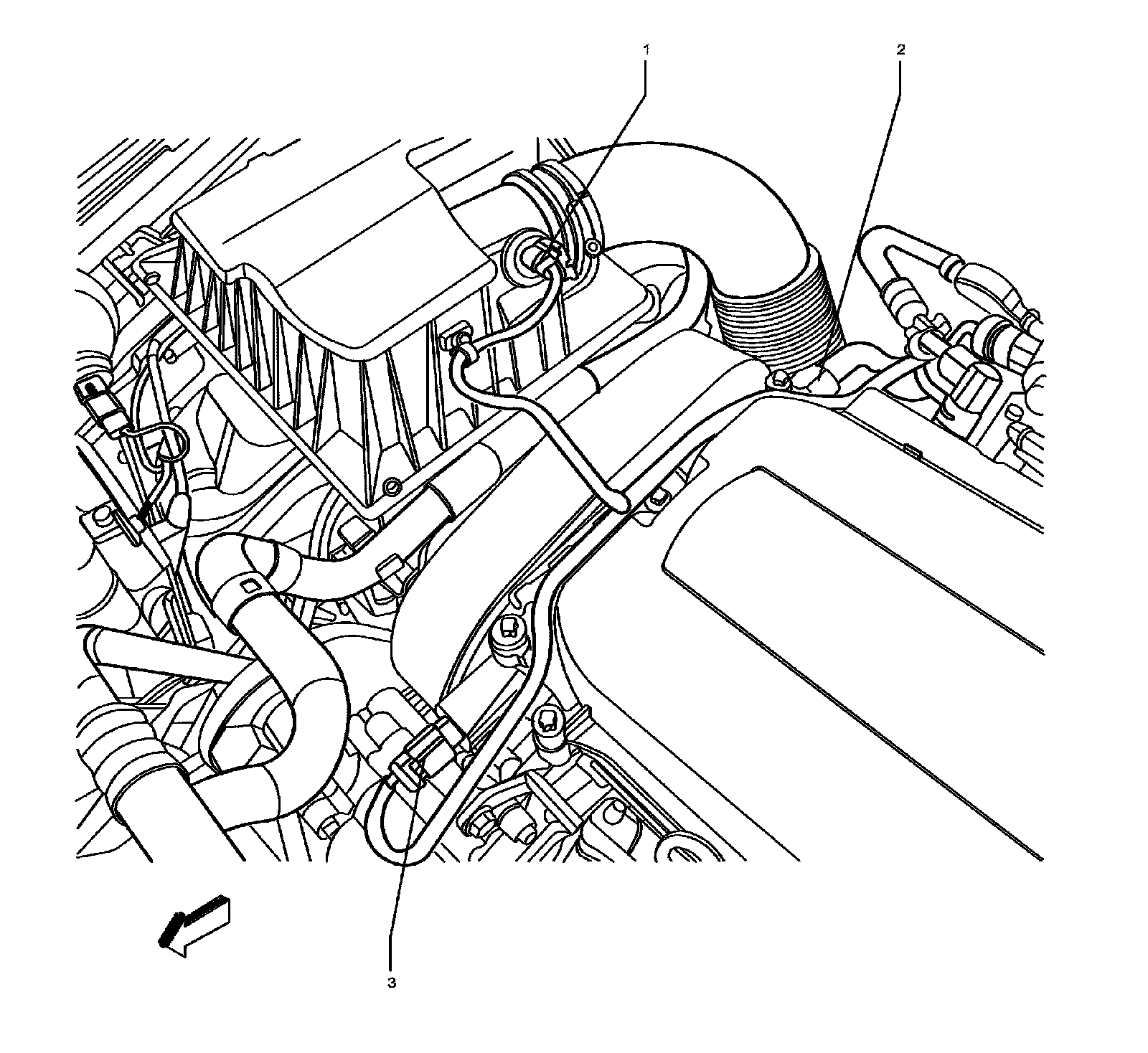

Upper Right Side of the Engine Components (LUW)




1 - Q6F Camshaft Position Actuator Solenoid Valve - Intake
2 - B66 Intake Air Temperature Sensor
3 - Q6E Camshaft Position Actuator Solenoid Valve - Exhaust
