Manifold Pressure/Vacuum Sensor: Locations

Powertrain Component Views

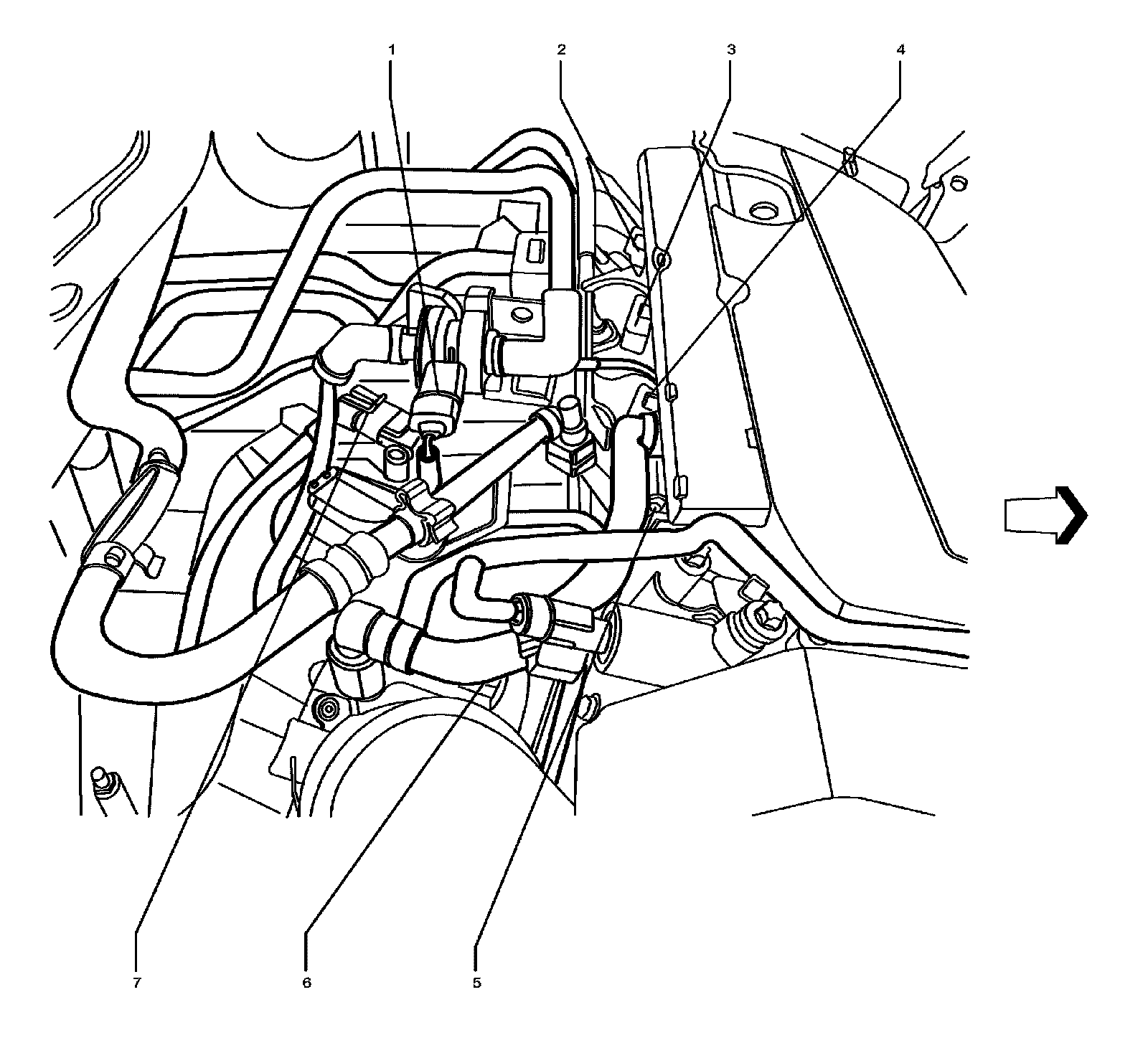

Upper Rear of the Engine Components (LUW) 2 of 2




1 - Q12 Evaporative Emission (EVAP) Purge Solenoid Valve
2 - Q17D Fuel Injector 4
3 - Q17C Fuel Injector 3
4 - Q17B Fuel Injector 2
5 - Q17A Fuel Injector 1
6 - Q38 Throttle Body
7 - B74 Manifold Absolute Pressure Sensor
