Front of Vehicle/Engine Compartment Component Views

Front of Vehicle/Engine Compartment Component Views

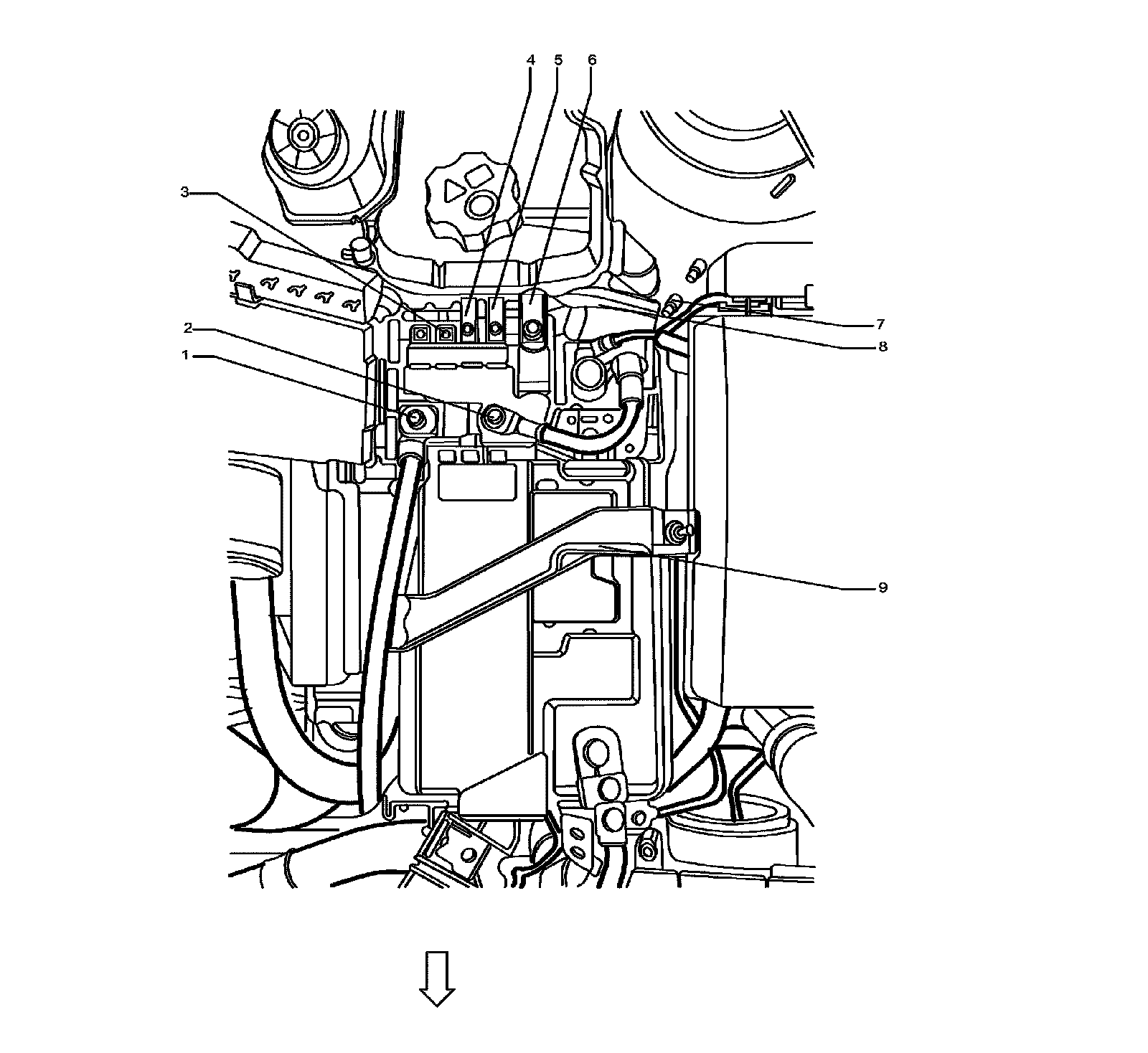

Left Side of the Engine Compartment Components 1 of 2




1 - X50D Fuse Block - Battery X5
2 - X50D Fuse Block - Battery X1
3 - X50D Fuse Block - Battery X6
4 - X50D Fuse Block - Battery X4
5 - X50D Fuse Block - Battery X3
6 - X50D Fuse Block - Battery X2
7 - G122 Engine Compartment - Front Left
8 - X50D Fuse Block - Battery
9 - C1 Battery
