Starter Motor: Locations

Powertrain Component Views

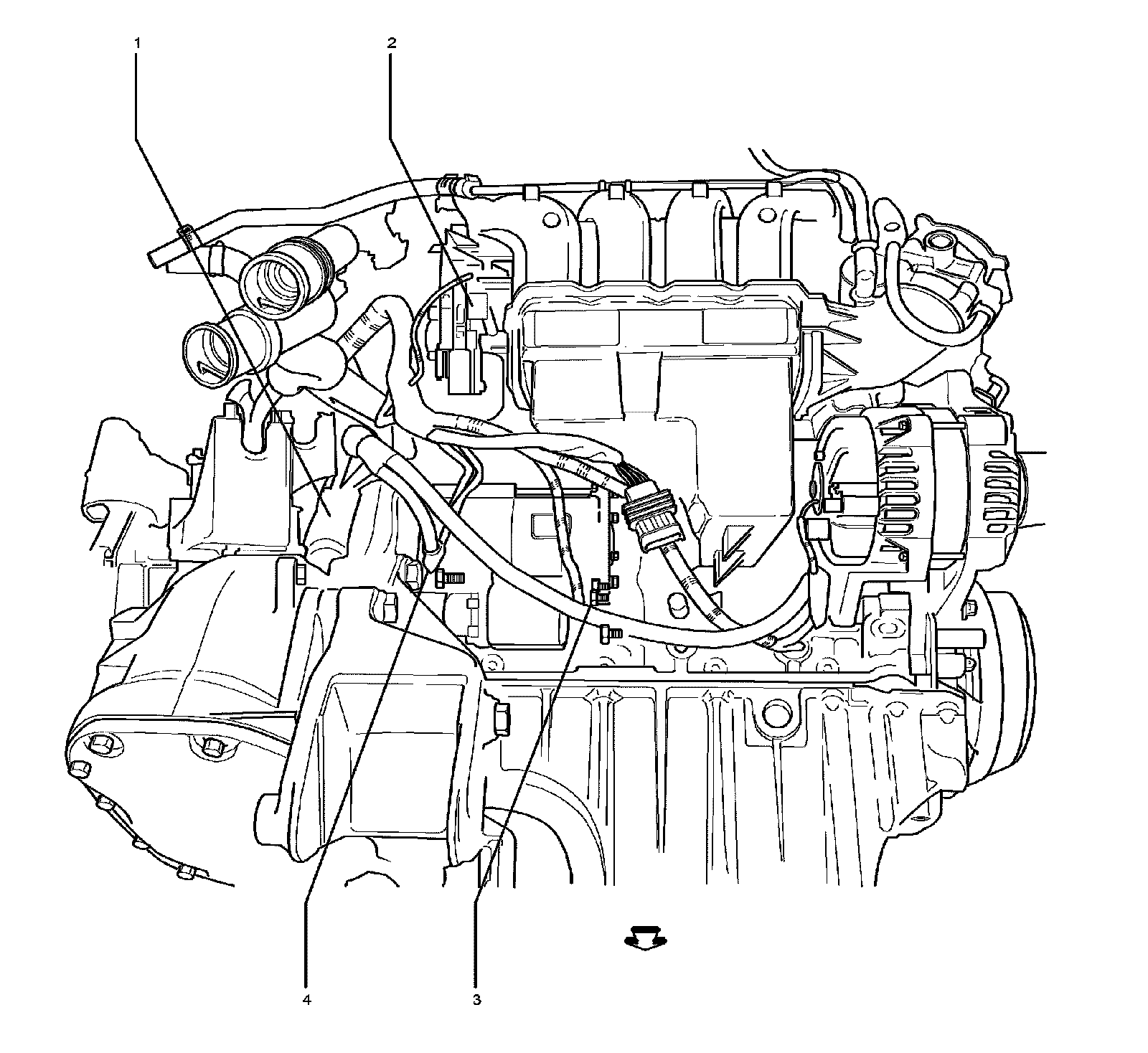

Rear of the Engine Components (LUW)




1 - B14E Output Speed Sensor
2 - Q22 Intake Manifold Tuning Solenoid Valve
3 - M64 Starter Motor
4 - G111 Engine
