Identifying Center of the I/P Components

Identifying Center of the I/P Components

Component Name Callout
P16 Instrument Cluster 1
P17 Info Display Module 2
S26 Hazard Lamps Switch 3
A26 HVAC Control 4
S13D Door Lock Switch - Driver 5

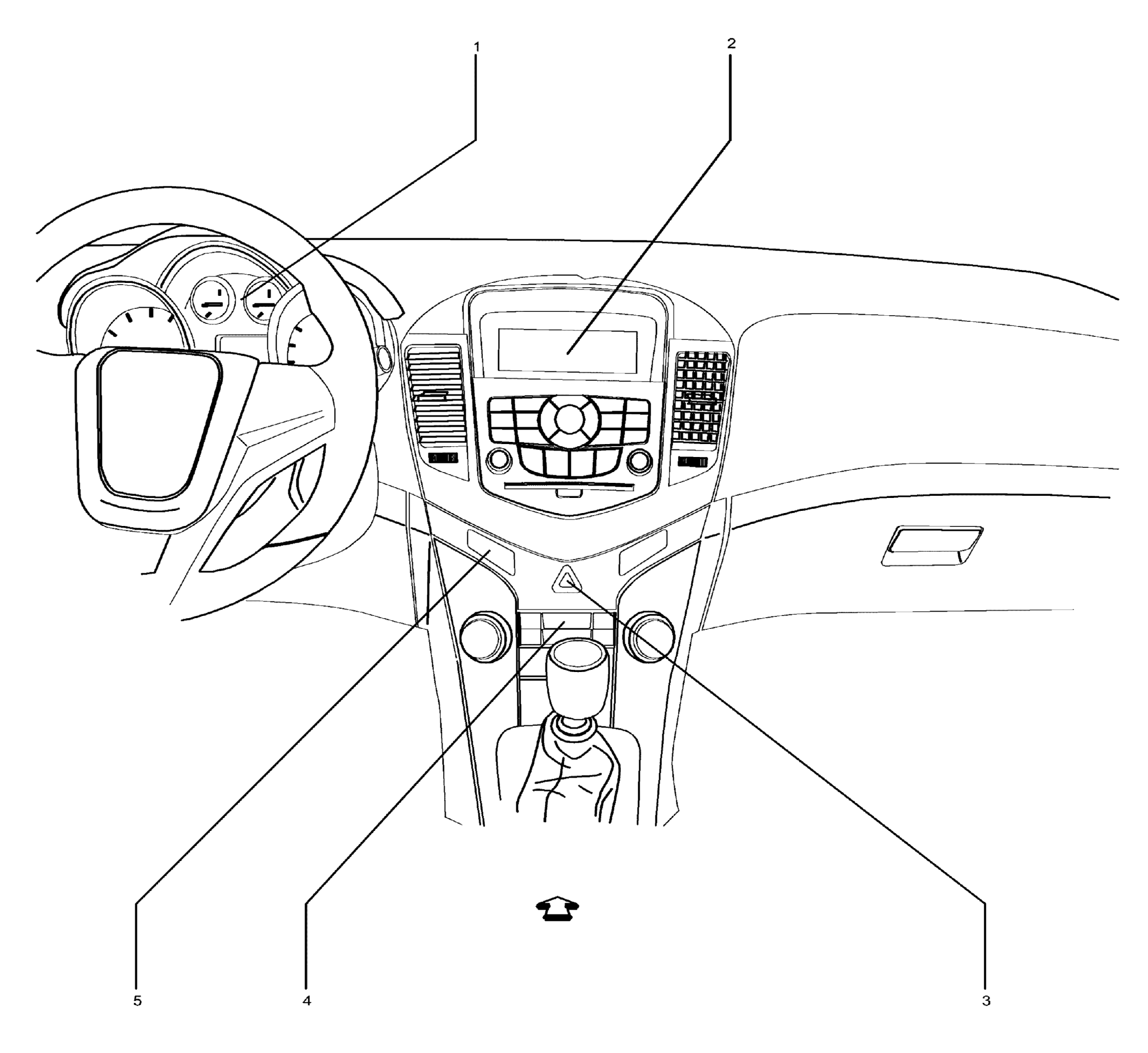

Fig 1: Identifying Center of the I/P Components
GM2290612Courtesy of GENERAL MOTORS CORP.
