Removal Procedure

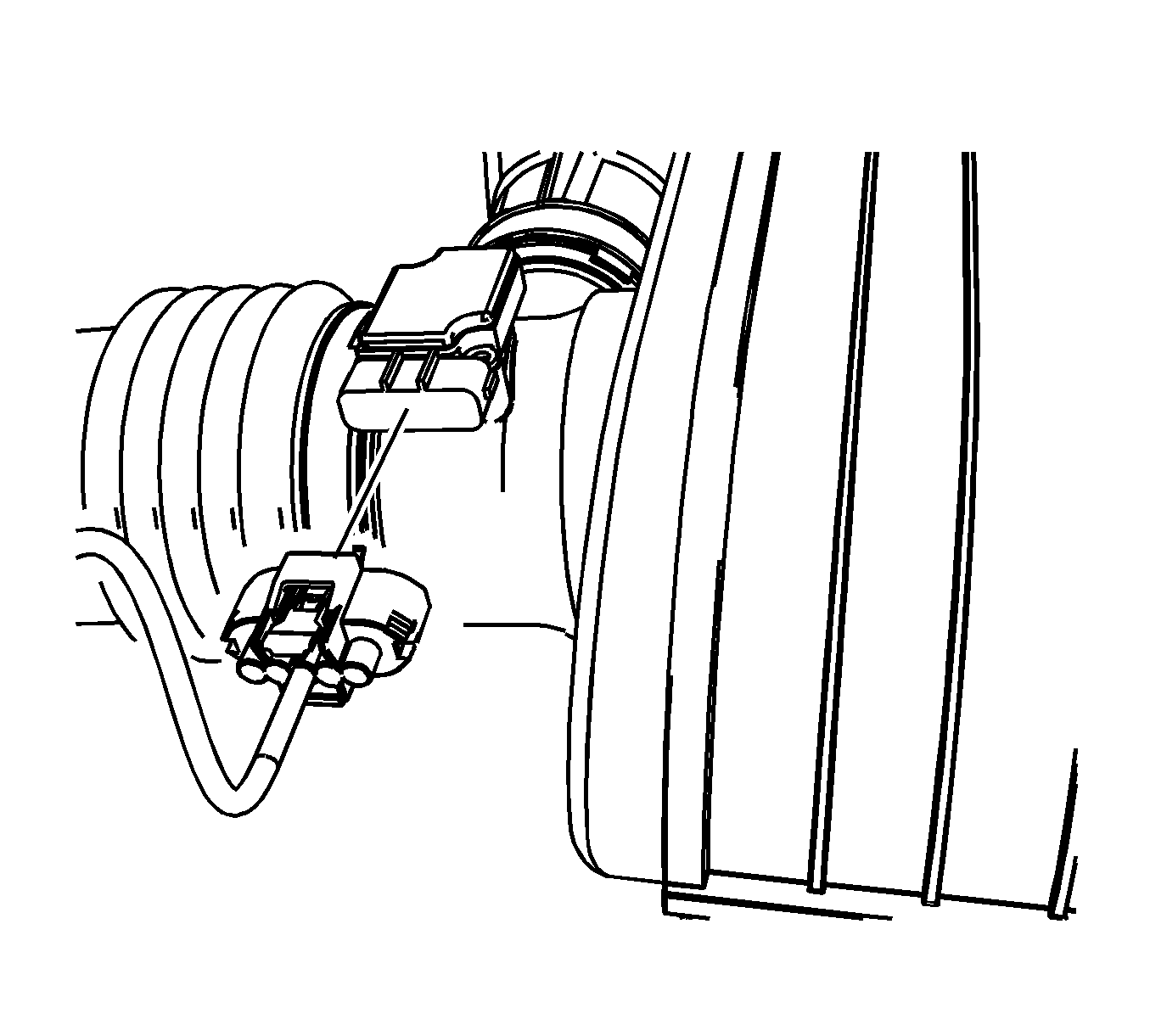

    Fig 1: MAF/IAT Sensor Electrical Connector
    GM1655957Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the mass air flow (MAF)/intake air temperature (IAT) sensor electrical connector.

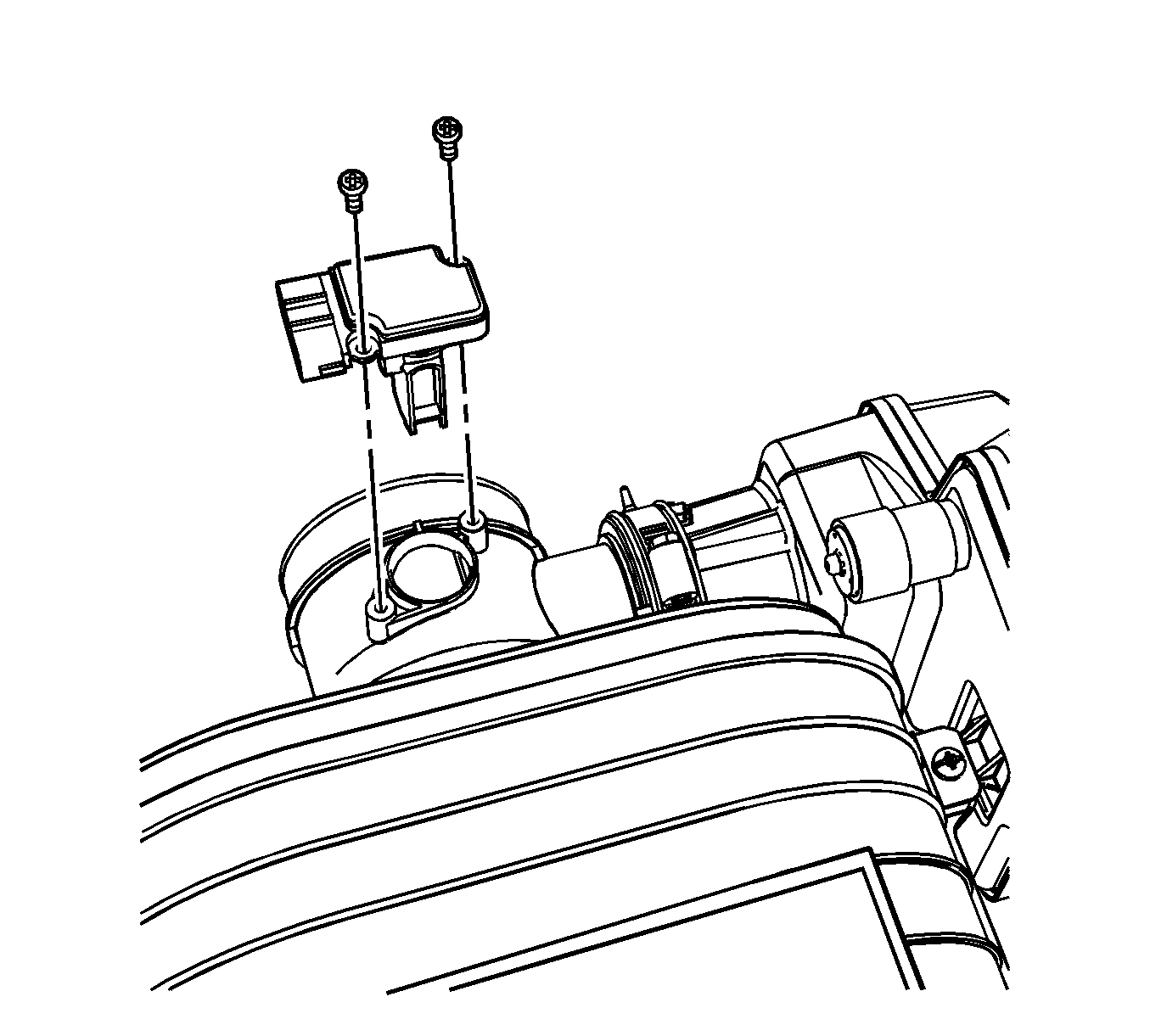

  2. Fig 2: MAF/IAT Sensor
    GM1731292Courtesy of GENERAL MOTORS CORP.

    Remove the MAF/IAT sensor TORX® screws.
  3. Remove the MAF/IAT sensor.
