Chevrolet
>>
2011
>>
Equinox LS, FWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Keyless Entry System And Remote Functions
>>
Wiring Schematics
>>
Remote Keyless Entry System Wiring Schematics
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Remote Keyless Entry System Wiring Schematics

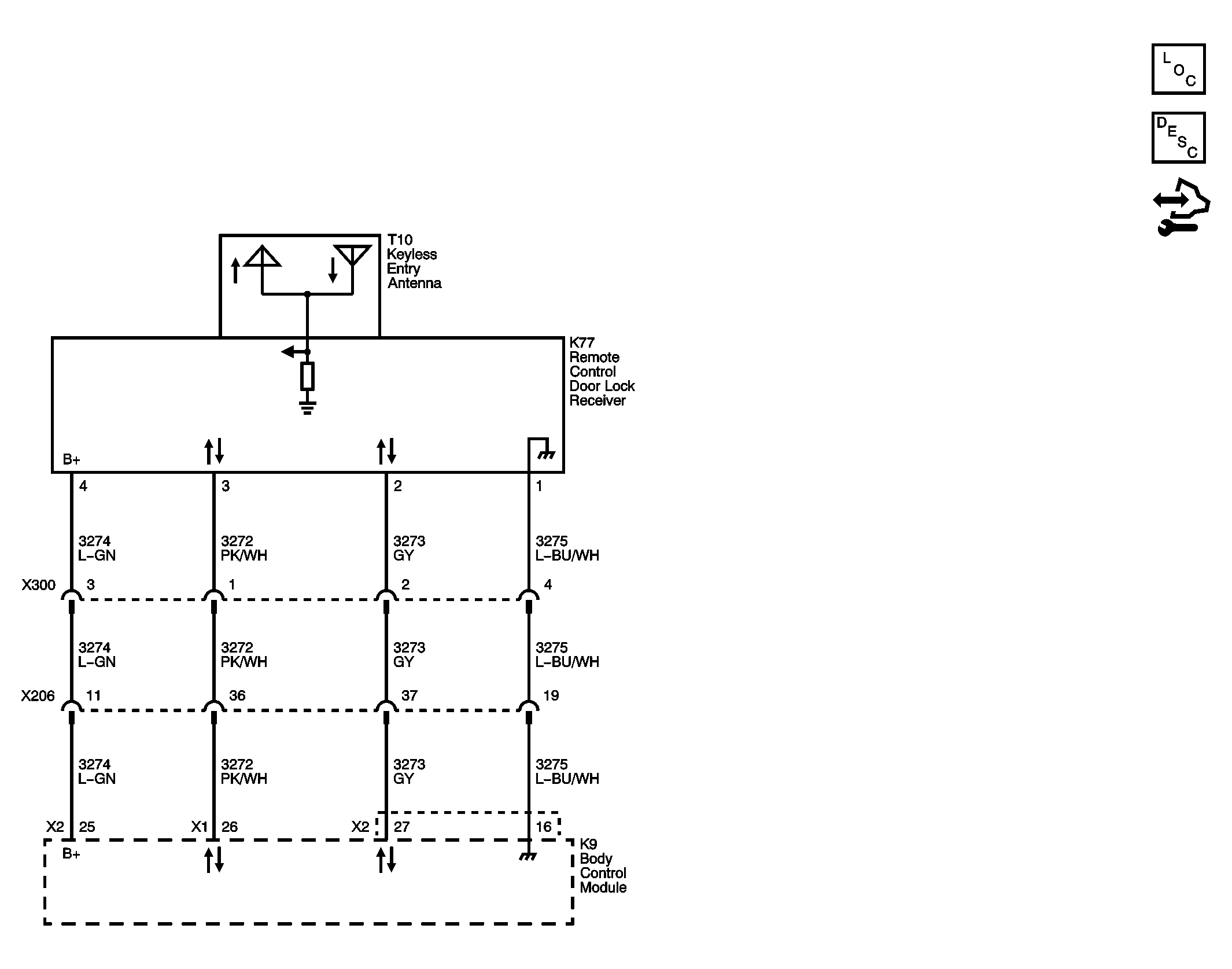

Fig 1: Remote Keyless Entry System Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
