Fuel Tank Pressure Sensor (CNG): Diagrams

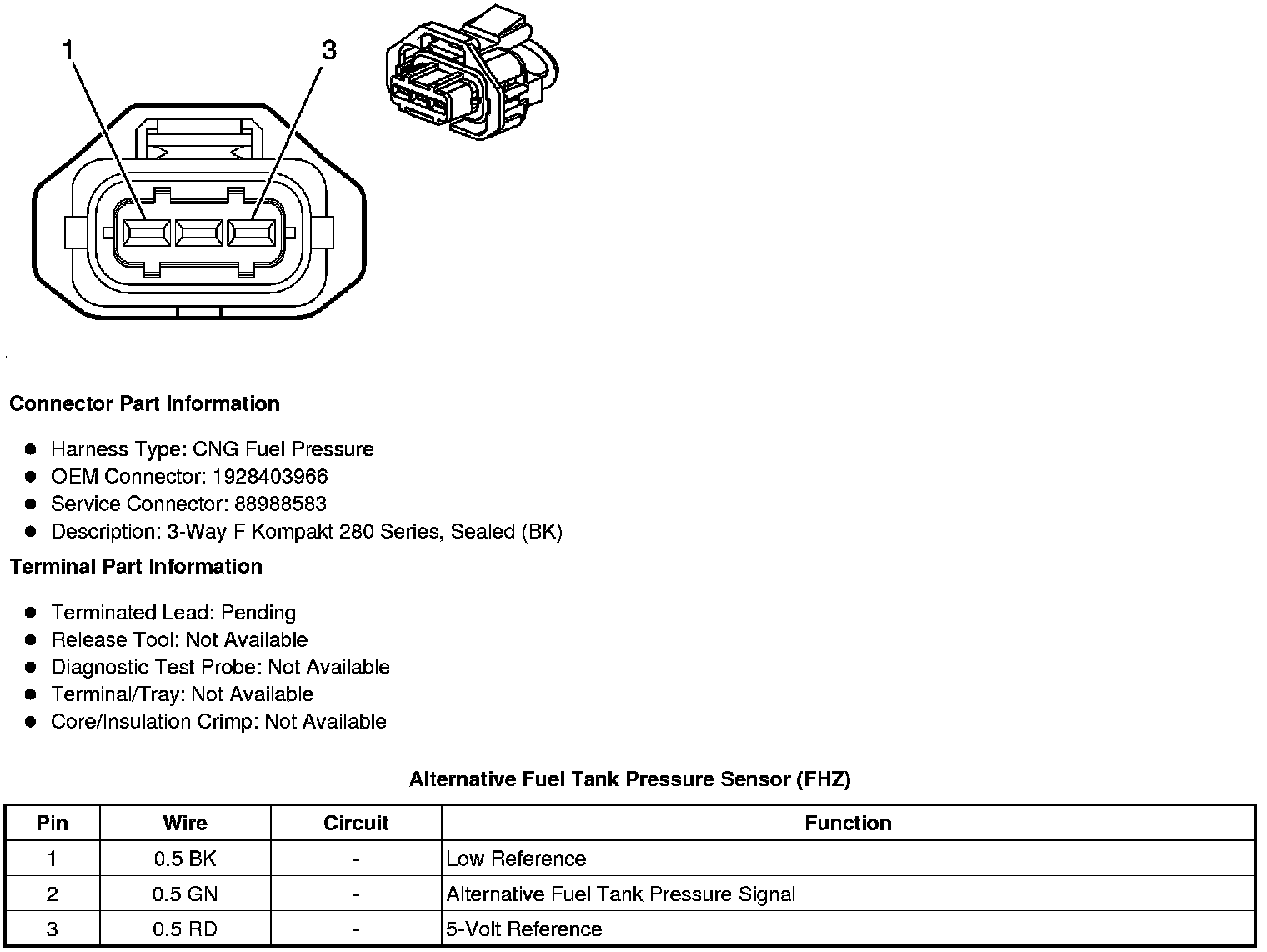

Component Connector End Views
Alternative Fuel Tank Pressure Sensor (FHZ)
