Driver Door

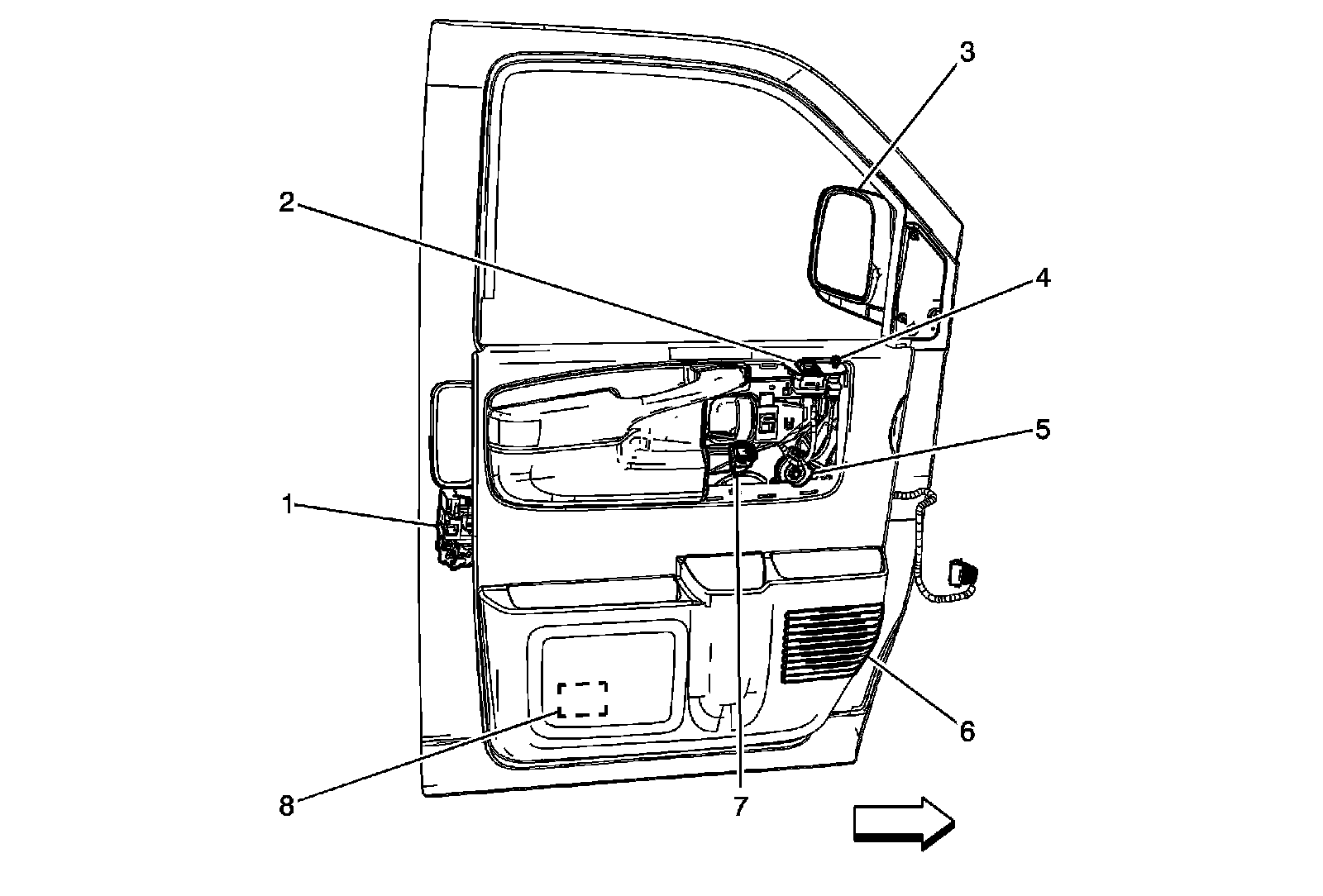

Door Component Views

Driver Door




1 - Door Latch - Driver
2 - Window Switch - Driver (A31)
3 - Outside Rearview Mirror - Driver (DE5 or DE7)
4 - Outside Rearview Mirror Switch (DE5 or DE7)
5 - Window Motor - Driver (A31)
6 - Speaker - Left Front
7 - Door Lock Switch - Driver (AU3)
8 - Inflatable Restraint Side Impact Sensor (SIS) - Left Front (ASF)
