I/P - Left Side




Instrument Panel/Center Console Component Views

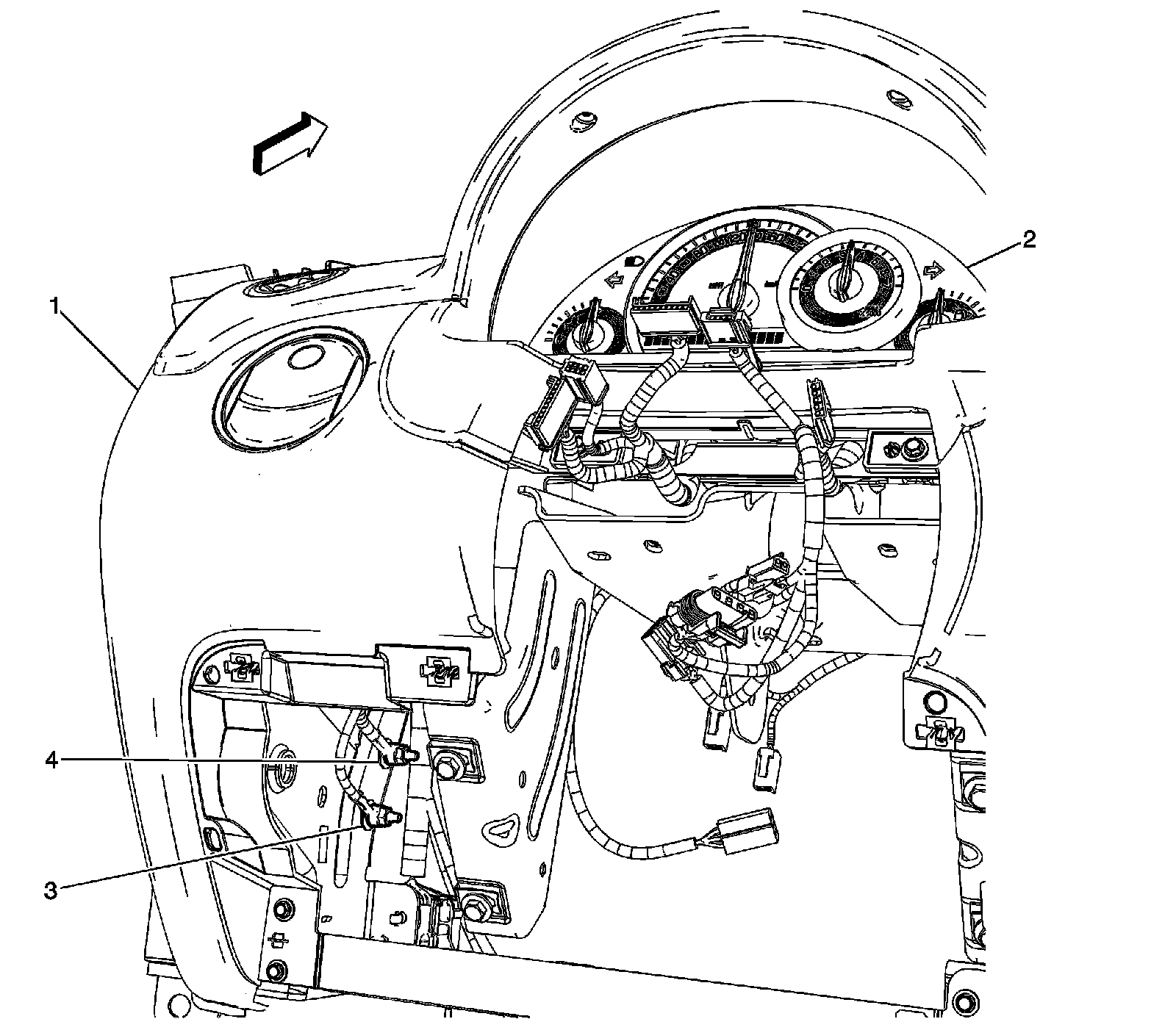

I/P - Left Side




1 - I/P Trim Panel
2 - Instrument Panel Cluster (IPC)
3 - G201
4 - G203
