Liftgate Harnesses




Harness Routing Views

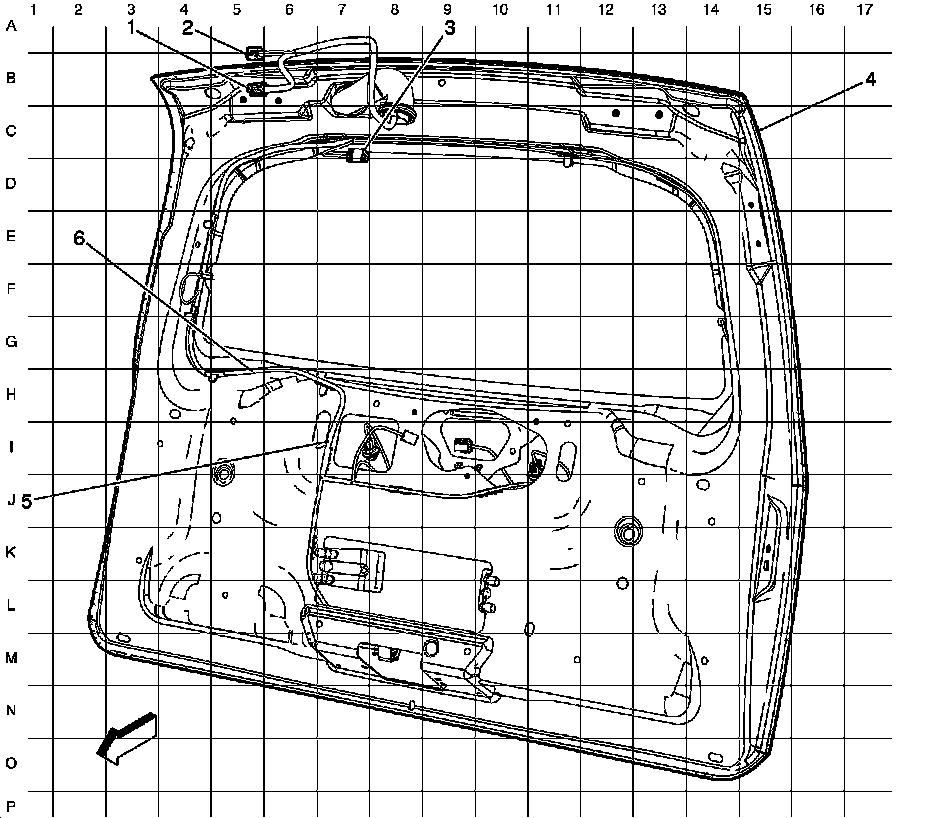

Liftgate Harness Routing




1 - X900
2 - X902
3 - X903
4 - Liftgate
5 - J900
6 - J901
