Installation Procedure

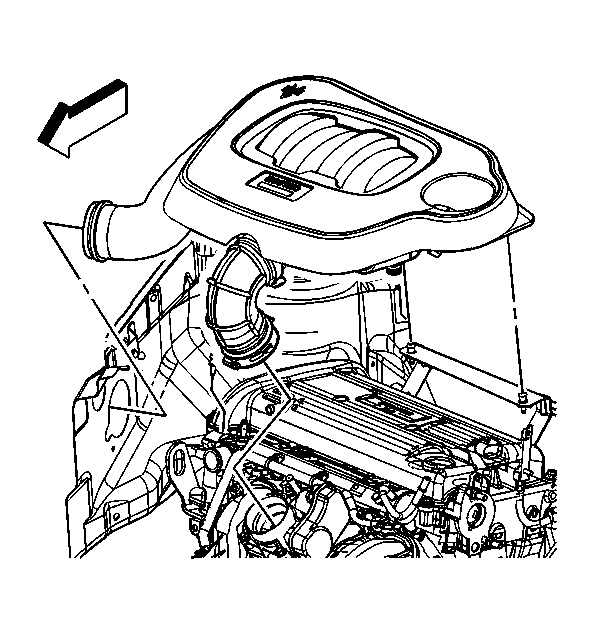

    Fig 1: Air Cleaner Assembly
    GM1638524Courtesy of GENERAL MOTORS COMPANY
  1. Install the air cleaner assembly.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Tighten the air cleaner outlet duct clamp at the throttle body.

    Tighten

    Tighten the clamp to 5 N.m (44 lb in).

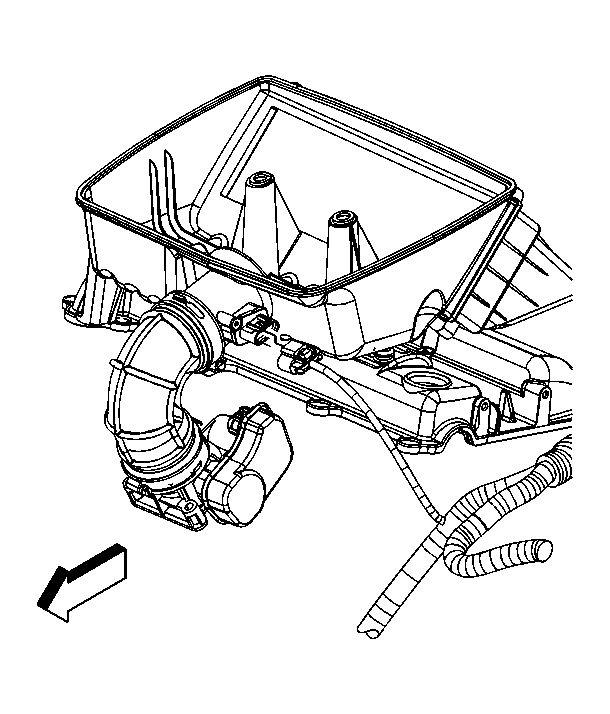

    3. Fig 2: Air Cleaner Assembly
    GM1625474Courtesy of GENERAL MOTORS COMPANY
  3. Connect the engine wiring harness electrical connector to the MAF/IAT sensor.

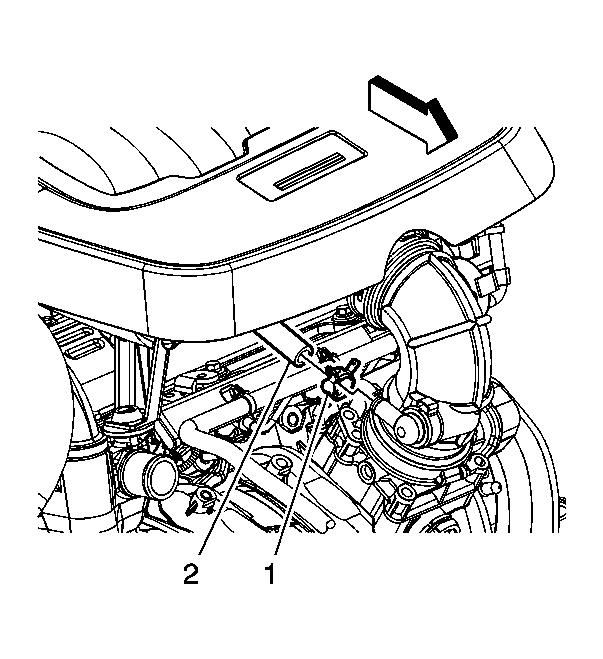

    4. Fig 3: PCV Hose
    GM1721513Courtesy of GENERAL MOTORS COMPANY
  4. Install the PCV hose (2) to the air cleaner assembly.
  5. Position the PCV hose clamp (1) at the air cleaner assembly.
  6. Seat the air cleaner assembly onto the studs.
