Installation Procedure

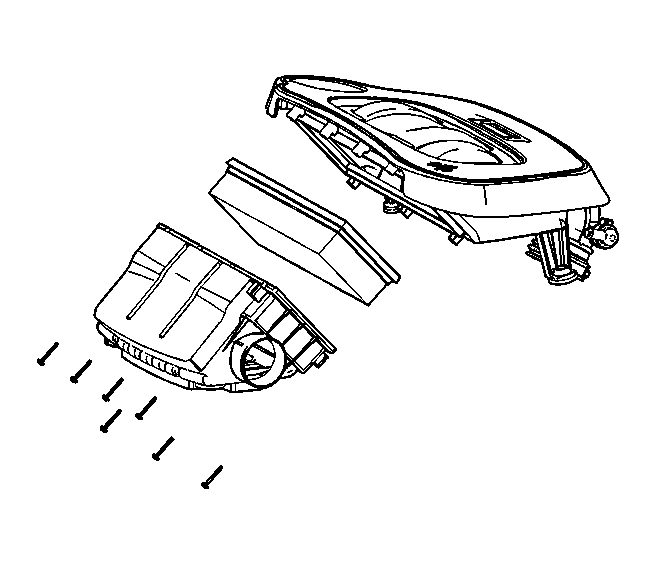

    Fig 1: Air Cleaner Assembly
    GM1638521Courtesy of GENERAL MOTORS COMPANY
  1. Install the air cleaner filter into the lower air cleaner housing.
  2. Install the upper air cleaner cover to the lower air cleaner housing.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Tighten the air cleaner screws.

    Tighten

    Tighten the screws to 4 N.m (35 lb in).

  4. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
