Installation Procedure

    Fig 1: Identifying CMP Sensor
    GM1578483Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Inspect the CMP sensor for damage. Replace as necessary.

  1. Lubricate the CMP sensor O-ring seal with clean engine oil.
  2. Install the CMP sensor.
    CAUTION:

    Refer to Fastener Caution .

  3. Install the CMP sensor bolt.

    Tighten

    Tighten the bolt to 10 N.m (89 lb in).

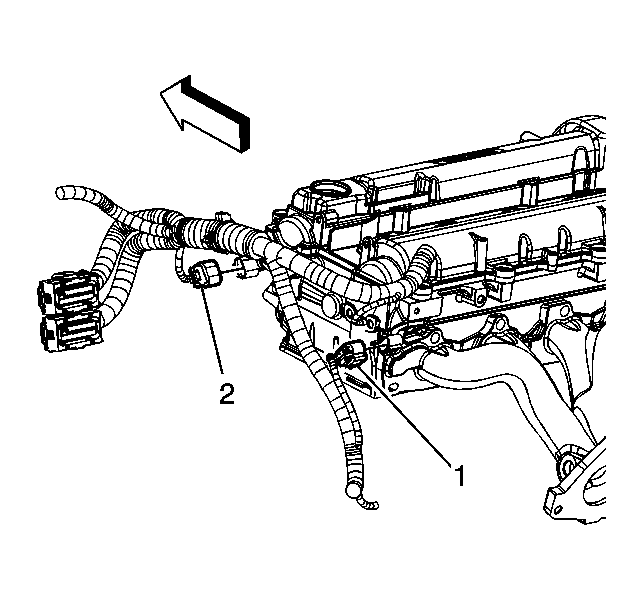

    4. Fig 2: CMP Sensor Electrical Connector
    GM1639712Courtesy of GENERAL MOTORS COMPANY
  4. Connect the intake CMP sensor electrical connector (2).
  5. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
