Electrical Component Locator - Front Of Vehicle/Engine Compartment Component Views
>>
Front of Vehicle/Engine Compartment Component Views
>>
Engine Compartment Components- Front
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine Compartment Components- Front
Engine Compartment Components- Front
Component Name
Callout
Hood Ajar Switch (AP3)
1
Inflatable Restraint Front End Sensor
2
Engine Cooling Fan
3
Radiator
4

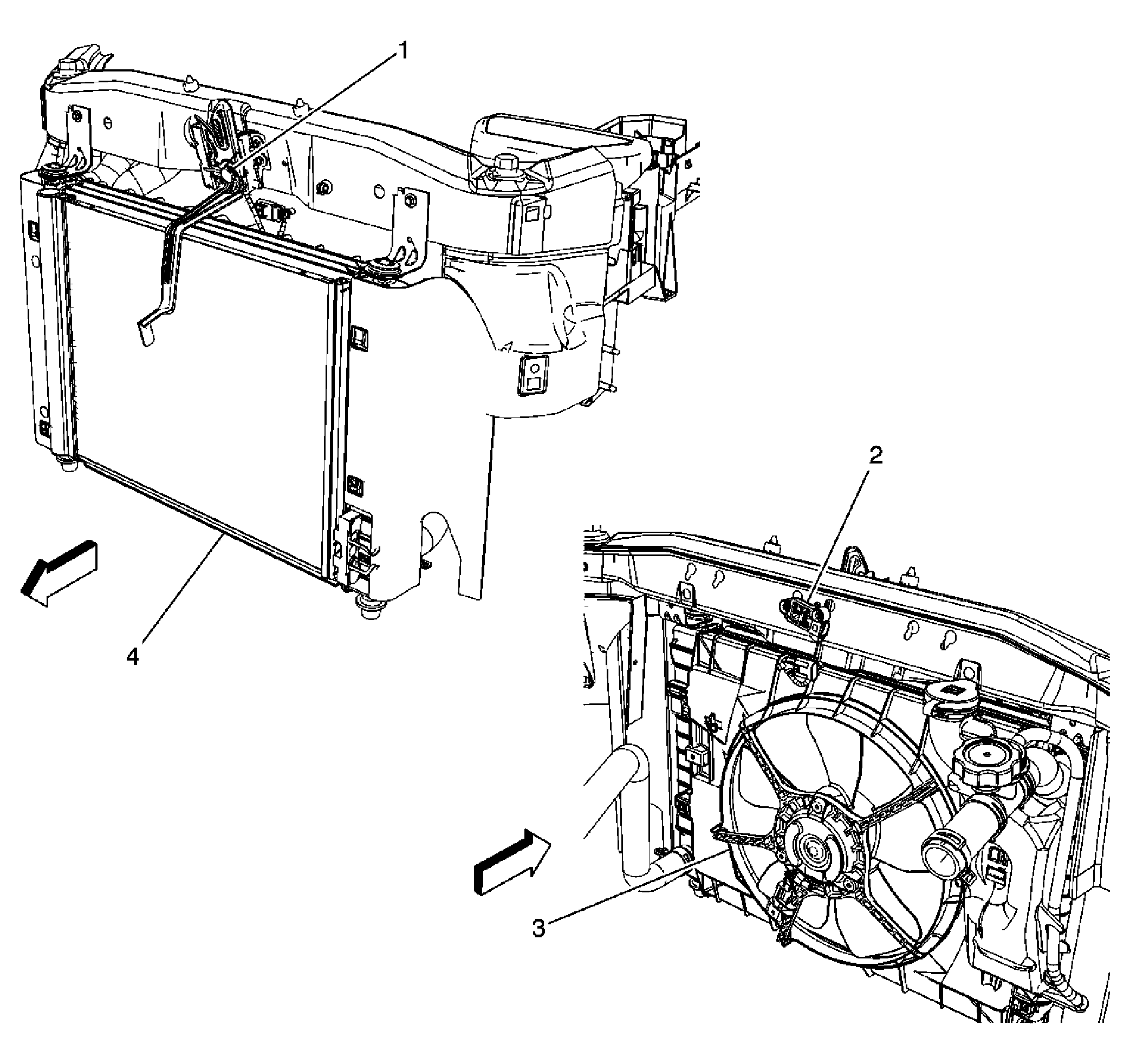

Fig 1: Engine Compartment Components
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
