Front of the Vehicle Components

Front of the Vehicle Components

Component Name Callout
Park / Turn Signal / DRL Lamp - Right Front 1
Headlamp - Right 2
Headlamp - Left 3
Park / Turn Signal / DRL Lamp - Left Front 4
Marker Lamp - Left Front 5
Fog Lamp - Left Front (T37) 6
Fog Lamp - Right Front (T37) 7
Marker Lamp - Right Front 8

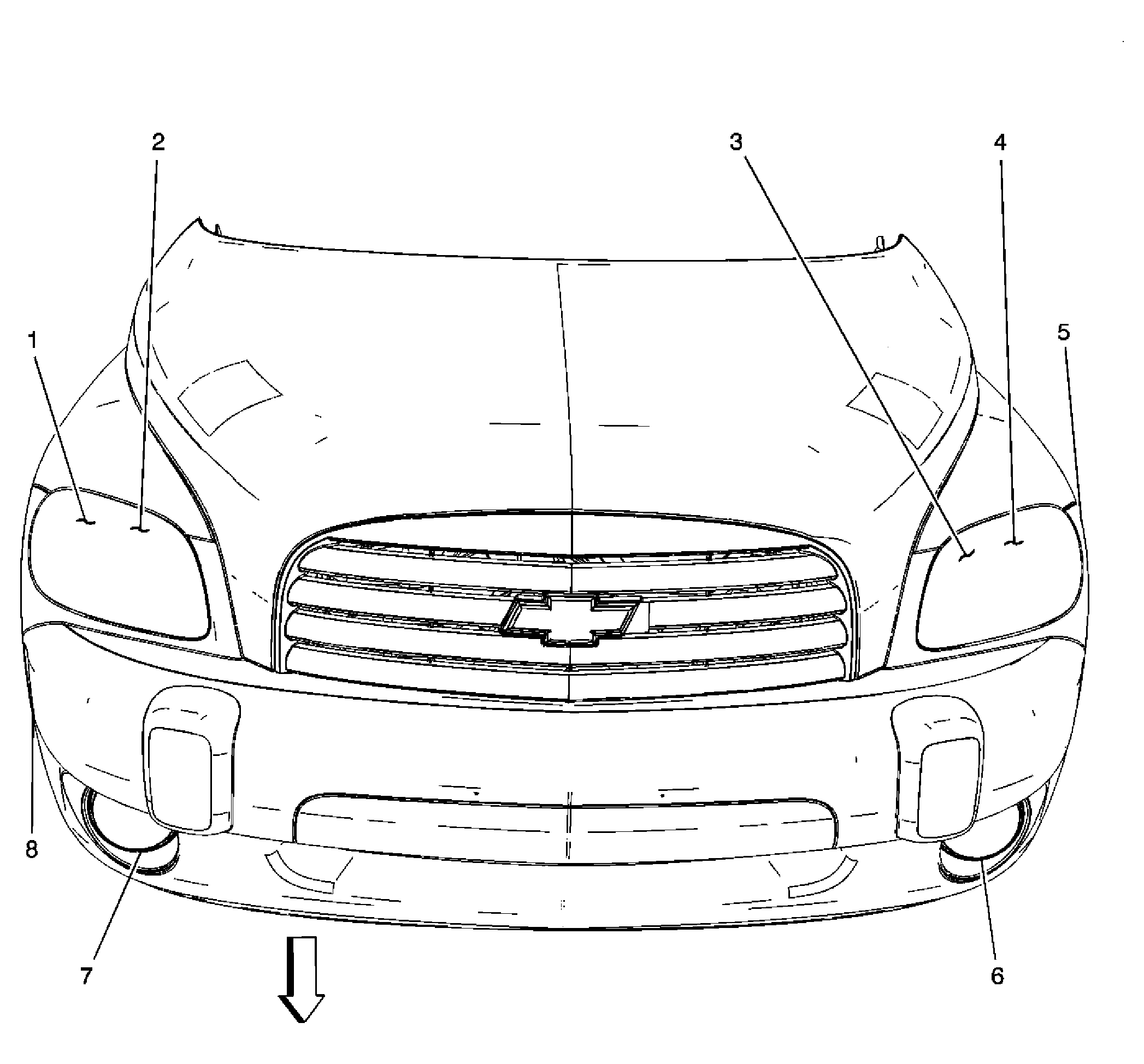

Fig 1: Front of the Vehicle
GM1651962Courtesy of GENERAL MOTORS COMPANY
