Installation Procedure

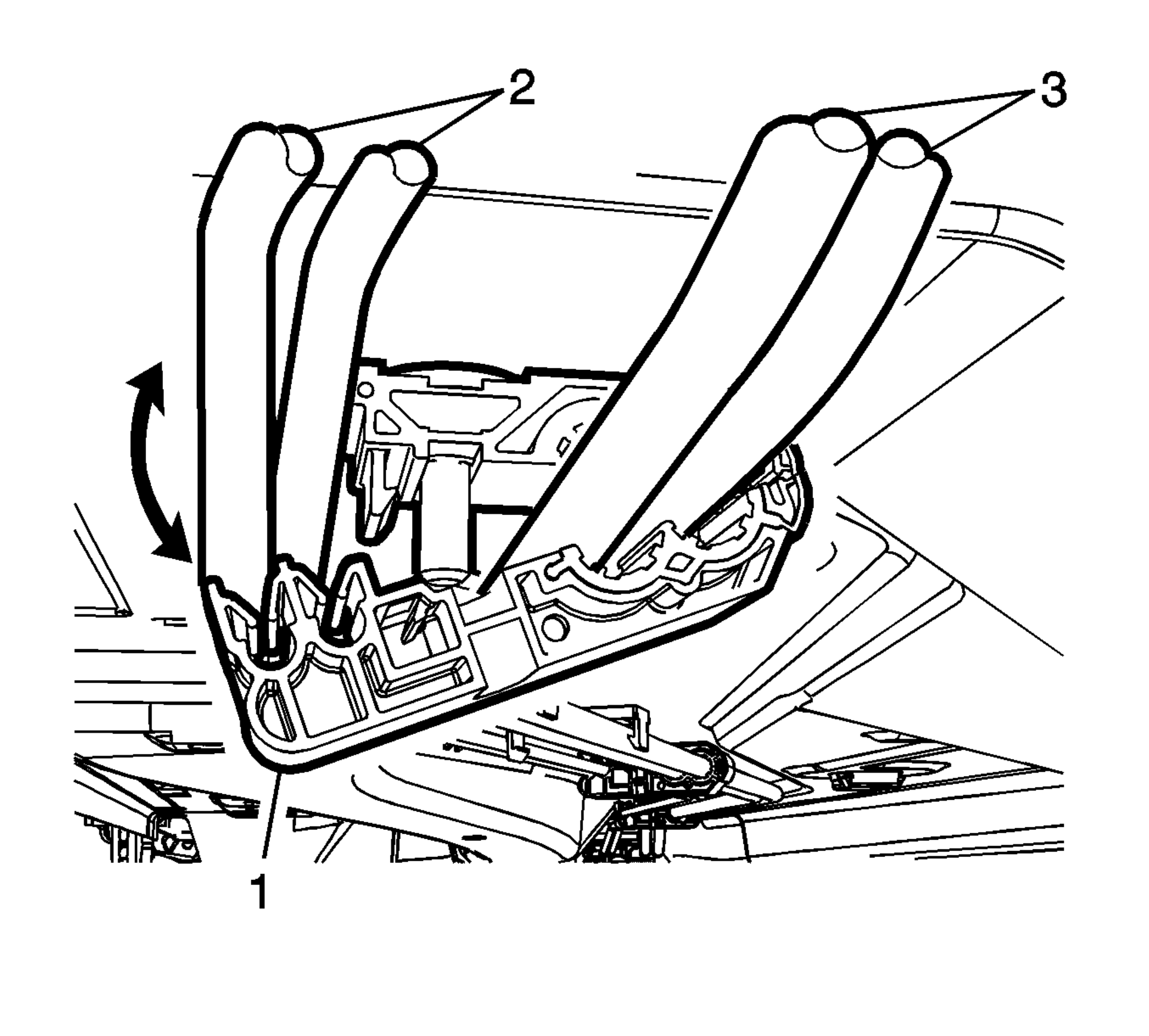

    Fig 1: EVAP Lines, Brake Lines And Brackets
    GM2443001Courtesy of GENERAL MOTORS COMPANY
  1. Install the fuel and EVAP lines to the vehicle.
  2. Install the fuel and EVAP lines (3) to the brackets (1) and close the brackets to lock the lines in place.
  3. Install the brake lines (2) to the fuel/EVAP/brake line brackets (1).

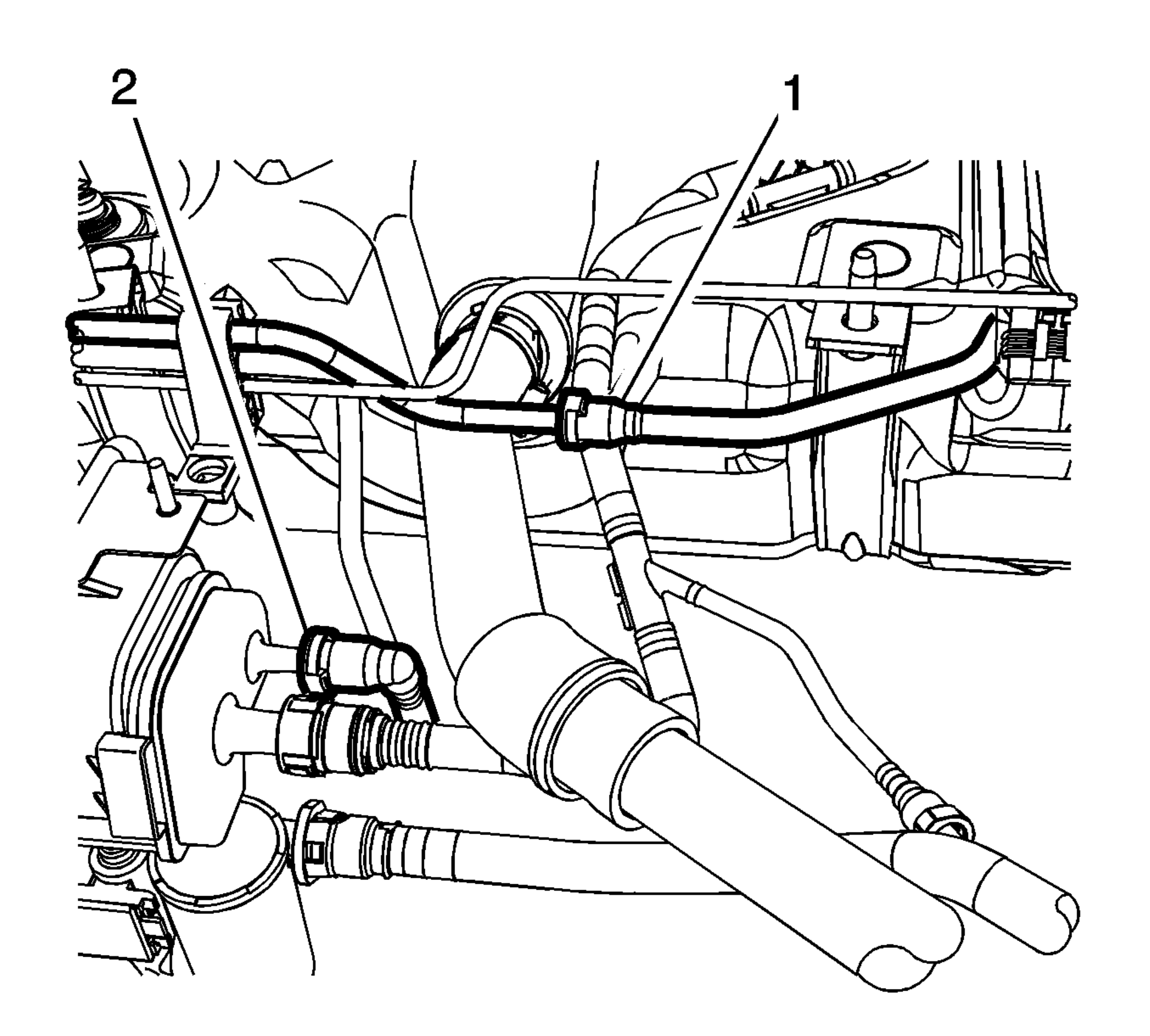

    4. Fig 2: Fuel Feed Line And EVAP Line
    GM2443002Courtesy of GENERAL MOTORS COMPANY
  4. Connect the fuel feed line (1) and EVAP line (2) quick connect fitting. Refer to Plastic Collar Quick Connect Fitting Service .

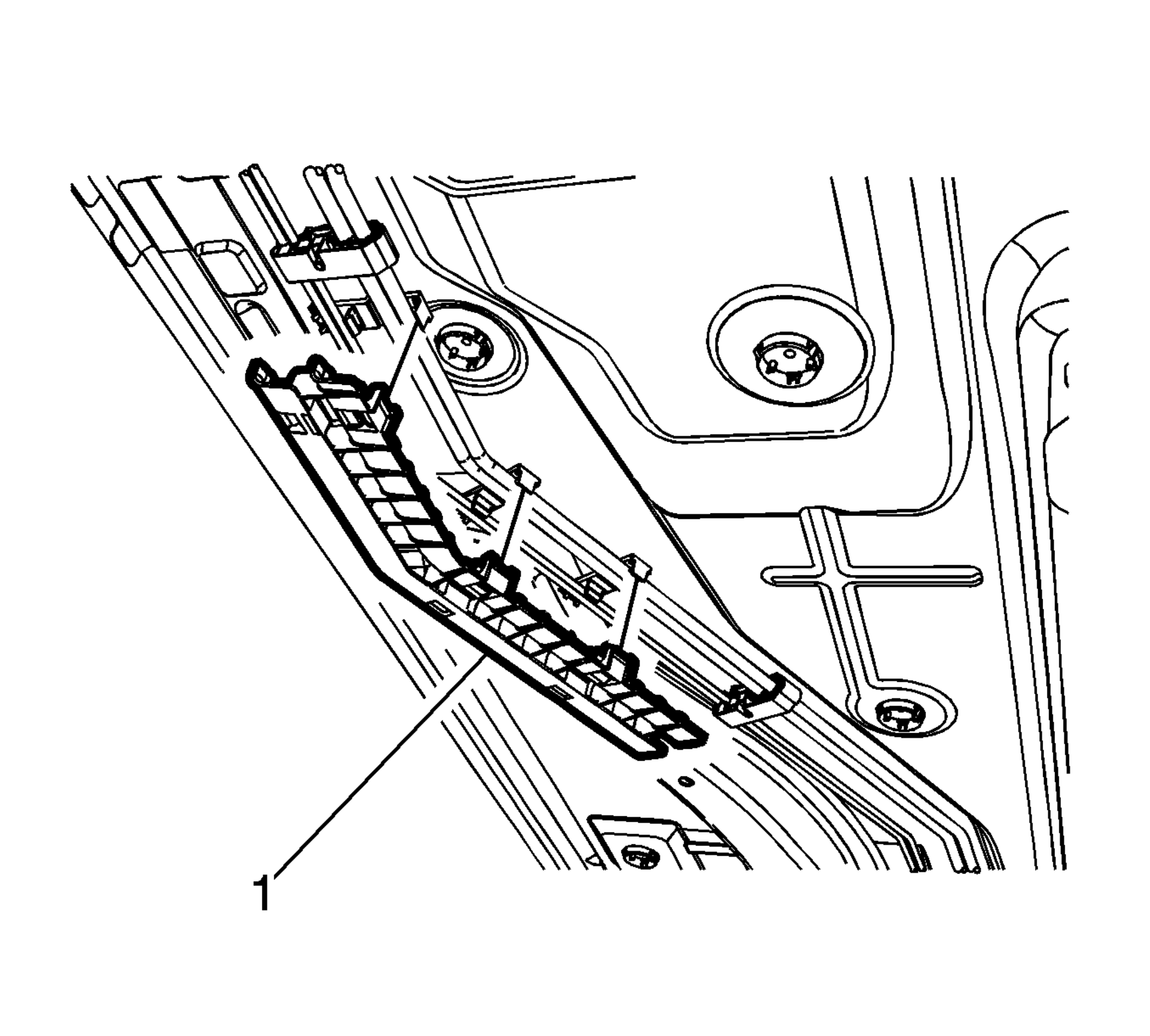

    5. Fig 3: Fuel/EVAP/Brake Line Shield
    GM2442999Courtesy of GENERAL MOTORS COMPANY
  5. Install the fuel/EVAP/brake line shield (1)
  6. Lower the vehicle.
  7. Remove the cap or plug from the EVAP line.

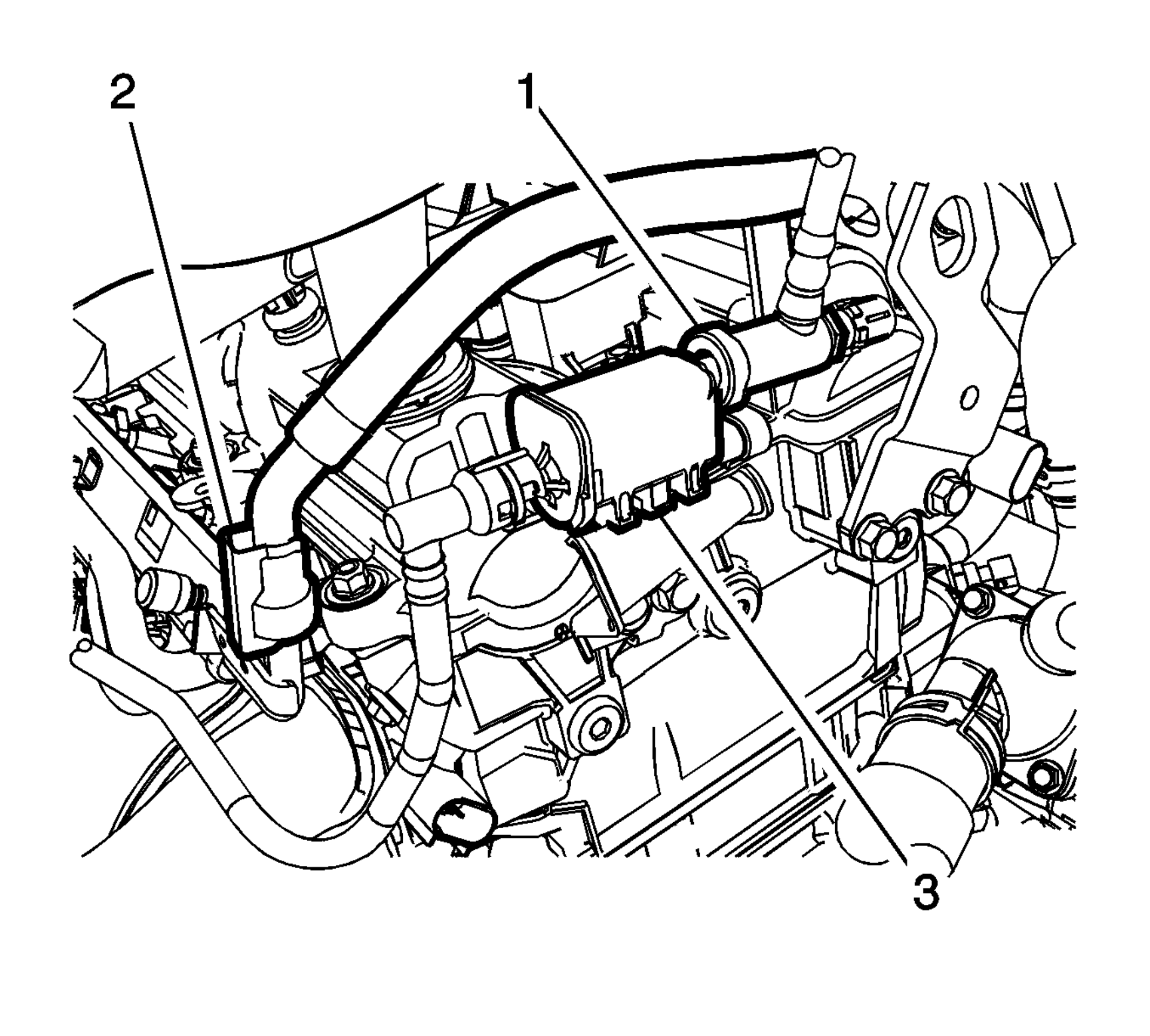

    8. Fig 4: Evaporative Emission (EVAP) Line, Fuel Feed Line And Purge Solenoid
    GM2442951Courtesy of GENERAL MOTORS COMPANY
  8. Connect the EVAP line (1) to the purge solenoid (3). Refer to Plastic Collar Quick Connect Fitting Service .
  9. Remove the cap or plug from the fuel line and the engine fuel rail.
  10. Connect the fuel feed line (2) to the fuel rail. Refer to Metal Collar Quick Connect Fitting Service .
  11. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  12. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  13. Inspect for fuel leaks using the following procedure:
    1. Turn ON the ignition, with the engine OFF for 2 seconds.
    2. Turn OFF the ignition for 10 seconds.
    3. Turn ON the ignition, with the engine OFF.
    4. Inspect for fuel leaks.
