Engine Components- Front (2 of 2)

Engine Components- Front (2 of 2)

Component Name Callout
Throttle Actuator Control (TAC) Module 1
Evaporative Emission (EVAP) Canister Purge Solenoid 2
Engine Oil Pressure (EOP) Switch 3
Crankshaft Position (CKP) Sensor 4
Knock Sensor (KS) 5
Starter 6
Starter Solenoid 7

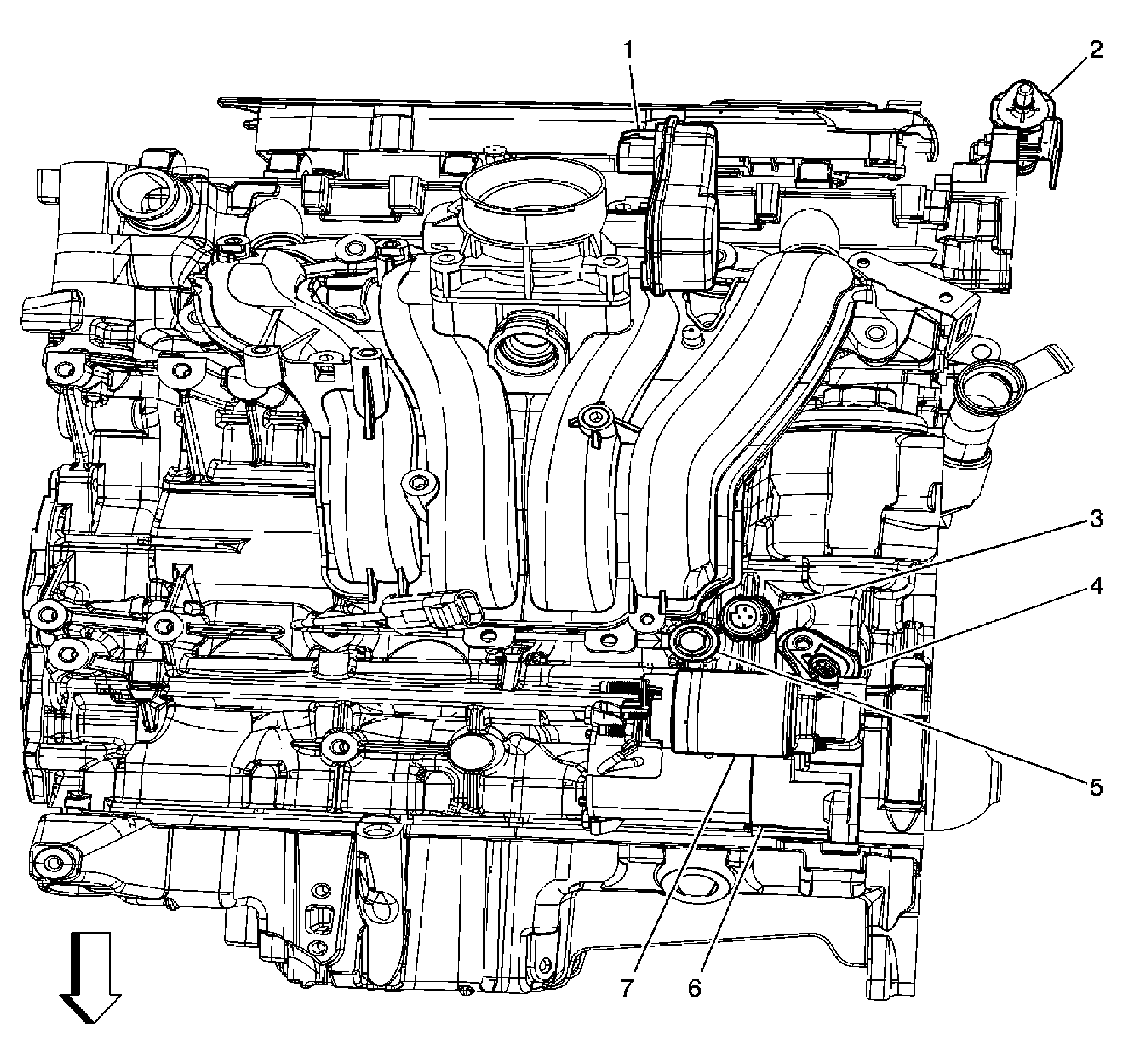

Fig 1: Front of the Engine (L61)
GM1751287Courtesy of GENERAL MOTORS COMPANY
