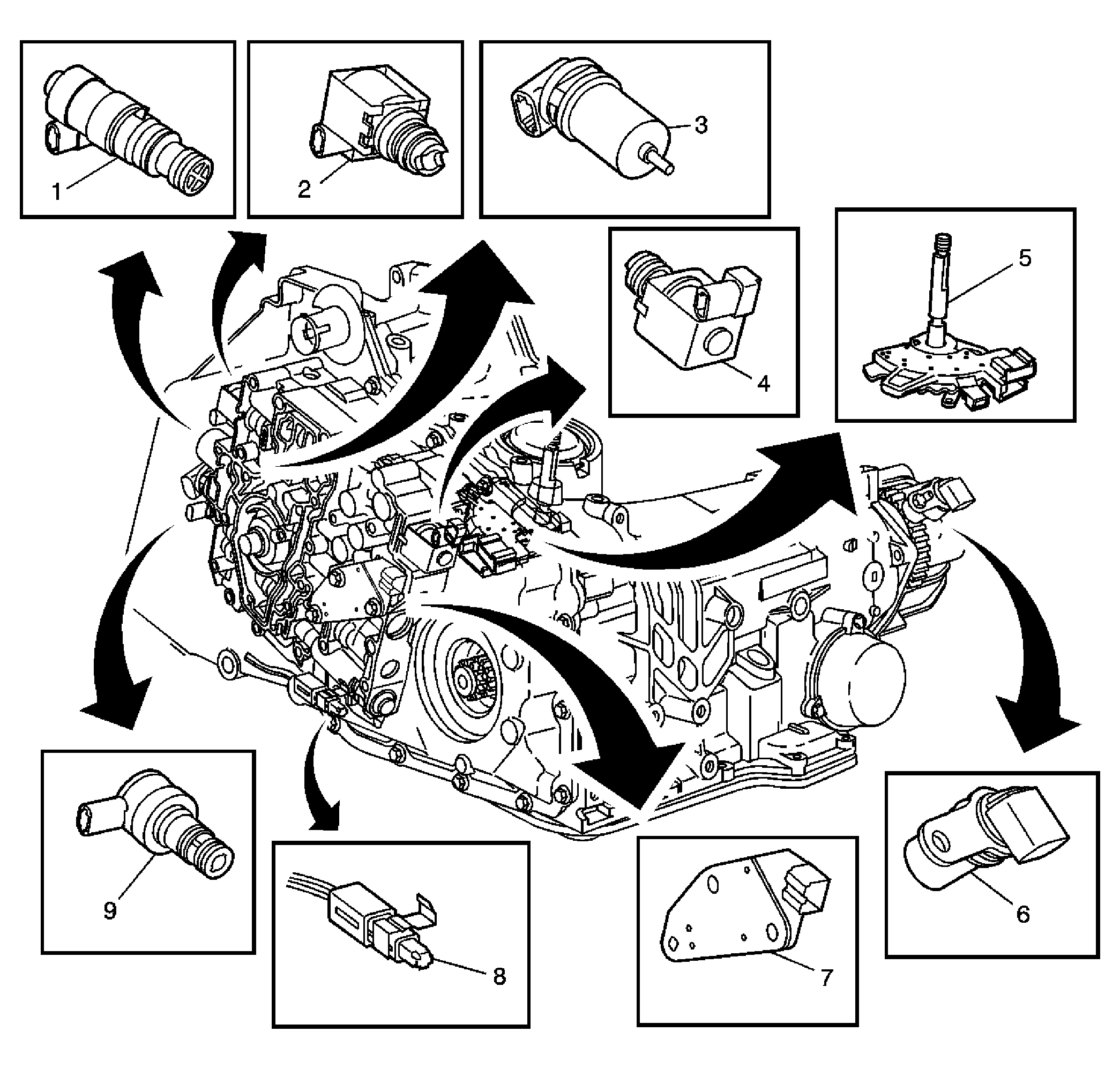

Locating Transaxle Components
Locating Transaxle Components
| Component Name | Callout |
|---|---|
| Pressure Control (PC) Solenoid Valve | 1 |
| 1-2 Shift Solenoid (SS) Valve | 2 |
| Automatic Transmission Input Shaft Speed (ISS) Sensor | 3 |
| 2-3 Shift Solenoid (SS) Valve | 4 |
| Automatic Transmission Internal Mode Switch (IMS) | 5 |
| Vehicle Speed Sensor (VSS) | 6 |
| Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch | 7 |
| Automatic Transmission Fluid Temperature (TFT)Sensor | 8 |
| Torque Converter Clutch (TCC) Solenoid Valve | 9 |
