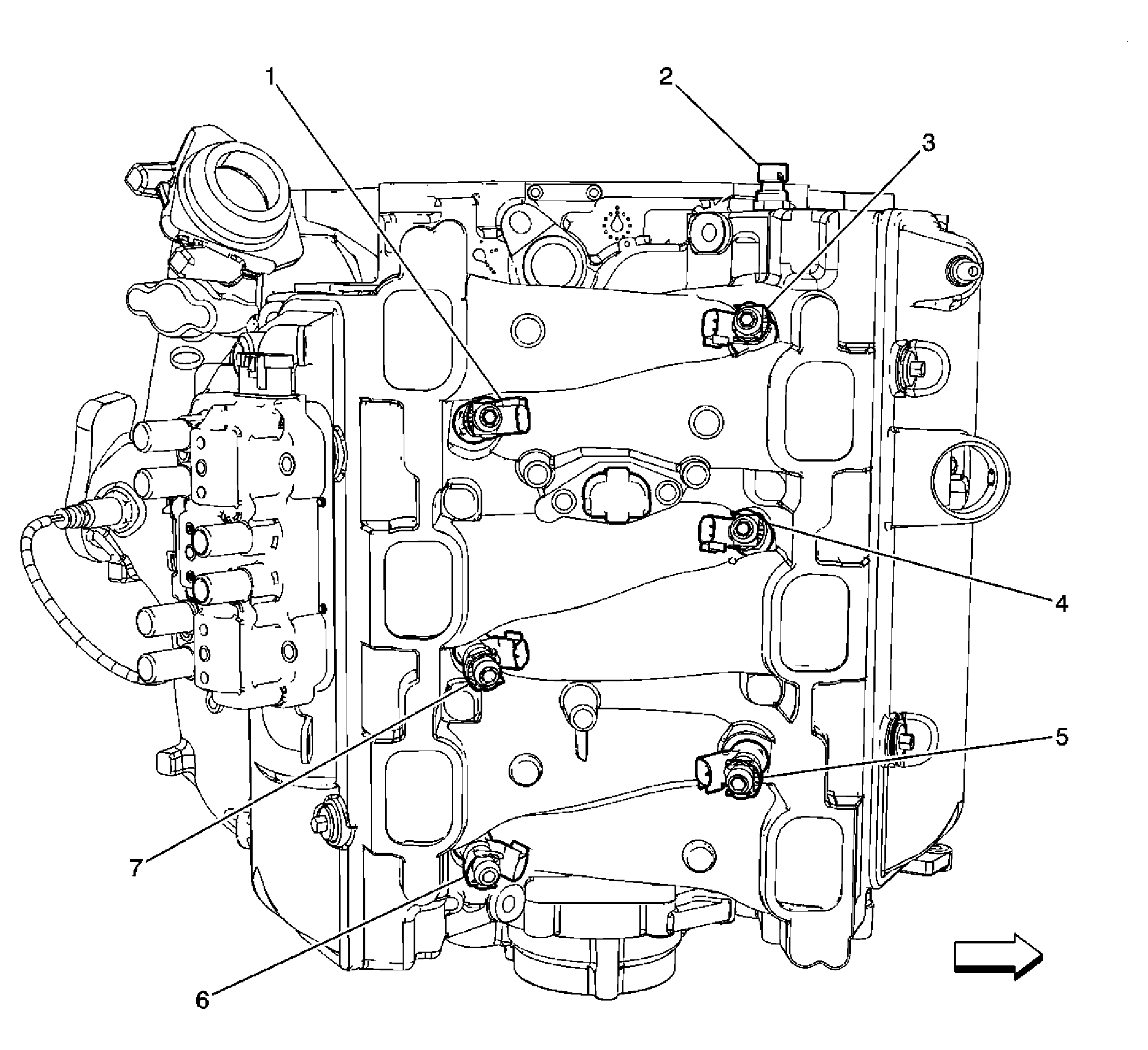

Under the Upper Intake Components
Under the Upper Intake Components
| Component Name |
Callout |
| Fuel Injector 5 |
1 |
| Engine Coolant Temperature (ECT) Sensor |
2 |
| Fuel Injector 6 |
3 |
| Fuel Injector 4 |
4 |
| Fuel Injector 2 |
5 |
| Fuel Injector 1 |
6 |
| Fuel Injector 3 |
7 |
Courtesy of GENERAL MOTORS CORP.
