Power Distribution Schematic 10




Power Distribution Schematics

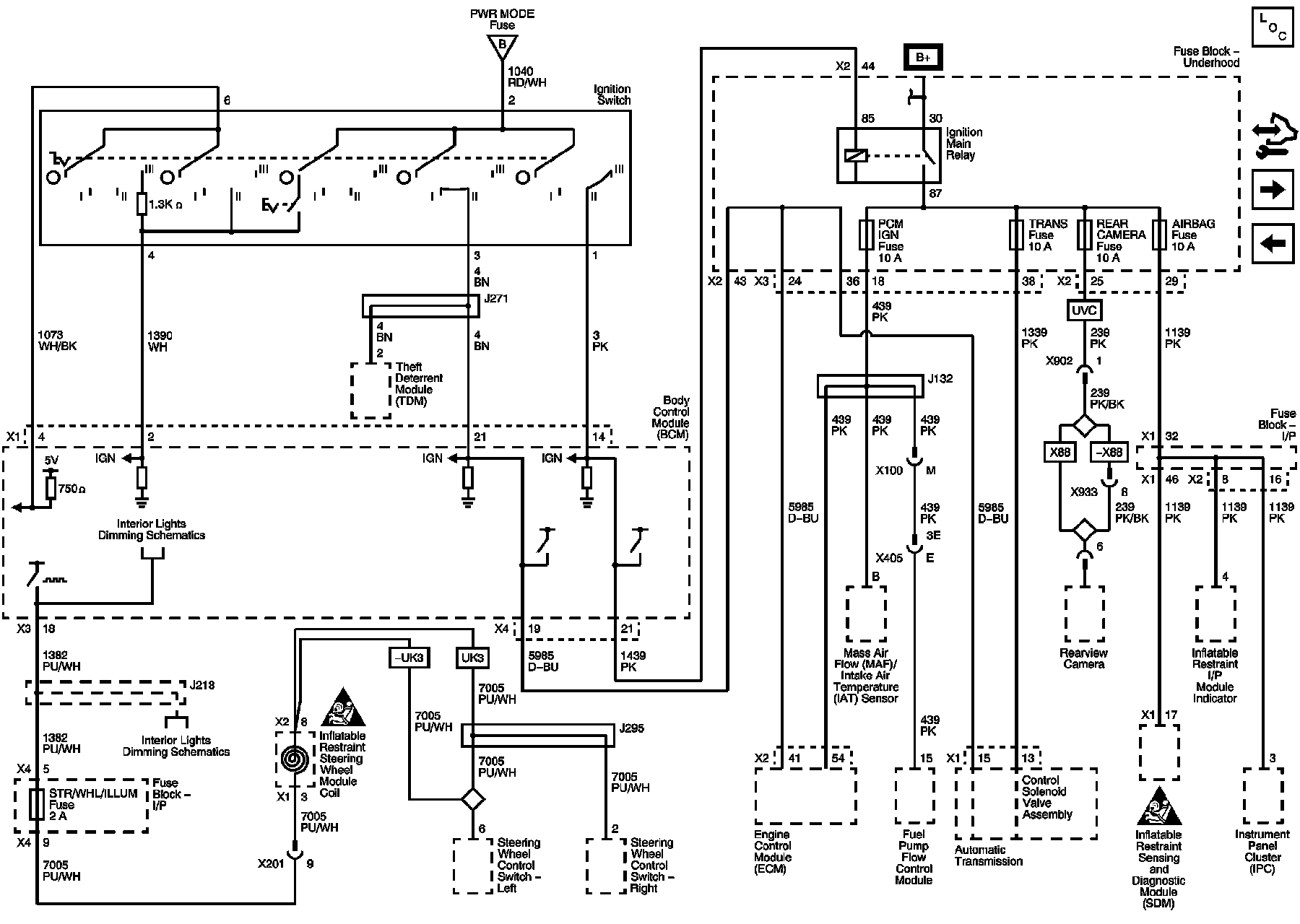

Ignition Switch and AIRBAG, PCM IGN, REAR CAMERA, and TRANS Fuses
