Liftgate Latch Replacement

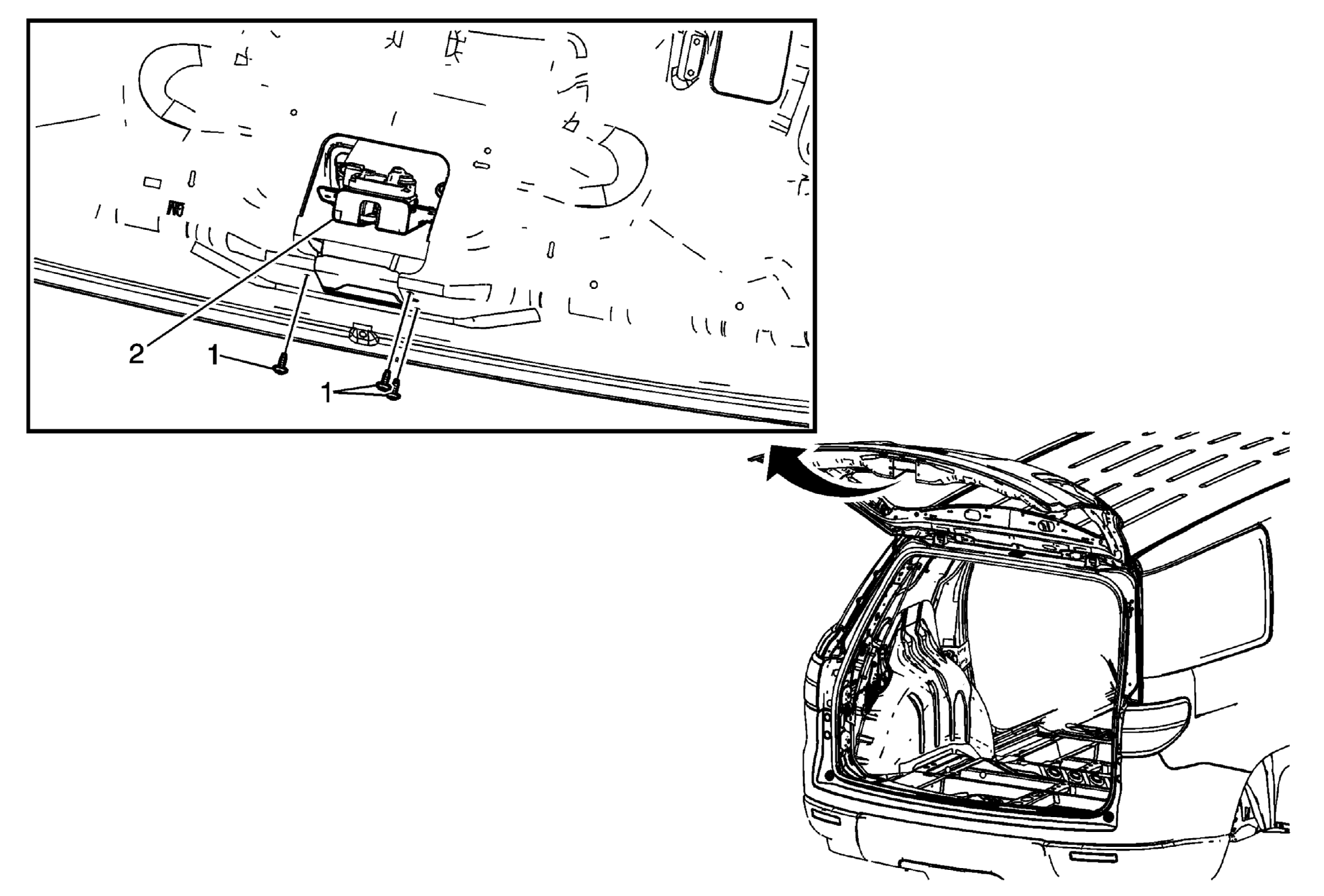

Fig 1: View Of Liftgate Latch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the liftgate trim panel. Refer to Liftgate Trim Panel Replacement (Traverse) , Liftgate Trim Panel Replacement (Enclave) , Liftgate Trim Panel Replacement (Acadia) .
1	Liftgate Latch Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Liftgate Latch Assembly Procedure Disconnect the electrical connector. Remove the plastic tether before installing the liftgate latch. Calibrate the liftgate. Refer to Liftgate Calibration . Adjust the liftgate if needed. Refer to Liftgate Adjustment .

Callout

Component Name

Liftgate Latch Screw (Qty: 3)

CAUTION:

Tighten
9 N.m (80 lb in)

Liftgate Latch Assembly

Procedure
