Liftgate Side Upper Sensor Replacement

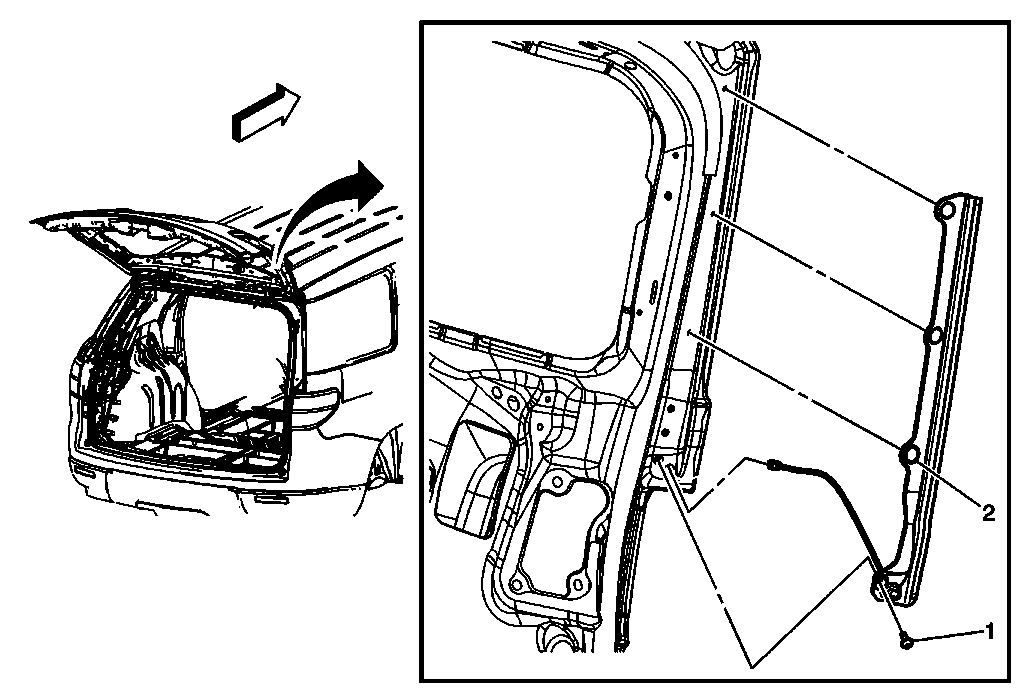

Fig 1: Locating Liftgate Side Upper Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the liftgate trim panel. Refer to Liftgate Trim Panel Replacement (Traverse) , Liftgate Trim Panel Replacement (Enclave) , Liftgate Trim Panel Replacement (Acadia) . Disconnect the electrical connector.
1	Sensor Side Upper Liftgate Retainer (Qty: 4) TIP: The retainers are ONE time use ONLY. They must be replaced after being removed.
2	Sensor Side Upper Liftgate

Callout

Component Name

Preliminary Procedures

Sensor Side Upper Liftgate Retainer (Qty: 4)
TIP: The retainers are ONE time use ONLY. They must be replaced after being removed.

Sensor Side Upper Liftgate
