Installation Procedure

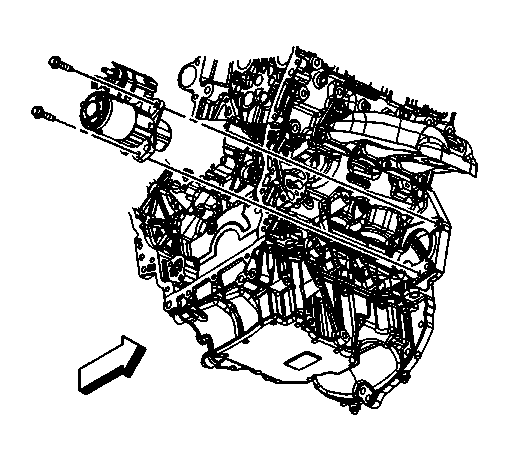

    Fig 1: View Of Starter Bolts & Starter
    GM1861149Courtesy of GENERAL MOTORS CORP.
    CAUTION:

    Refer to Fastener Caution .

  1. Install the starter and bolts.

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

    2. Fig 2: Identifying Engine Wiring Harness Electrical Connector
    GM1860484Courtesy of GENERAL MOTORS CORP.
  2. Connect the engine wiring harness electrical connector (1) to the starter.
    3. Fig 3: View Of Battery Positive Junction Block Cable Clip & Cable Terminal
    GM1861148Courtesy of GENERAL MOTORS CORP.
  3. Install the battery positive junction block cable terminal (2) to the starter.
  4. Install the starter solenoid BAT terminal nut (3).

    Tighten

    Tighten the nut to 25 N.m (18 lb ft).

    5. Fig 4: Identifying Starter Heat Shield Bolt & Shield
    GM1861146Courtesy of GENERAL MOTORS CORP.
  5. Install the starter heat shield and bolt.

    Tighten

    Tighten the bolt to 7 N.m (62 lb in).

  6. Install the left catalytic convertor. Refer to Catalytic Converter Replacement - Left Side .
  7. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
